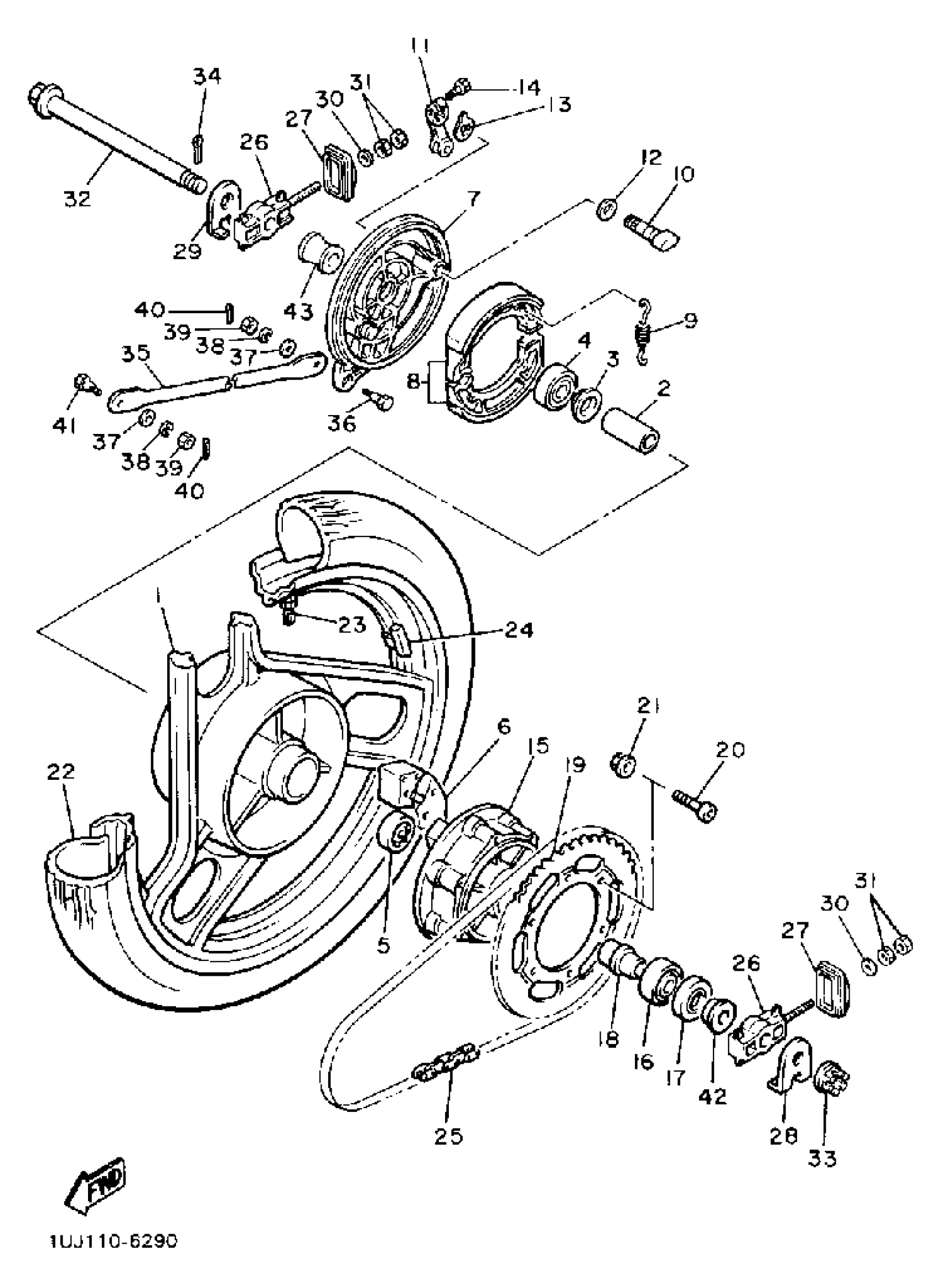

Yamaha YX600UC (RADIAN CA) 1988 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

1UJ-25338-20-8L

Unavailable

2

SPACER

90560-17282-00

Unavailable

3

FLANGE, SPACER

146-25315-00-00

$7.99

4

BEARING(4HM)

93306-30317-00

$39.99

5

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

6

DAMPER

29L-25364-00-00

Unavailable

7

PLATE, BRAKE SHOE

4H7-25321-00-00

Unavailable

8

BRAKE SHOE KIT

3LT-W253E-00-00

Unavailable

9

SPRING, TENSION 2462533300

90507-20002-00

$8.49

10

CAMSHAFT

4H7-25351-00-00

Unavailable

11

LEVER, CAMSHAFT

371-25355-02-00

Unavailable

12

WASHER, PLATE (3X3)

90201-15797-00

$9.49

13

PLATE, INDICATOR

4H7-2533A-02-00

$8.99

14

BOLT, HEXAGON (462)

90101-06291-00

$8.49

15

CLUTCH, HUB

1JK-25366-00-00

Unavailable

16

BEARING(3BC)

93306-30437-00

Unavailable

17

OIL SEAL (29L)

93102-32298-00

Unavailable

18

COLLAR

90387-172J8-00

Unavailable

19

SPROCKET, DRVN 45T (45T)

49A-25445-22-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD (29L

90110-08057-00

Unavailable

21

NUT, SELF-LOCKING

90185-08169-00

Unavailable

22

130/90-16 G528 BS

94113-161J2-00

Unavailable

23

VALVE, RIM(2GH)

93900-00030-00

Unavailable

24

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

24

BALANCER, WHEEL

5MT-25398-10-00

Unavailable

24

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

25

DID 50HDL4

94581-10104-00

Unavailable

26

PULLER, CHAIN 1

1JK-25388-00-00

Unavailable

27

END 1

51L-22174-00-00

Unavailable

28

PLATE, INDICATOR

1JK-2533A-00-00

Unavailable

29

PLATE, INDICATOR 2

1JK-2533E-00-00

Unavailable

30

.. WASHER, PLATE

92990-08600-00

Unavailable

31

NUT(6L2)

95333-08600-00

Unavailable

32

AXLE, WHEEL

1UJ-25381-00-00

Unavailable

33

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

34

PIN, COTTER

91490-30030-00

Unavailable

35

BAR, TENSION

4G0-25371-00-00

Unavailable

36

BOLT (537 TENSION BAR)

90109-08406-00

Unavailable

37

.. WASHER, PLATE

92990-08600-00

Unavailable

38

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

39

. NUT

95380-08700-00

Unavailable

40

PIN, COTTER

91490-20025-00

Unavailable

41

BOLT (183-25378-00)

90109-08368-00

Unavailable

42

COLLAR

90387-173L6-00

Unavailable

43

COLLAR

90387-172E4-00

Unavailable
