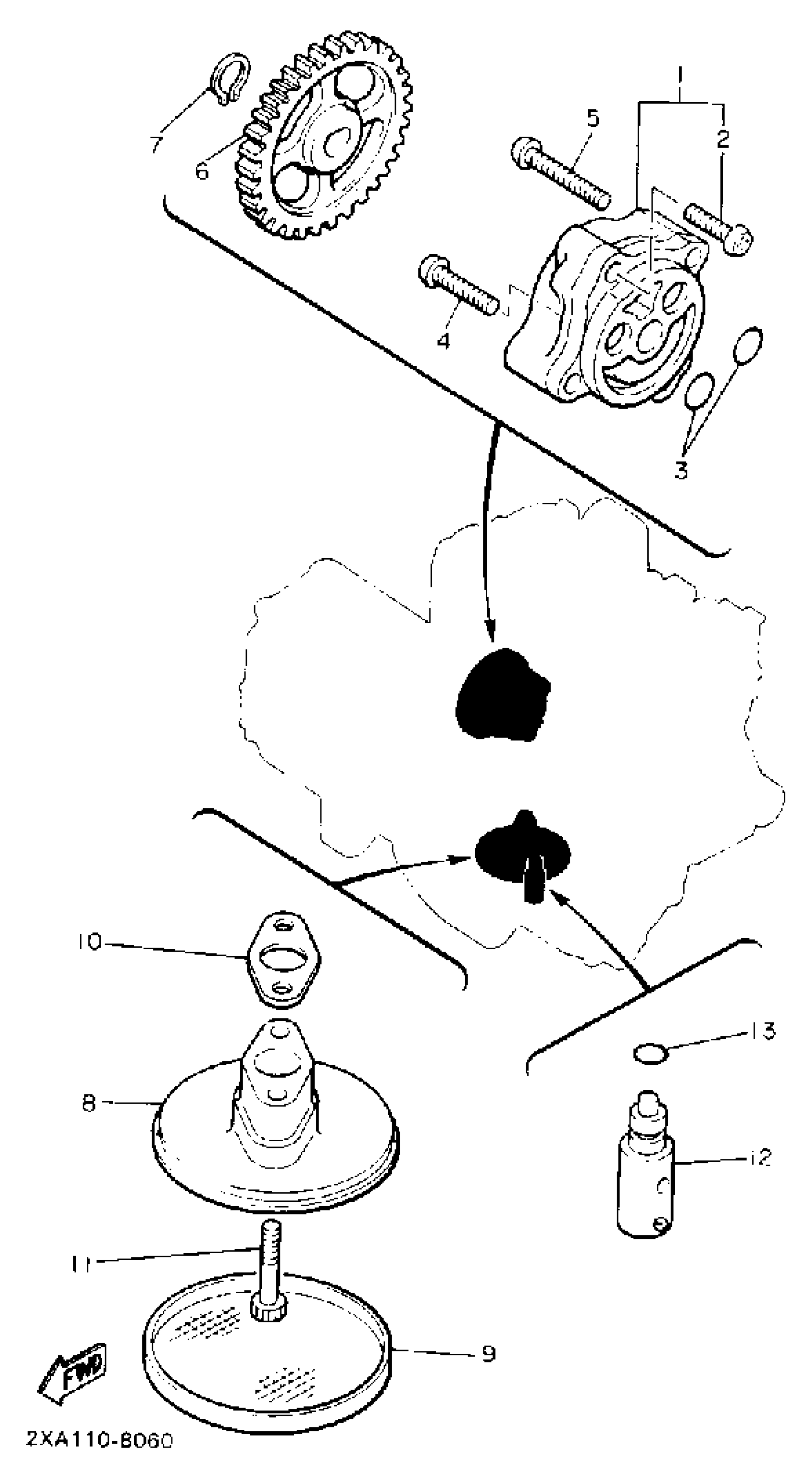

Yamaha YX600UC (RADIAN CA) 1988 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

33M-13300-00-00

Unavailable

2

SCREW, PAN

98507-06014-00

$8.49

3

O-RING (2H7)

93210-13361-00

$5.60

4

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

5

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

6

GEAR, PUMP DRIVEN

4EB-13325-00-00

Unavailable

7

CIRCLIP(24H)

99009-11400-00

$8.49

8

HOUSING, STRAINER

(4G0-13412-00-00)

Unavailable

9

STRAINER, OIL

4H7-13411-02-00

Unavailable

10

SEAL, OIL STRAINER

3YX-13415-00-00

Unavailable

11

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

12

RELIEF VALVE ASSY

11H-13490-00-00

Unavailable

13

O-RING (611)

93210-10096-00

$3.76
