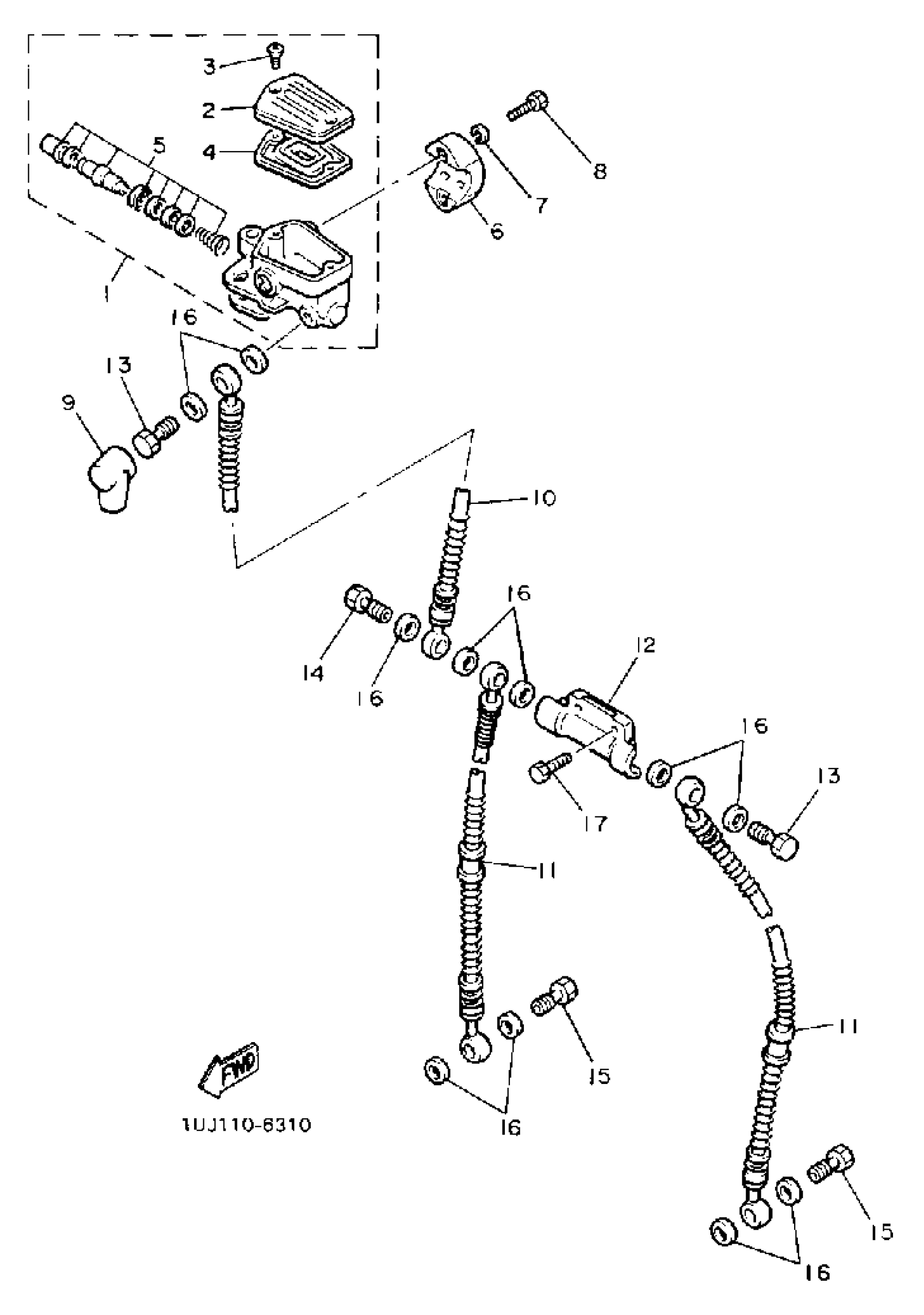

Yamaha YX600UC (RADIAN CA) 1988 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER ASSY

3HE-2583T-02-00

Unavailable

CAP, RESERVOIR

3HE-25852-01-00

$29.99

SCREW, FLAT

98707-04012-00

$2.18

DIAPHRAGM, RESERVOIR

36Y-25854-00-00

$35.99

CYLINDER KIT, MASTER

36Y-W0041-00-00

Unavailable

BRACKET, MASTER CYLINDER

36Y-25867-00-00

$24.99

WASHER, SPRING

92907-06100-00

$4.25

BOLT,SOCKET

91317-06025-00

$5.60

BOOT, MASTER CYLINDER

306-25862-00-00

$48.99

HOSE,BRAKE 1

99999-02545-00

Unavailable

HOSE,BRAKE 2

99999-02546-00

Unavailable

JOINT

1AA-25885-00-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

$11.49

BOLT, UNION

90401-10038-00

$12.49

BOLT, UNION(3GM)

90401-10159-00

$11.49

WASHER, PLATE(481)

90201-10118-00

Unavailable

BOLT,SOCKET HEAD

91314-06020-00

Unavailable
