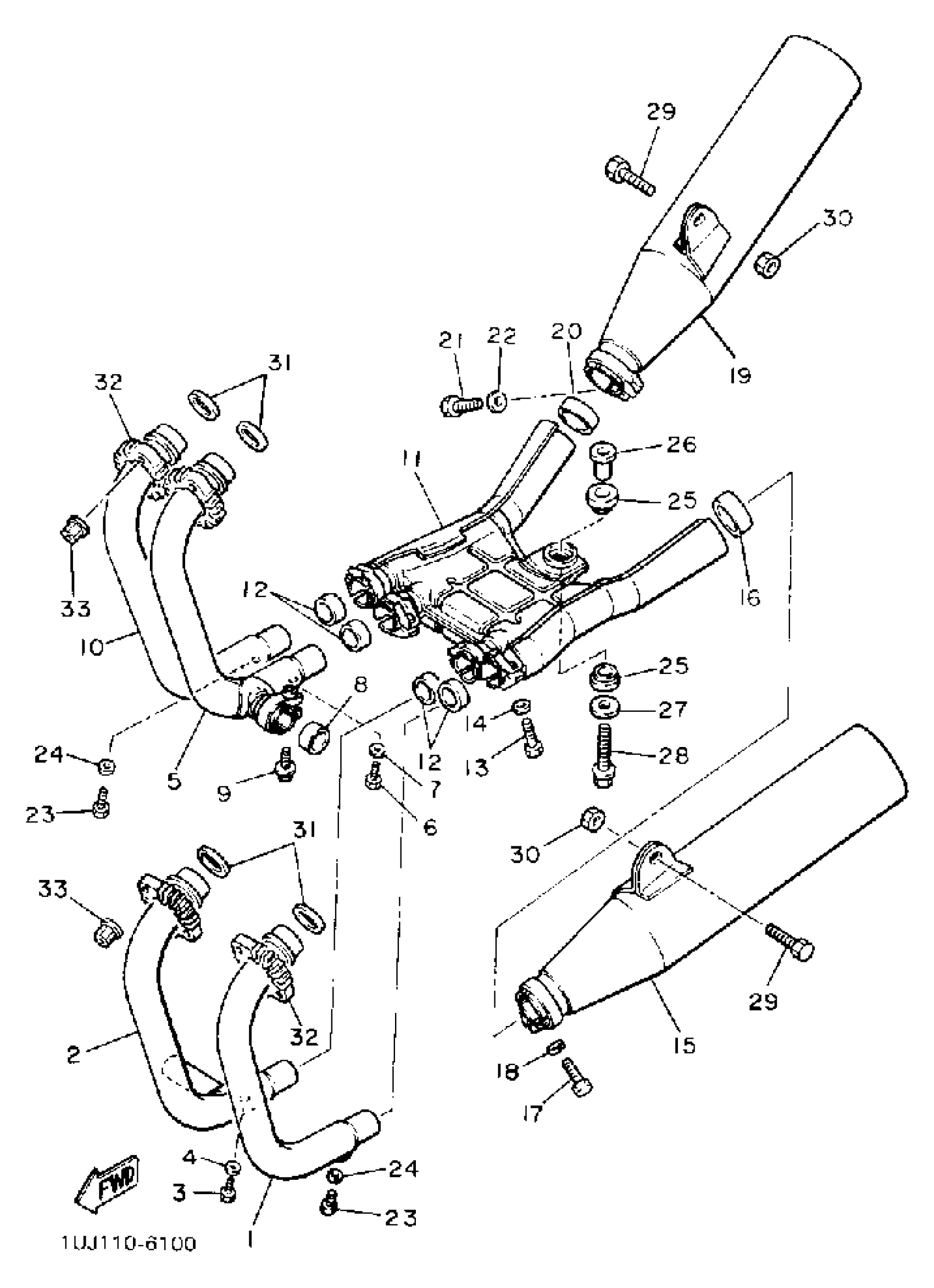

Yamaha YX600UC (RADIAN CA) 1988 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST L

4G0-14611-00-00

Unavailable

2

PIPE, EXHAUST R

1UJ-14621-00-00

Unavailable

3

BOLT (11T)

90101-06576-00

$8.49

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

PIPE, EXHAUST 3

1UJ-14631-00-00

Unavailable

6

BOLT (11T)

90101-06576-00

$8.49

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

GASKET, MUFFLER

4FU-14714-10-00

$19.99

9

BOLT, FLANGE

95817-08035-00

$9.49

10

PIPE, EXHAUST 4

4G0-14641-00-00

Unavailable

11

JOINT, EXHAUST L

4G0-14615-02-00

Unavailable

12

GASKET, MUFFLER

4DN-14714-01-00

$65.99

13

BOLT, HEXAGON

97017-08020-00

$9.49

14

.. WASHER, PLATE

92990-08600-00

Unavailable

15

MUFFLER L

1UJ-14711-00-00

Unavailable

16

GASKET, EXHAUST 4

3JJ-14653-00-00

Unavailable

17

BOLT, HEXAGON

97017-08025-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

Unavailable

19

MUFFLER R

1UJ-14721-00-00

Unavailable

20

GASKET, EXHAUST 4

3JJ-14653-00-00

Unavailable

21

BOLT, HEXAGON

97017-08025-00

Unavailable

22

.. WASHER, PLATE

92990-08600-00

Unavailable

23

BOLT (11T)

90101-06576-00

$8.49

24

WASHER, PLAIN (646)

92990-06600-00

$2.80

25

DAMPER, MUFFLER

36Y-14747-00-00

Unavailable

26

COLLAR

4G0-14638-00-00

Unavailable

27

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

28

BOLT, FLANGE

95814-10040-00

Unavailable

29

BOLT,SOCKET

91314-10025-00

Unavailable

30

NUT, SPEC''L SHAPE

90179-10276-00

Unavailable

31

GASKET, EXHAUST PIPE

4BR-14613-00-00

Unavailable

32

NUT, RING

4H7-14612-00-00

Unavailable

33

NUT (1AE)

90179-06500-00

Unavailable
