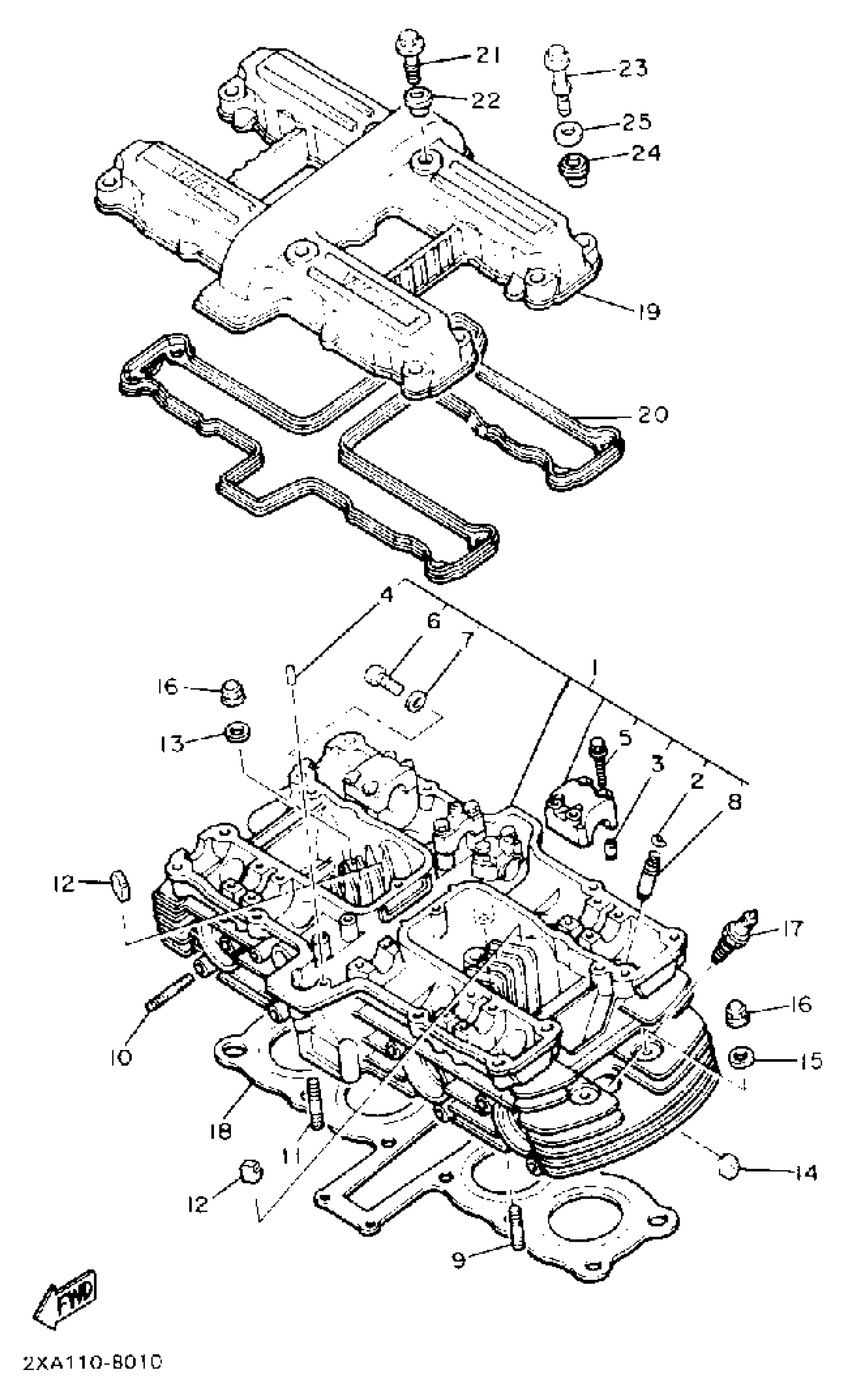

Yamaha YX600UC (RADIAN CA) 1988 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

49A-11101-00-00

Unavailable

2

CIRCLIP (4G0)

93440-10085-00

$8.49

3

PIN, DOWEL(3XW)

91808-16023-00

$8.49

4

PIN,DOWEL (137)

93604-14012-00

$1.81

5

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

6

SCREW

90153-06029-00

$10.49

7

GASKET 256113960000

90430-06014-00

Unavailable

8

GUIDE, INTAKE VALVE

4G0-11133-11-00

$49.99

9

BOLT

50M-14651-00-00

Unavailable

10

BOLT, STUD(1FW)

90116-06466-00

$4.51

11

BOLT, STUD(1FW)

90116-06466-00

$4.51

12

ABSORBER

434-11161-00-00

Unavailable

13

WASHER, PLATE (33N)

90201-094G1-00

$9.49

14

ABSORBER 1

4H7-11161-00-00

$3.48

15

WASHER, PLATE

90201-080L7-00

$4.82

16

NUT, CROWN (4G0)

90176-08026-00

Unavailable

17

D8EA NGK SPLUG 10PK

D8E-A0000-00-00

Unavailable

18

GASKET, CYLINDER HEAD 1

4BR-11181-00-00

Unavailable

19

COVER, CYLINDER. HEAD 1

1UJ-11191-01-00

Unavailable

20

GASKET, CYLINDER HEAD ASSY

3KM-11193-00-00

Unavailable

21

BOLT

90109-06585-00

Unavailable

22

RUBBER, MOUNT 1

4G0-1111G-00-00

Unavailable

23

BOLT

90109-06584-00

Unavailable

24

GROMMET (4G0)

90480-11287-00

Unavailable

25

WASHER, SPEC''L SHAP

90209-10199-00

Unavailable
