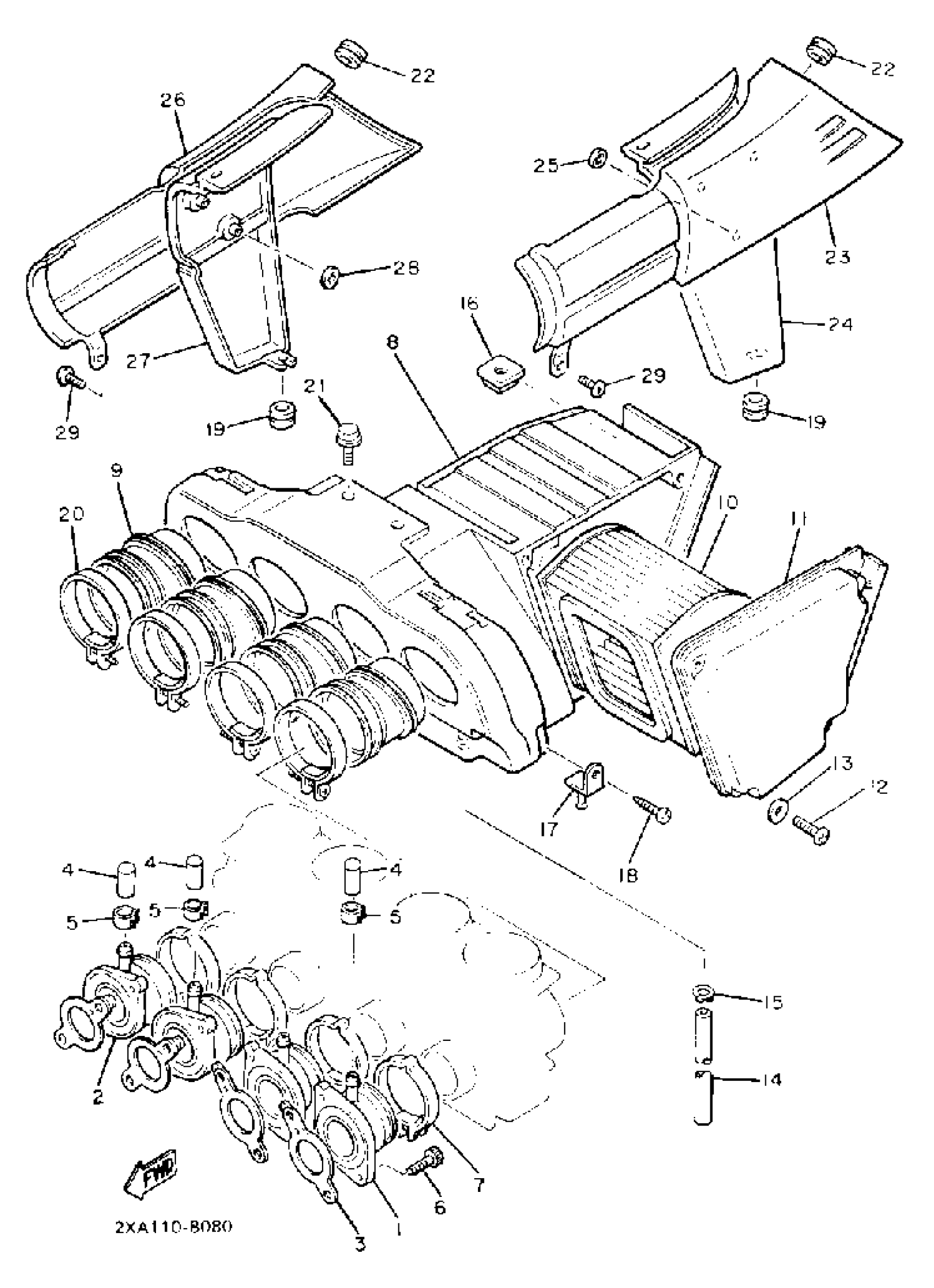

Yamaha YX600UC (RADIAN CA) 1988 AIR FILTER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

33M-13586-01-00

Unavailable

2

JOINT, CARBURETOR 2

33M-13596-01-00

Unavailable

3

GASKET, MANIFOLD

3KM-13556-00-00

Unavailable

4

PLUG, BLIND

16G-13569-00-00

$7.99

5

CLIP (3G0)

90467-10039-00

$9.49

6

BOLT,SOCKET

91317-06020-00

Unavailable

7

BAND

1UJ-13575-00-00

Unavailable

8

AIR CLNR CASE ASSEMBLY

5K5-14401-01-00

Unavailable

9

JOINT, AIR CLEANER 1

4G0-14453-00-00

Unavailable

10

ELEMENT, AIR CLEANER

4U8-14451-00-00

$49.99

11

CAP, CLEANER CASE 1

4U8-14412-00-00

Unavailable

12

SCREW, PAN HEAD(4MY)

98507-05025-00

$8.49

13

WASHER(1RW)

92907-05600-00

$3.78

14

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$10.49

15

CLIP

90467-090A2-00

$4.41

16

PLATE, CLNR CS FTNG

4H7-14484-00-00

Unavailable

17

STAY, SIDE COVER 2

5K5-2174E-00-00

Unavailable

18

SCREW, TAPPING (97702-40508-00)

97701-40508-00

Unavailable

19

DAMPER, SIDE COVER (437)

90480-12053-00

Unavailable

20

HOSE CLAMP ASSY

90450-56002-00

Unavailable

21

BOLT, WITH WASHER (4L6)

90119-06029-00

Unavailable

22

GROMMET (17J)

90480-10334-00

Unavailable

23

COVER, CLNR CASE 1

1UJ-1441A-00-00

Unavailable

24

COVER, CLNR CASE 2

1UJ-1441E-00-00

Unavailable

25

NUT, SPRING(1FK)

90183-06008-00

Unavailable

26

COVER, CLNR CASE 3

1UJ-1442A-00-00

Unavailable

27

COVER, CLNR CASE 4

1UJ-1442E-00-00

Unavailable

28

NUT, SPRING(1FK)

90183-06008-00

Unavailable

29

SCREW, BINDING(2EK)

90154-05042-00

Unavailable
