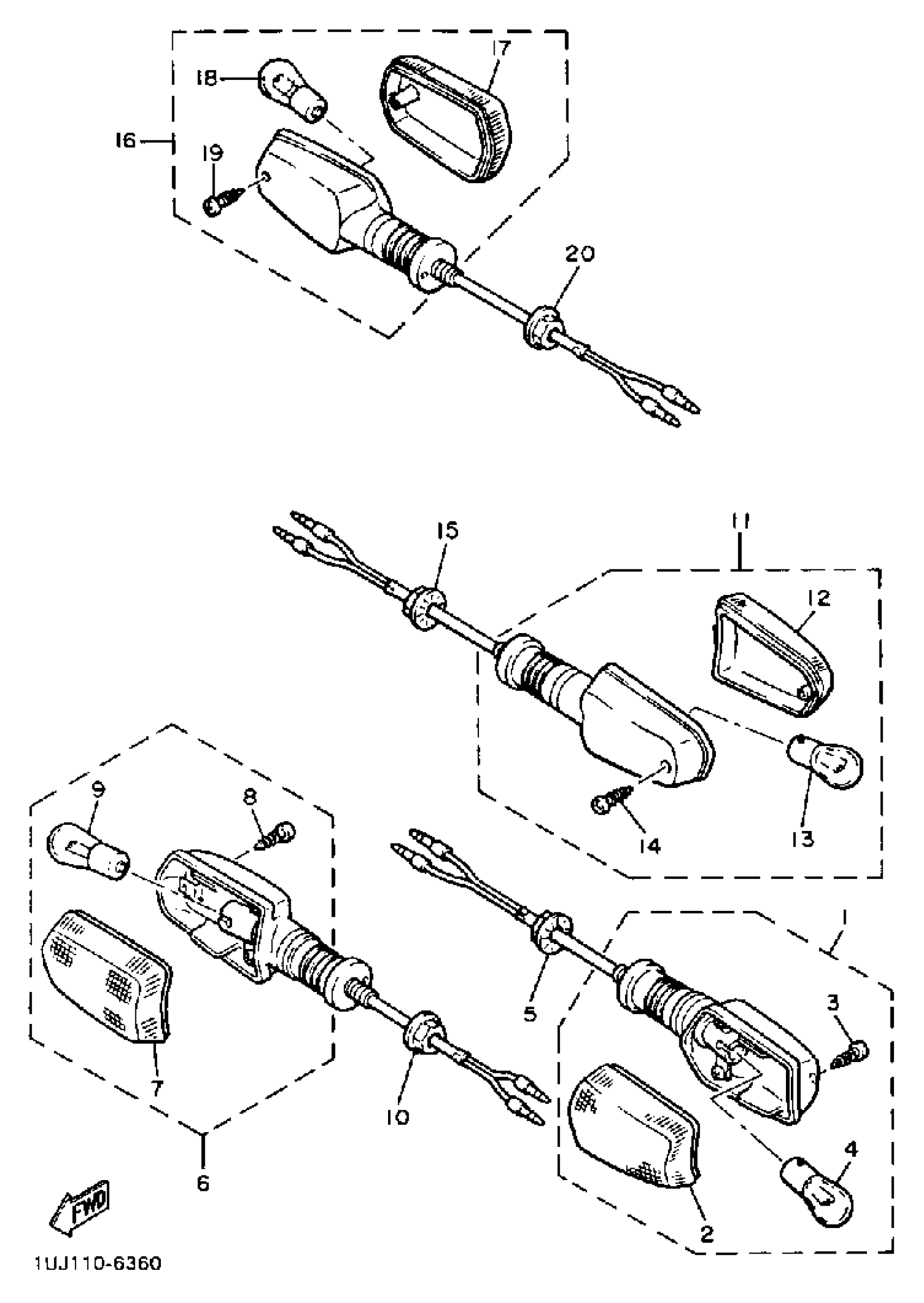

Yamaha YX600TC (RADIAN CA) 1987 TURNSIGNAL Diagram

#

Description
Price

1

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

$113.29

2

LENS, FLASHER

51L-83332-01-00

Unavailable

3

SCREW, PAN TAP.2

97707-40520-00

$6.79

4

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

5

NUT(3GG)

90179-12588-00

$5.36

6

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

Unavailable

7

LENS, FLASHER 2

51L-83342-01-00

$7.38

8

SCREW, PAN TAP.2

97707-40520-00

$6.79

9

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

10

NUT(3GG)

90179-12588-00

$5.36

11

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

Unavailable

12

LENS, FLASHER 2

51L-83342-01-00

$7.38

13

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

14

SCREW, PAN TAP.2

97707-40520-00

$6.79

15

NUT(3GG)

90179-12588-00

$5.36

16

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

$113.29

17

LENS, FLASHER

51L-83332-01-00

Unavailable

18

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

19

SCREW, PAN TAP.2

97707-40520-00

$6.79

20

NUT(3GG)

90179-12588-00

$5.36
