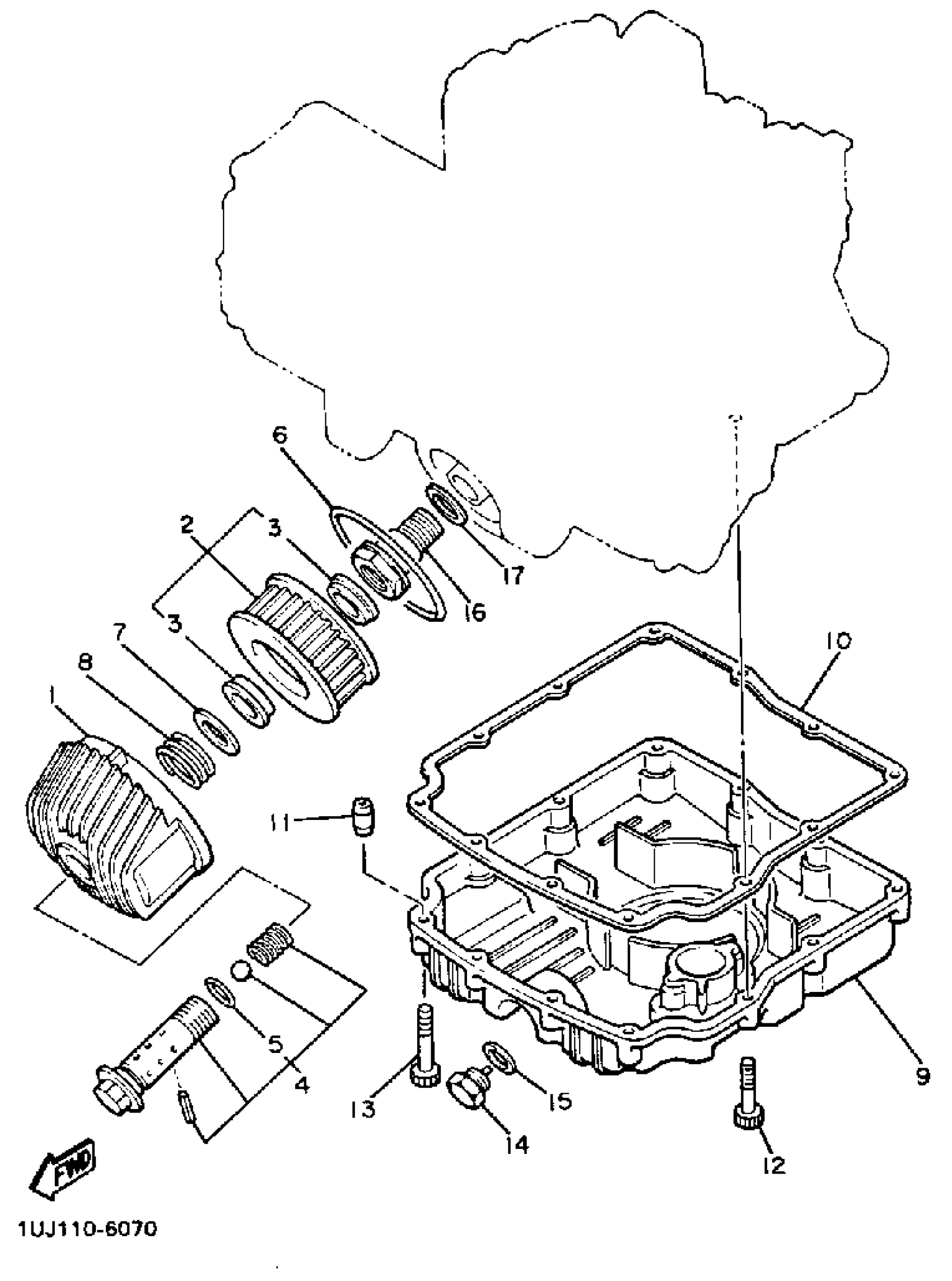

Yamaha YX600SC (RADIAN CA) 1986 OIL FILTER Diagram

#

Description
Price

1

COVER, OIL ELEMENT

4V8-13447-00-00

Unavailable

2

UNAVAILABLE IN PRICE BOOK (1L9-13440-91)

1L9-13440-11-00

Unavailable

3

GROMMET (1L9)

90480-23193-00

Unavailable

4

BY-PASS VALVE ASSY

1L9-13340-01-00

Unavailable

5

O-RING (26H)

93210-16629-00

$7.49

6

O-RING(1KF)

93210-87723-00

Unavailable

7

WASHER, PLATE (1L9)

90201-21608-00

$8.49

8

SPRING, COMPRESSION (1L9)

90501-20422-00

$8.49

9

COVER,STRAINER

4G0-13417-03-00

Unavailable

10

GASKET, STRAINER COVER

4BR-13414-00-00

Unavailable

11

PIN, DOWEL(3XW)

91808-16023-00

$8.49

12

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

13

BOLT,SOCKET

91317-06040-00

$3.76

14

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

15

GASKET

214-11198-01-00

$3.17

16

BOLT, UNION

90401-20089-00

Unavailable

17

WASHER, PLATE (888)

90201-20279-00

Unavailable
