1986 Yamaha Radian CA (YX600SC) Front Fork Diagram

← All diagrams

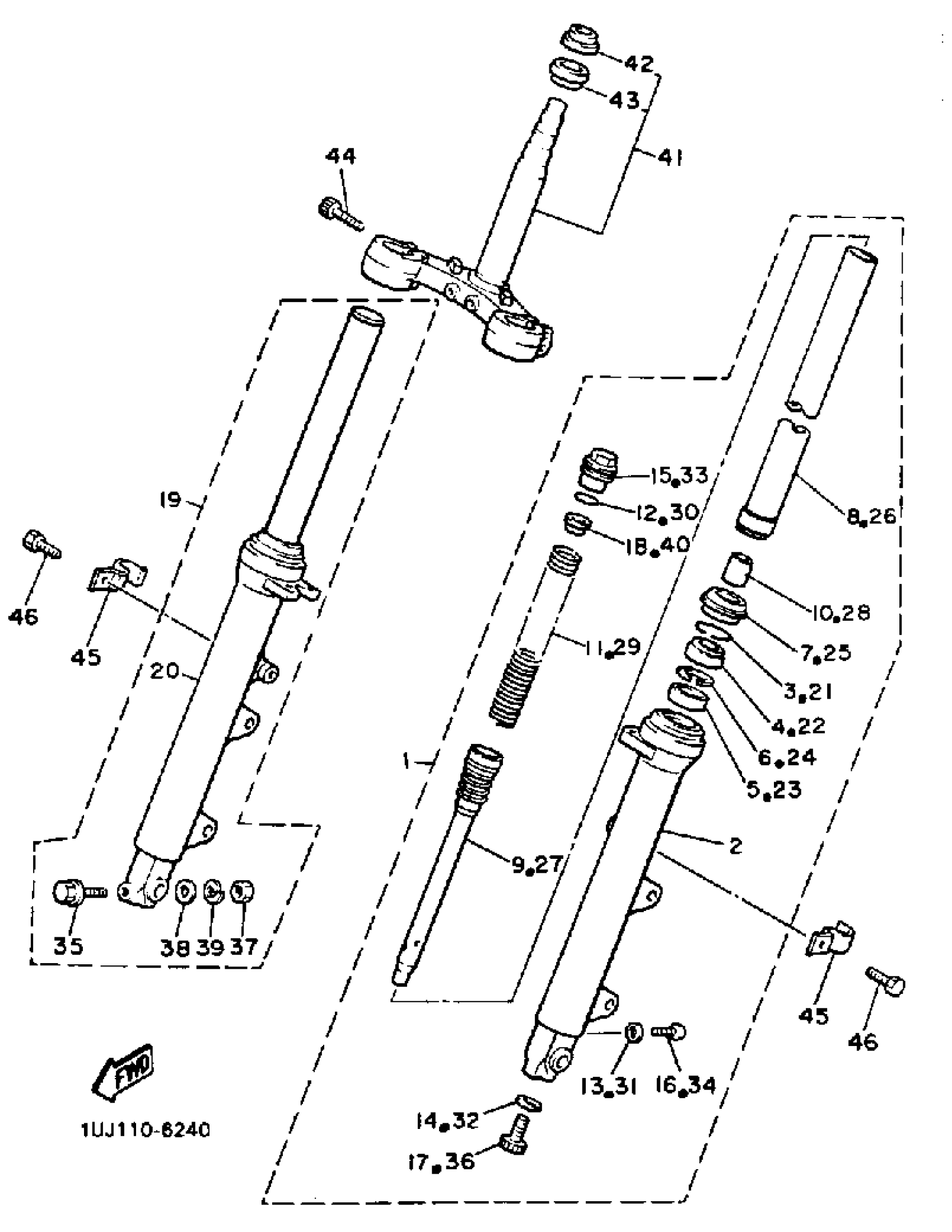

Find the part on the Front Fork diagram for your 1986 Yamaha Radian CA (YX600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Radian CA (YX600SC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L (L.H)

1UJ-23102-00-00

1
Out of stock

2

. TUBE, OUTER 1

1JK-23126-00-00

1
Out of stock

3

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

4

OIL SEAL

4ES-23145-00-00

1

$18.57

In stock

5

METAL, SLIDE 1

30X-23125-00-00

1
Out of stock

6

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

7

SEAL, DUST

33M-23144-00-00

1

$24.09

In stock

8

. INNER TUBE 1

1UJ-23110-00-00

1
Out of stock

9

. CYLINDER, FRTFRK

1UJ-23170-00-00

1
Out of stock

10

. SPINDLE, TAPER

39K-23173-00-00

1
Out of stock

11

. SPRING, FRONT FORK

1UJ-23141-00-00

1
Out of stock

12

O-RING

1W1-23114-L0-00

1
Out of stock

13

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

14

GASKET

509-23158-L0-00

1

$14.34

In stock

15

. BOLT, CAP

53Y-23111-00-00

1
Out of stock

16

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

17

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

18

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

19

FRONT FORK ASSEMBLY R (R.H)

1UJ-23103-00-00

1
Out of stock

20

. TUBE, OUTER 2

1JK-23136-00-00

1
Out of stock

21

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

22

OIL SEAL

4ES-23145-00-00

1

$18.57

In stock

23

METAL, SLIDE 1

30X-23125-00-00

1
Out of stock

24

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

25

SEAL, DUST

33M-23144-00-00

1

$24.09

In stock

26

. INNER TUBE 1

1UJ-23110-00-00

1
Out of stock

27

. CYLINDER, FRTFRK

1UJ-23170-00-00

1
Out of stock

28

. SPINDLE, TAPER

39K-23173-00-00

1
Out of stock

29

. SPRING, FRONT FORK

1UJ-23141-00-00

1
Out of stock

30

O-RING

1W1-23114-L0-00

1
Out of stock

31

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

32

GASKET

509-23158-L0-00

1

$14.34

In stock

33

. BOLT, CAP

53Y-23111-00-00

1
Out of stock

34

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

35

. BOLT, AXLE HOLDER

1UJ-23128-00-00

1
Out of stock

36

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

37

NUT(6L2)

95333-08600-00

—

$3.20

In stock

38

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

39

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

40

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

41

UNDER BRACKET

1UJ-23340-00-00

1
Out of stock

42

RACE, BALL 1

B6E-23411-00-00

—

$7.02

In stock

43

SEAL, DUST

164-23462-00-00

—

$6.42

In stock

44

BOLT,SOCKET

91314-08030-00

—

$2.29

In stock

45

PLATE 2

1JK-21524-00-00

1
Out of stock

46

BOLT,SOCKET HEAD

91314-06012-00

—

$6.68

In stock
