1990 Yamaha Radian CA (YX600AC) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1990 Yamaha Radian CA (YX600AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

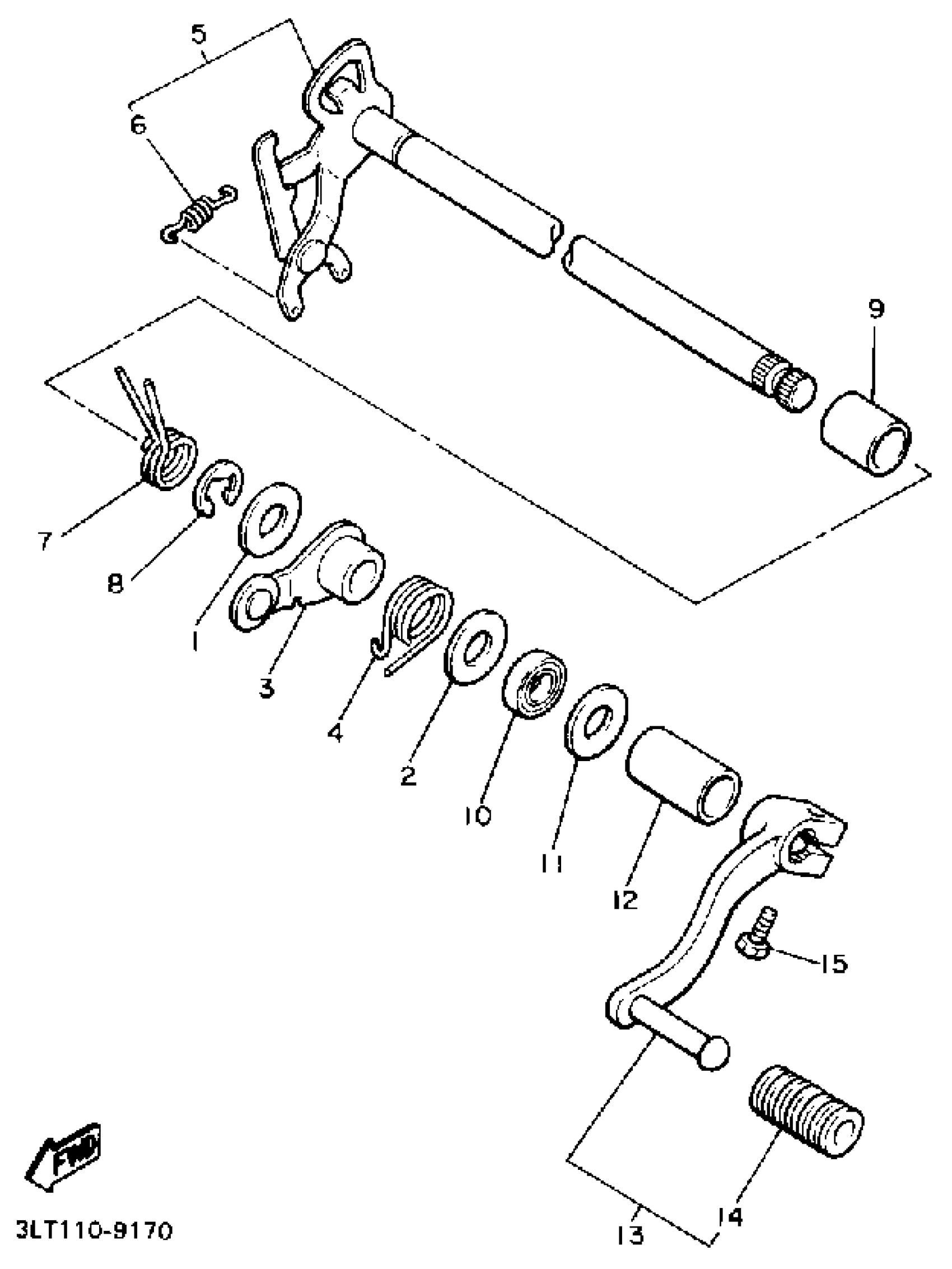

1990 Yamaha Radian CA (YX600AC) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WASHER

90201-12588-00

1
Out of stock

2

WASHER, PLATE (4N0)

90201-126A7-00

1
Out of stock

3

STOPPER LEVER ASSY

4G0-18140-00-00

—
Out of stock

4

SPRING, TORSION

90508-29640-00

1
Out of stock

5

SHIFT LEVER ASSEMBLY

4G0-18120-01-00

1
Out of stock

6

SPRING, TENSION (4H7)

90506-08227-00

1
Out of stock

7

. SPRING, TORSION

90508-32534-00

1
Out of stock

8

CIRCLIP

99006-10600-00

1
Out of stock

9

COLLAR

90387-12033-00

1
Out of stock

10

SEAL, OIL (30X)

93102-12321-00

1
Out of stock

11

WASHER, PLATE (353)

90201-12575-00

1
Out of stock

12

COLLAR (4G0)

90387-125A8-00

1
Out of stock

13

SHIFT PEDAL ASSEMBLY

3LT-18110-00-00

1
Out of stock

14

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

15

BOLT, HEXAGON

97017-06020-00

1
Out of stock
← Shift Cam Fork Transmission →
