1990 Yamaha Radian CA (YX600AC) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 1990 Yamaha Radian CA (YX600AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

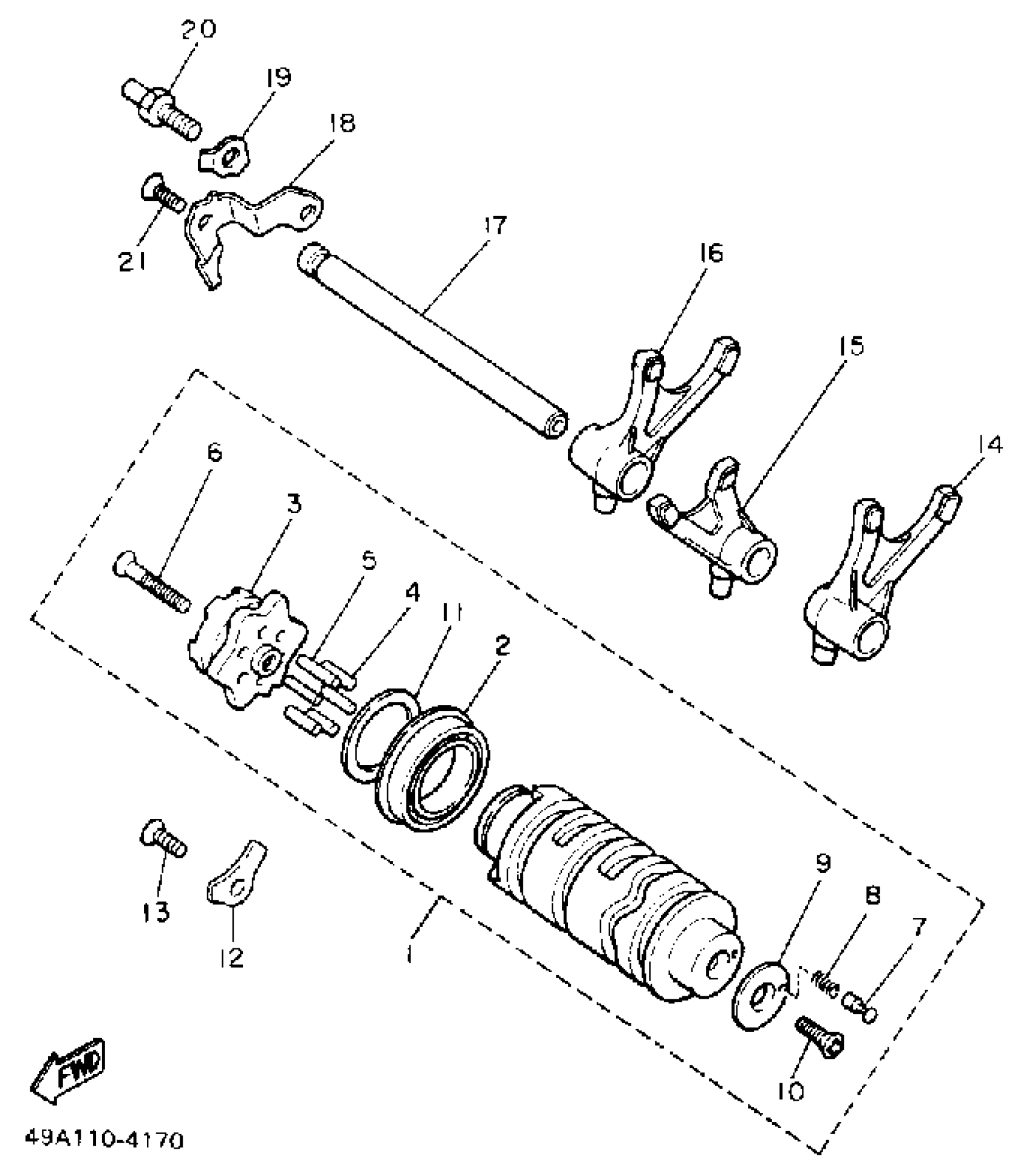

1990 Yamaha Radian CA (YX600AC) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASY

49A-18540-01-00

1
Out of stock

2

BEARING (5K5)

93306-90501-00

1
Out of stock

3

SEGMENT

(49A-18185-00-00)

1
Out of stock

4

PIN,DOWEL (603)

93604-10011-00

1

$5.10

In stock

5

PIN, DOWEL (409)

93604-16092-00

1

$1.94

In stock

6

SCREW, COUNTERSUNK (5H0)

90151-06013-00

1

$6.91

In stock

7

POINT, NEUTRAL

4UN-18542-00-00

1

$8.44

In stock

8

1

$6.17

In stock

9

PLATE, SIDE 2

278-18566-00-00

1
Out of stock

10

SCREW, FLAT

98707-05016-00

1

$5.60

In stock

11

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

12

PLATE, BEARING COVER

49A-15383-00-00

1
Out of stock

13

SCREW, FLAT

98707-06012-00

1

$6.18

In stock

14

FORK, SHIFT 1

4BR-18511-00-00

—
Out of stock

15

FORK, SHIFT 2

4BR-18512-00-00

—
Out of stock

16

FORK, SHIFT 3

4BR-18513-00-00

—
Out of stock

17

BAR, SHIFT FORK GUIDE 1

4BR-18531-00-00

—
Out of stock

18

STOPPER, SHIFT BAR

49A-18536-00-00

1
Out of stock

19

WASHER, LOCK(1UY)

90215-08260-00

—

$6.45

In stock

20

STOPPER, SCREW

5VK-18127-00-00

—

$10.89

In stock

21

SCREW, FLAT

98707-06014-00

—
Out of stock
