Description

Price

1

COVER, OIL ELEMENT

4V8-13447-00-00

Unavailable

2

ELEMENT, OIL CLEANER

1L9-13441-11-00

$9.99

3

GROMMET (1L9)

90480-23193-00

Unavailable

3

GROMMET (1L9)

90480-23193-00

Unavailable

4

BY-PASS VALVE ASSY

1L9-13340-01-00

Unavailable

5

O-RING (26H)

93210-16629-00

$7.49

6

O-RING(1KF)

93210-87723-00

Unavailable

7

WASHER, PLATE (1L9)

90201-21608-00

$8.49

8

SPRING, COMPRESSION (1L9)

90501-20422-00

$8.49

9

COVER, STRAINER

(4G0-13417-03-00)

Unavailable

10

GASKET, STRAINER COVER

4BR-13414-00-00

Unavailable

11

PIN, DOWEL(3XW)

91808-16023-00

$8.49

12

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

13

BOLT,SOCKET

91317-06040-00

$3.76

14

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

15

SCREW, BIND(2TV)

98980-06008-00

Unavailable

16

GASKET

214-11198-01-00

Unavailable

17

BOLT, UNION

90401-20089-00

Unavailable

18

WASHER, PLATE (888)

90201-20279-00

Unavailable

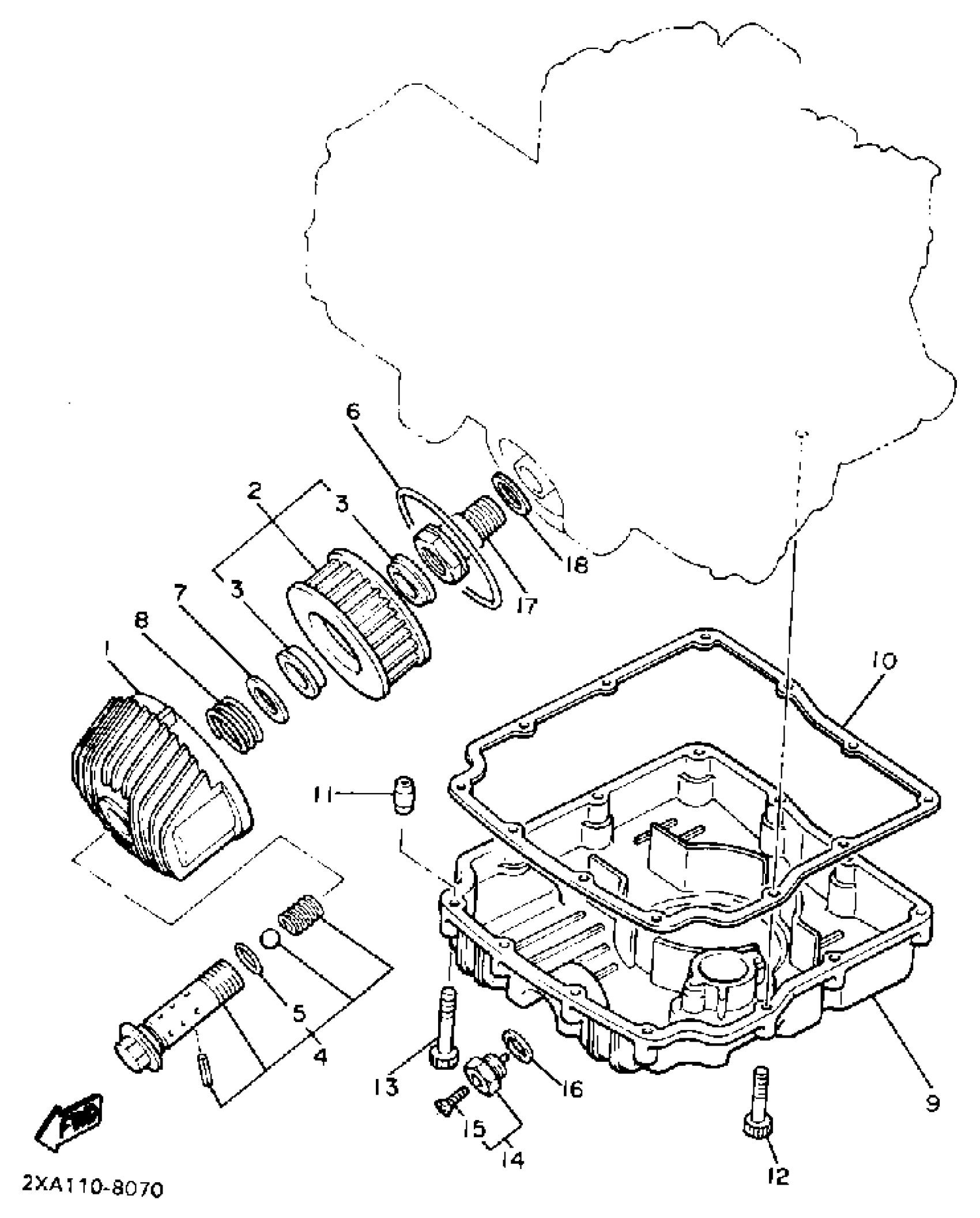

Yamaha YX600AC (RADIAN CA) 1990 OIL FILTER Diagram

COVER, OIL ELEMENT

ELEMENT, OIL CLEANER

GROMMET (1L9)

GROMMET (1L9)

BY-PASS VALVE ASSY

O-RING (26H)

O-RING(1KF)

WASHER, PLATE (1L9)

SPRING, COMPRESSION (1L9)

COVER, STRAINER

GASKET, STRAINER COVER

PIN, DOWEL(3XW)

BOLT, HEXAGON SOCKET HEAD(1VJ)

BOLT,SOCKET

PLUG, STRAIGHT SCREW(3FA)

SCREW, BIND(2TV)

GASKET

BOLT, UNION

WASHER, PLATE (888)
