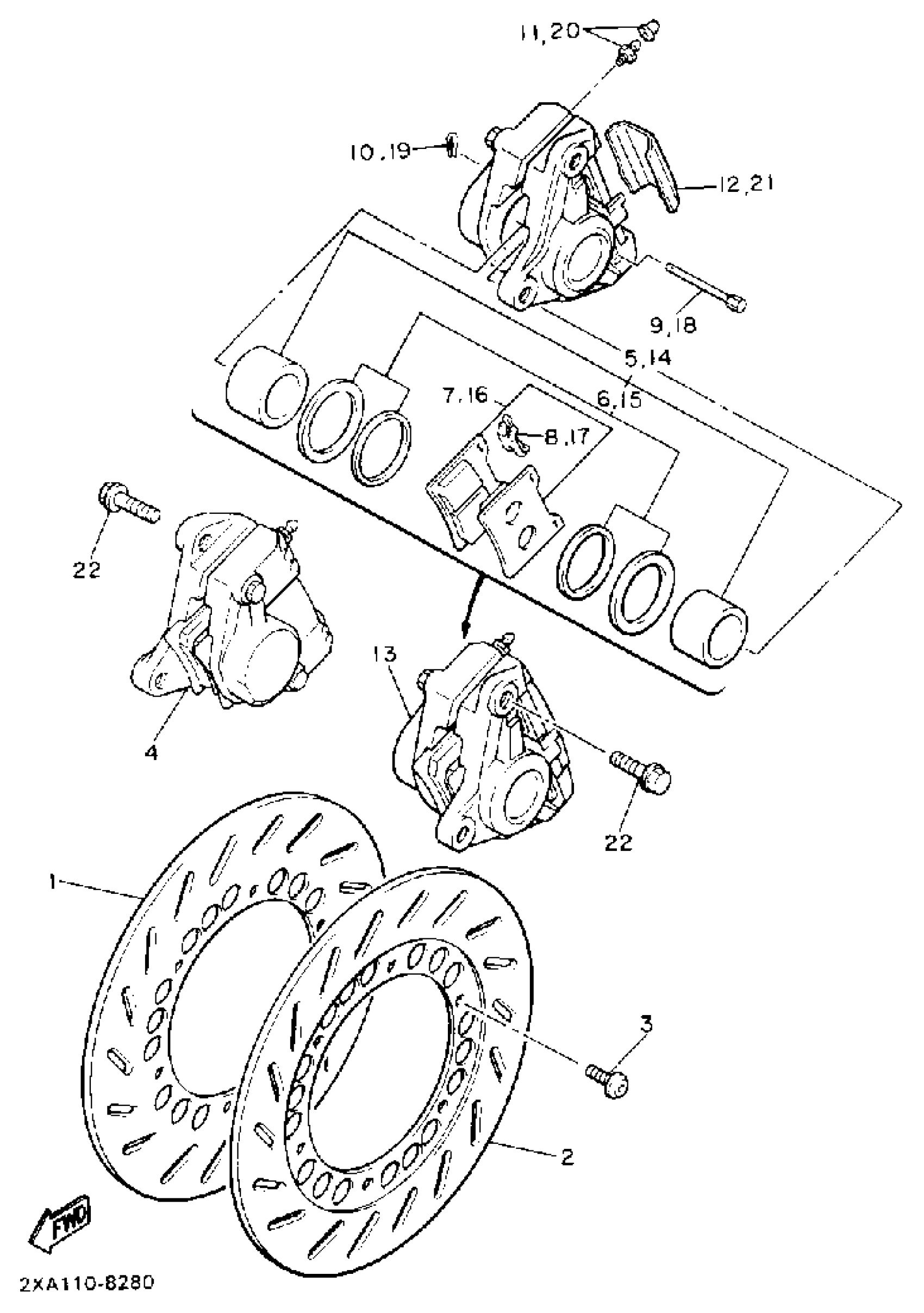

Yamaha YX600AC (RADIAN CA) 1990 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE R (BLCK) (RIGHT)

29L-25831-00-00

Unavailable

2

DISC, BRAKE

29L-25831-10-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

4

CALIPER ASY

3KM-2580U-00-00

Unavailable

5

PISTON ASSY, CALIPER

31A-W0057-00-00

$141.99

6

PISTON SEAL KIT

31A-W0047-00-00

$57.99

7

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

8

SUPPORT, PAD

1WG-25919-00-00

$10.99

9

PIN, PAD

3HE-25924-00-00

Unavailable

10

CLIP, PAD PIN

3GM-25925-00-00

$11.99

11

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

12

COVER, DUST

51J-25836-01-00

Unavailable

13

CALIPER ASY

3KM-2580T-00-00

Unavailable

14

PISTON ASSY, CALIPER

31A-W0057-00-00

$141.99

15

PISTON SEAL KIT

31A-W0047-00-00

$57.99

16

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

17

SUPPORT, PAD

1WG-25919-00-00

$10.99

18

PIN, PAD

3HE-25924-00-00

Unavailable

19

CLIP, PAD PIN

3GM-25925-00-00

$11.99

20

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

21

COVER, DUST

51J-25836-01-00

Unavailable

22

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
