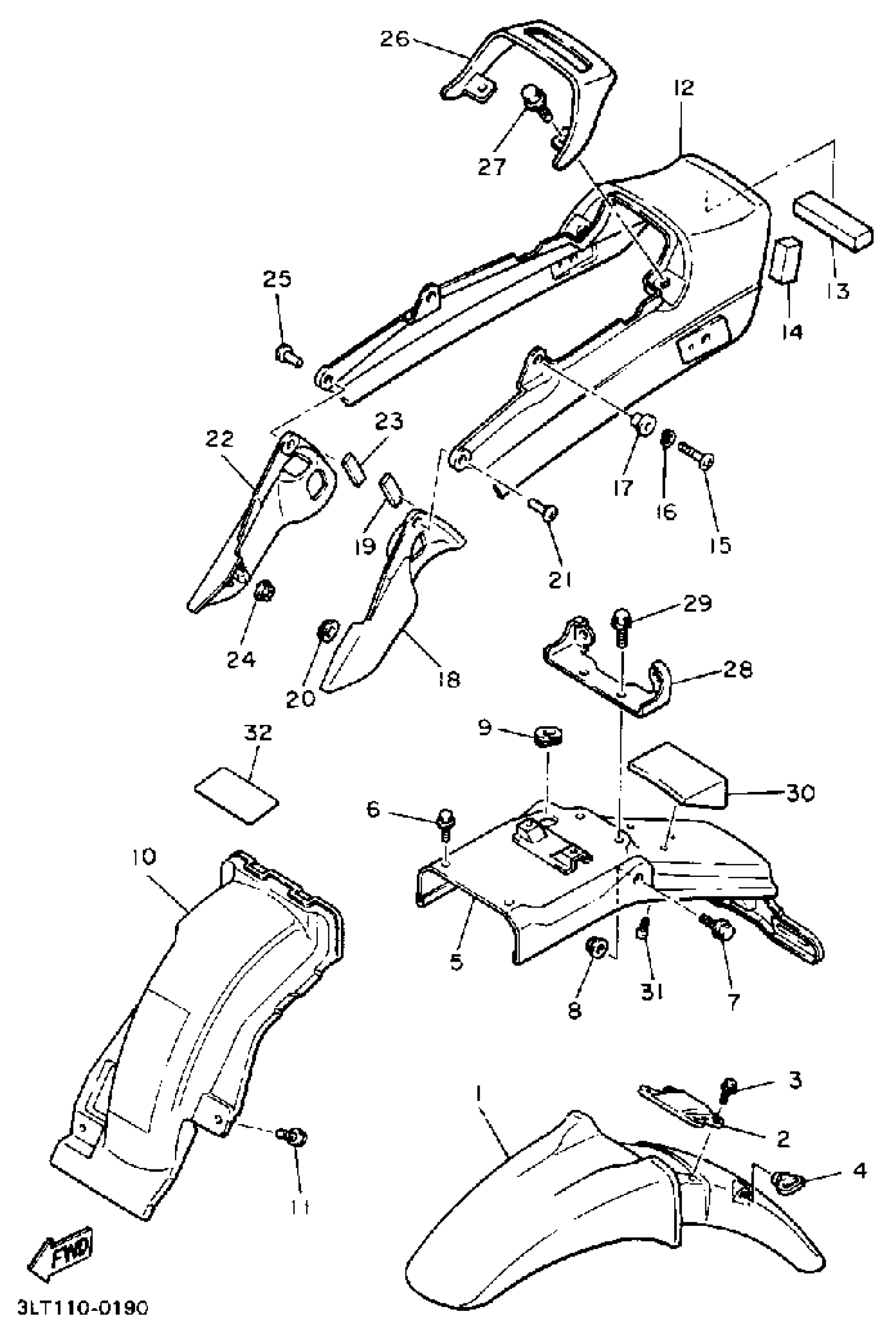

Yamaha YX600AC (RADIAN CA) 1990 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1UJ-21510-00-1X

Unavailable

1

FENDER, FRONT

1UJ-21510-00-LG

Unavailable

2

BRACE, FORK

1UJ-2313A-00-00

Unavailable

3

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

4

GUIDE, WIRE

1A8-21518-00-00

$7.99

5

FENDER, REAR

3LT-21610-00-93

Unavailable

6

BOLT, FLANGE

95812-06010-00

$2.98

7

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

8

NUT, FLANGE

95704-08500-00

$8.49

9

GROMMET (438)

90480-15061-00

$8.49

10

GUARD, MUD

4G0-21629-00-00

Unavailable

11

BOLT, WITH WASHER(8V7)

90119-06108-00

$8.49

12

COVER, REAR FENDER

1UJ-21651-00-LG

Unavailable

12

COVER,REAR FENDER

1UJ-21651-00-P0

Unavailable

13

DAMPER

1UJ-21649-00-00

Unavailable

14

DAMPER 1

83R-14425-00-00

Unavailable

15

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

16

WASHER, SPRING

92907-06100-00

Unavailable

17

C0LLAR

90387-062M9-00

Unavailable

18

COVER, REAR FNDR.3

1UJ-2163E-00-LG

Unavailable

18

COVER, REAR FNDR.3

1UJ-2163E-00-P0

Unavailable

19

DAMPER 2

1HX-28227-00-00

Unavailable

20

GROMMET(41Y)

90480-01401-00

Unavailable

21

RIVET

90269-06001-00

Unavailable

22

COVER, REAR FENDR3

1UJ-2163F-00-LG

Unavailable

22

COVER, REAR FENDR3

1UJ-2163F-00-P0

Unavailable

23

DAMPER 2

1HX-28227-00-00

Unavailable

24

GROMMET(41Y)

90480-01401-00

Unavailable

25

RIVET

90269-06001-00

Unavailable

26

STAY, REAR

1UF-21645-01-00

Unavailable

27

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

28

BRACKET

1UJ-2161A-00-00

Unavailable

29

BOLT, FLANGE

95812-06010-00

$2.98

30

COVER, REAR FENDER

1UF-2163A-00-00

Unavailable

31

SCREW, PAN TAP.2 SLIT

97707-40608-00

Unavailable

32

PLATE, EPA CAL 2

3LT-2179R-10-00

Unavailable

32

PLATE, EPA U49

3LT-2179V-10-00

Unavailable
