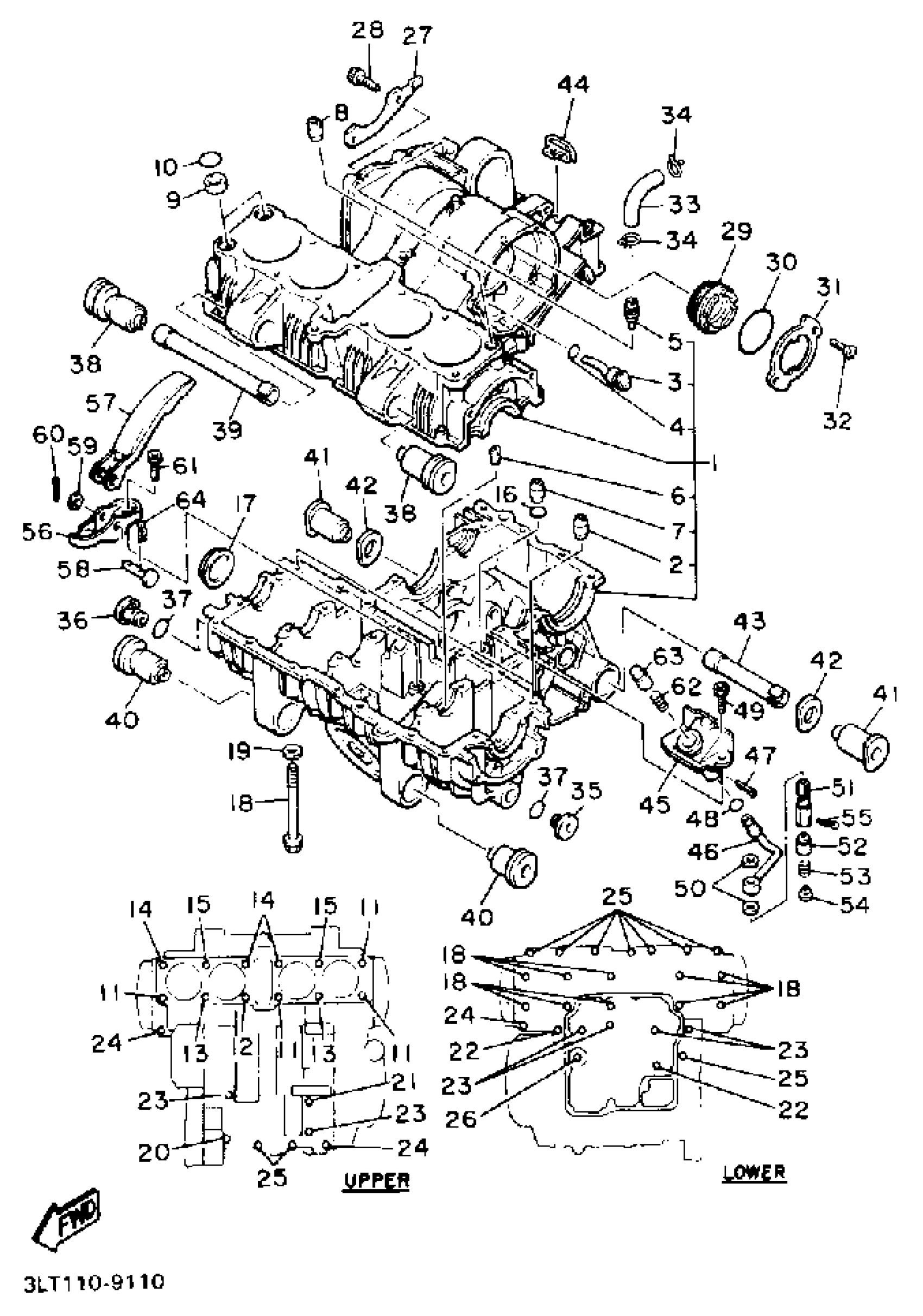

Yamaha YX600AC (RADIAN CA) 1990 CRANKCASE Diagram
#
1
CRANKCASE ASSEMBLY
3LT-15100-00-00
Unavailable
3
. NOZZLE 2
4G0-15148-00-00
Unavailable
11
BOLT, STUD
90116-08338-00
Unavailable
12
BOLT, STUD
90116-08339-00
Unavailable
13
BOLT, STUD
90116-08340-00
Unavailable
14
BOLT, CYLINDER HOLDING 3
4G0-11363-00-00
Unavailable
15
BOLT, CYLINDER HOLDING 4
4G0-11364-00-00
Unavailable
16
O-RING (1J7)
93210-09350-00
Unavailable
17
PLUG (4H7)
4H7-15167-10-00
Unavailable
18
BOLT, FLANGE
95817-08100-00
Unavailable
19
WASHER, PLATE (33N)
90201-094G1-00
Unavailable
20
BOLT, FLANGE(JF2)
95817-08080-00
Unavailable
21
BOLT, FLANGE
95811-06115-00
Unavailable
22
BOLT, FLANGE
95817-06095-00
Unavailable
23
BOLT, FLANGE
95817-06065-00
Unavailable
24
BOLT, FLANGE
95817-06055-00
Unavailable
25
BOLT, FLANGE
95817-06045-00
Unavailable
26
BOLT, FLANGE
95817-06035-00
Unavailable
27
PLATE, BRNG COVER
4G0-15381-00-00
Unavailable
28
BOLT,SOCKET
91317-06016-00
Unavailable
29
HOUSING, BEARING 1
4G0-15163-01-00
Unavailable
30
O-RING (26H)
93210-45578-00
Unavailable
31
PLATE, BEARING COVER
4G0-15383-00-00
Unavailable
32
SCREW, COUNTERSUNK (4H7)
90151-06014-00
Unavailable
33
PIPE, BREATHER 1
4G0-11166-00-00
Unavailable
34
CLIP (371)
90467-14015-00
Unavailable
35
PLUG
3KM-15189-00-00
Unavailable
36
PLUG
4H7-15189-00-00
Unavailable
37
O-RING (25G)
93210-20573-00
Unavailable
38
DAMPER, ENGINE MOUNT 3
1AA-15336-01-00
Unavailable
39
SPACER, ENG MOUNT
(4G0-15317-00-00)
Unavailable
40
DAMPER, ENGINE MOUNT 1
1AA-15316-01-00
Unavailable
41
COLLAR
90387-125N5-00
Unavailable
42
WASHER, CLAW
90214-28045-00
Unavailable
43
SPACER, ENG MOUNT
4G0-15327-00-00
Unavailable
44
CLAMP
90462-10081-00
Unavailable
45
TENSIONER, CHAIN
4G0-11592-00-00
Unavailable
46
PIPE, DELIVERY 2
4G0-13171-00-00
Unavailable
47
PIN, COTTER
91490-25020-00
Unavailable
48
O-RING (11M)
93210-07540-00
Unavailable
49
BOLT, HEXAGON SOCKET HEAD
90110-06158-00
Unavailable
50
GASKET (5R6)
90430-10171-00
Unavailable
51
RELIEF VALVE ASS'Y
4G0-11575-00-00
Unavailable
52
RELIEF VALVE ASS'Y
4G0-11575-00-00
Unavailable
53
SPRING, COMPRESSION (4G0)
90501-08614-00
Unavailable
54
WASHER, SPECL SHAP
90209-03202-00
Unavailable
55
PIN, COTTER
91490-20025-00
Unavailable
56
BRACKET, TENSIONER
(4G0-11497-00-00)
Unavailable
57
TENSIONER ARM COMP
4G0-11492-00-00
Unavailable
58
PIN, CLEVIS
90240-08078-00
Unavailable
59
.. WASHER, PLATE
92990-08600-00
Unavailable
60
PIN, COTTER
91490-25020-00
Unavailable
61
BOLT, HEXAGON SOCKET HEAD
90110-06158-00
Unavailable
62
. SPRING, COMPRESSION
90501-143A8-00
Unavailable
63
. PLUNGER, TENSIONER
46X-11597-00-00
Unavailable
64
CLIP
90468-18008-00
Unavailable
