1986 Yamaha YTZ250S Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1986 Yamaha YTZ250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

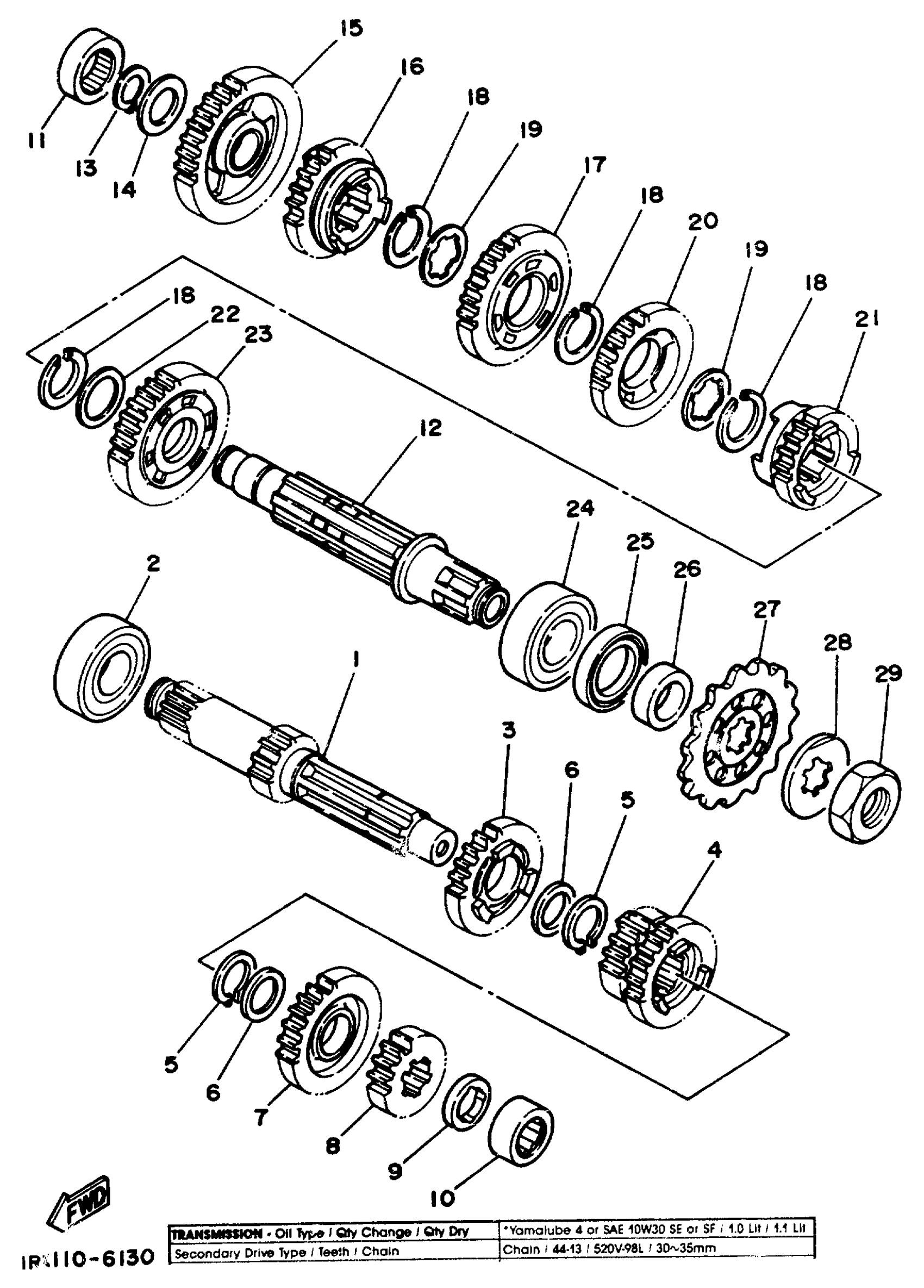

1986 Yamaha YTZ250S Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

1RX-17411-00-00

1
Out of stock

2

BEARING (23X)

93300-20501-00

1

$60.97

In stock

3

GEAR, 5TH PINION

25Y-17151-00-00

1
Out of stock

4

GEAR, 3RD PINION

25Y-17131-00-00

1
Out of stock

5

CIRCLIP (537)

93410-22039-00

1

$6.17

In stock

6

WASHER, PLATE (537)

90201-22555-00

1
Out of stock

7

GEAR, 6TH PINION

25Y-17161-00-00

1
Out of stock

8

GEAR, 2ND PINION

25Y-17121-00-00

1
Out of stock

9

WASHER, SPEC''L SHAP

90209-17289-00

1
Out of stock

10

1

$63.35

In stock

11

BEARING (2X7)

93311-62035-00

1

$48.30

In stock

12

AXLE, DRIVE

1RX-17421-00-00

1
Out of stock

13

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

14

WASHER PLATE 168171160000

90201-20278-00

1
Out of stock

15

GEAR, 1ST WHEEL

1RX-17211-00-00

1
Out of stock

16

GEAR, 5TH WHEEL

25Y-17251-00-00

1
Out of stock

17

GEAR, 3RD WHEEL

25Y-17231-00-00

1
Out of stock

18

CIRCLIP (4L0)

93440-25084-00

—

$3.96

In stock

19

WASHER 434172160000

90209-22082-00

—

$7.89

In stock

20

GEAR, 4TH WHEEL

25Y-17241-00-00

1
Out of stock

21

GEAR, 6TH WHEEL

25Y-17261-00-00

1
Out of stock

22

WASHER, PLATE(59W)

90201-253K0-00

—

$6.18

In stock

23

GEAR, 2ND WHEEL

25Y-17221-00-00

1
Out of stock

24

BEARING (23X)

93300-20501-00

1

$60.97

In stock

25

OIL SEAL (697)

93102-32M07-00

—

$16.32

In stock

26

COLLAR

90387-251L8-00

1
Out of stock

27

—

$17.88

In stock

27

—

$18.29

In stock

27

SPROCKET, DRIVE

93834-14051-00

1
Out of stock

28

WASHER, LOCK (23X)

90215-21239-00

—

$7.56

In stock

29

NUT (2K7)

90179-20255-00

—

$9.40

In stock
