1986 Yamaha YTZ250S Shift CAM-Fork Diagram

← All diagrams

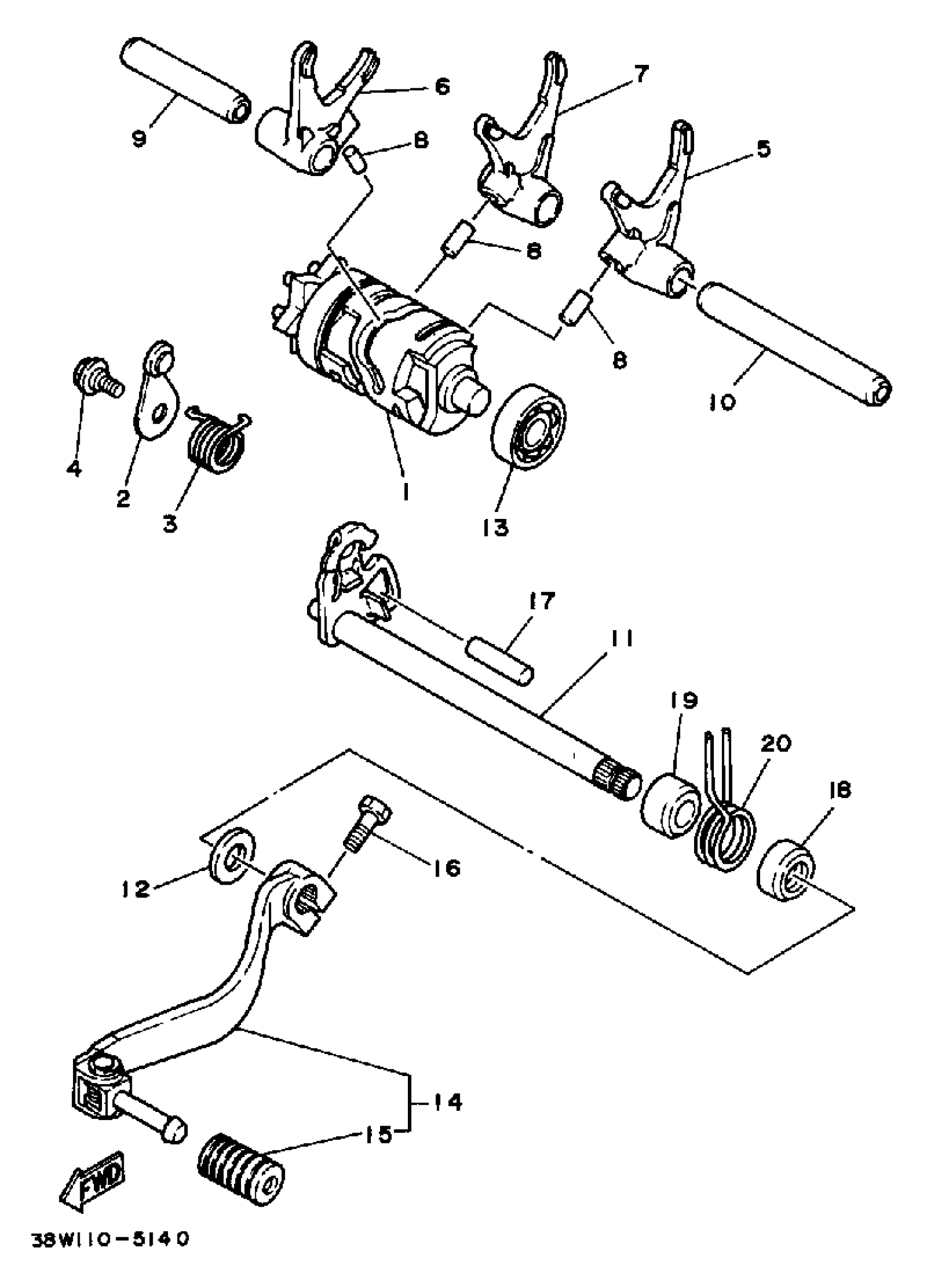

Find the part on the Shift CAM-Fork diagram for your 1986 Yamaha YTZ250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTZ250S Shift CAM-Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

BAR, SHIFT FORK GUIDE 1

4BA-18531-00-00

—
Out of stock

1

SHIFT CAM ASSEMBLY

25Y-18540-00-00

1
Out of stock

2

STOPPER LEVER ASSEMBLY

3R4-18140-00-00

1
Out of stock

3

SPRING, TORSION

90508-26421-00

1
Out of stock

4

BOLT

90109-06190-00

1

$3.49

In stock

5

FORK, SHIFT 1

3R4-18511-01-00

1
Out of stock

6

FORK, SHIFT 2

3R4-18512-01-00

1
Out of stock

7

FORK, SHIFT 3

25Y-18513-00-00

1
Out of stock

8

PIN, DOWEL (3R4)

93606-14154-00

—

$2.20

In stock

10

BAR, SHIFT FORK GUIDE 2

5X5-18535-01-00

1
Out of stock

11

SHIFT SHAFT ASSY

38W-18101-02-00

1
Out of stock

12

WASHER, PLATE

90201-12657-00

1
Out of stock

13

BRG,R-B 6001 28MM 28G KY

93306-00105-00

1

$25.40

In stock

14

SHIFT PEDAL ASSEMBLY

38W-18110-00-00

1
Out of stock

15

COVER, CHANGE PEDAL

1W6-18113-00-00

1

$3.91

In stock

16

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

17

PIN, DOWEL

93608-25150-00

1
Out of stock

18

SEAL, OIL (30X)

93102-12321-00

—

$10.14

In stock

19

SPACER

90560-12171-00

1
Out of stock

20

SPRING, TORSION

90508-29361-00

1
Out of stock
