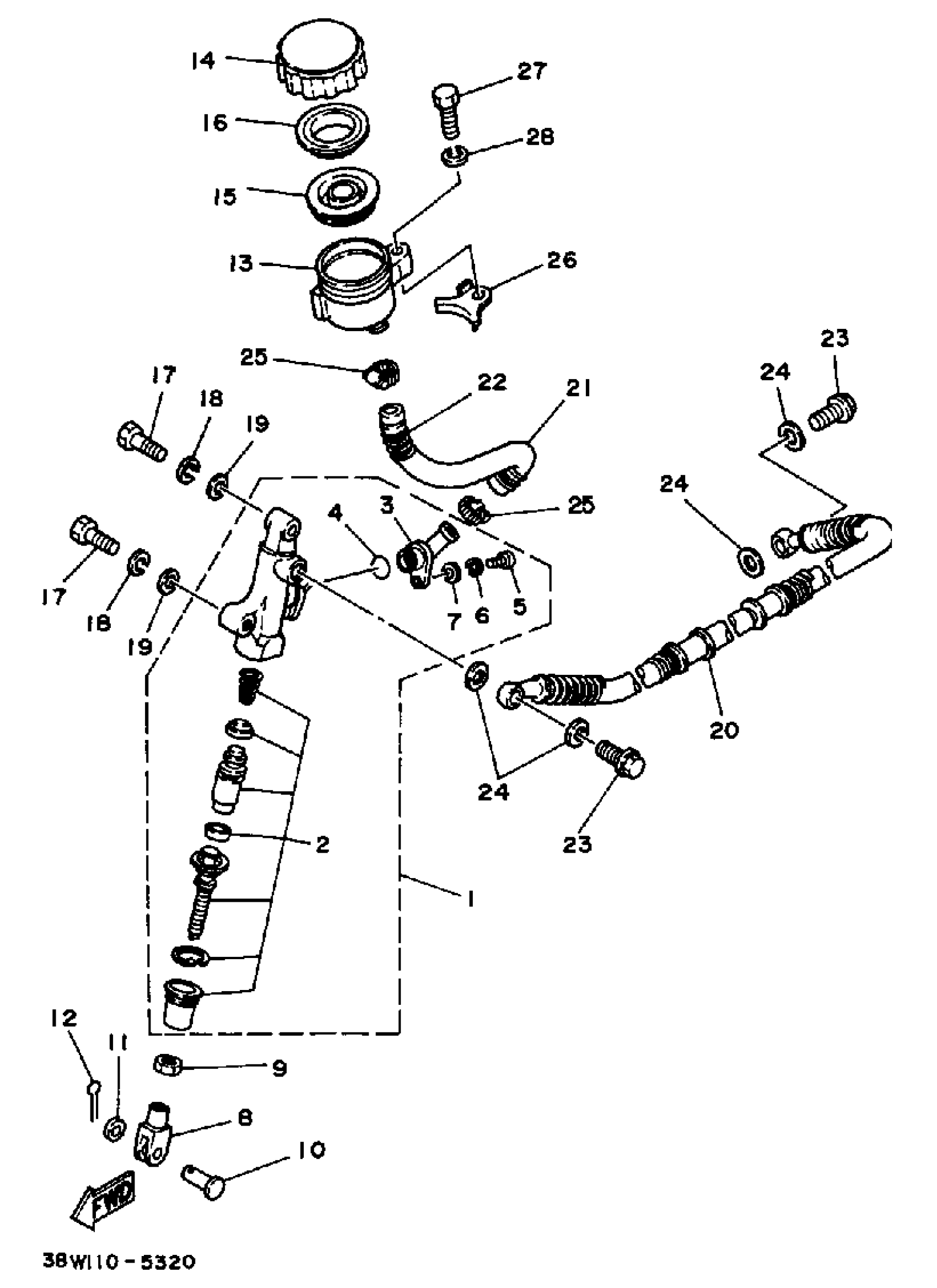

Yamaha YTZ250S 1986 REAR MASTER CYLINDER Diagram
#
Description
Price
1
MASTER CYLINDER ASSY
29L-25850-51-00
Unavailable
2
CYLINDER KIT, MASTER
4GY-W0042-00-00
Unavailable
3
CONNECTOR
29L-2582A-50-00
Unavailable
5
SCREW, PAN HEAD
98511-04012-00
Unavailable
8
JOINT
47X-27222-00-00
Unavailable
9
. NUT
95380-08700-00
Unavailable
12
PIN, COTTER
91490-16020-00
Unavailable
13
TANK, RESERVOIR
38W-25894-00-00
Unavailable
16
BUSH,DIAPHRAGM
2GU-25855-00-00
Unavailable
17
BOLT, HEXAGON
97013-08030-00
Unavailable
18
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
19
.. WASHER, PLATE
92990-08600-00
Unavailable
20
HOSE, BRAKE 1
38W-25872-51-00
Unavailable
21
HOSE, RESERVOIR
38W-25895-00-00
Unavailable
22
SPRING, COMPRESSION
(90501-103A6-00)
Unavailable
23
BOLT, UNION(3GM)
90401-10159-00
Unavailable
24
WASHER, PLATE(481)
90201-10118-00
Unavailable
25
CLAMP, HOSE
90460-12268-00
Unavailable
26
HOLDER, RESERVETANK
38W-2582E-00-00
Unavailable
27
BOLT, HEXAGON
97017-06025-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
