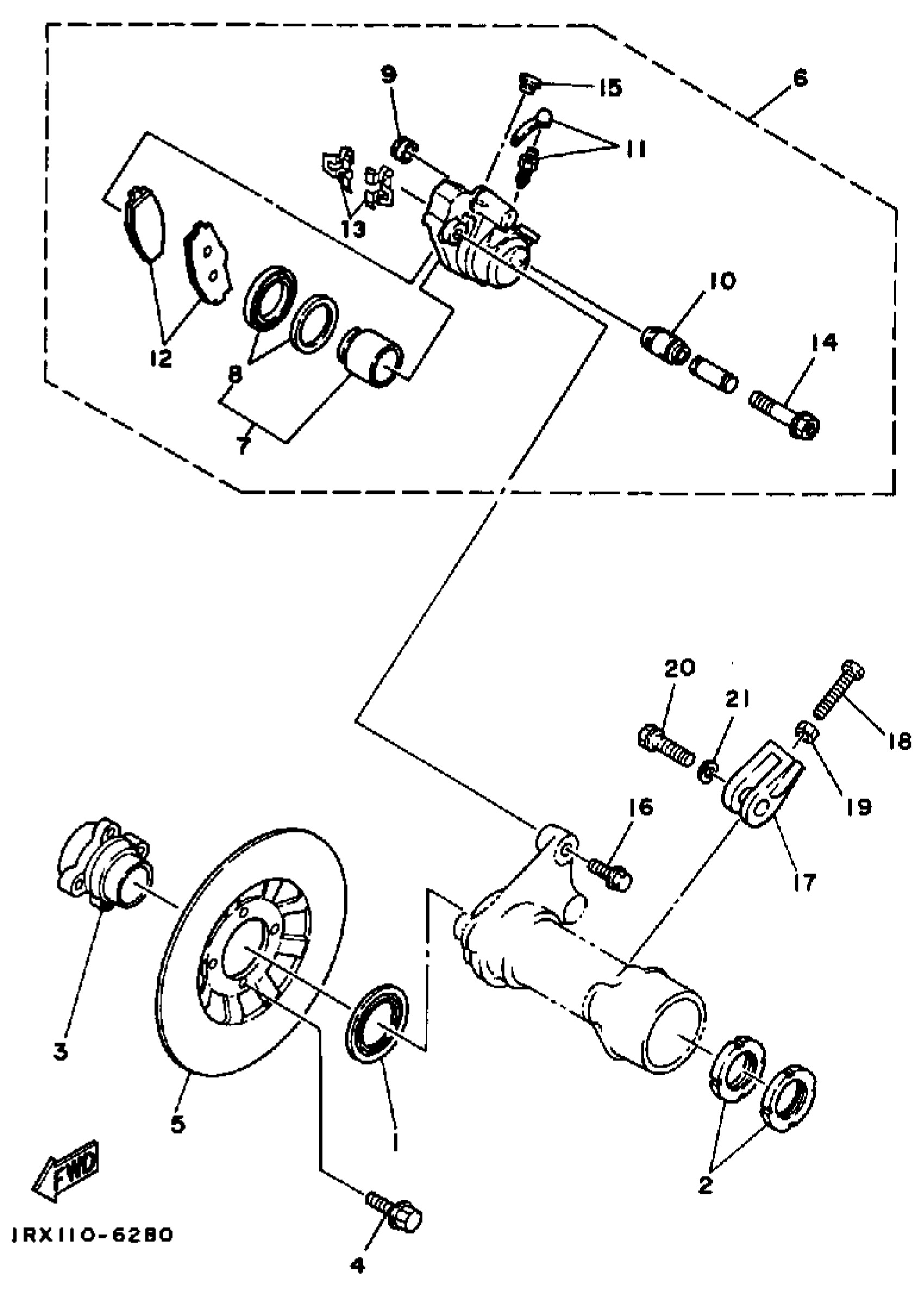

Yamaha YTZ250S 1986 REAR BRAKE CALIPER Diagram

#

Description
Price

1

COVER, HUB DUST

38W-25367-00-00

Unavailable

2

NUT (38W)

90179-33482-00

Unavailable

3

BRACKET, DISC

38W-25712-00-00

Unavailable

4

BOLT, WASHER BASED

90105-08233-00

Unavailable

5

DISC,BRAKE

1UY-25831-50-00

Unavailable

6

CALIPER ASSY

34X-2580T-00-00

Unavailable

7

PISTON ASSY, CALIPER

34X-W0057-00-00

$121.71

8

CALIPER SEAL KIT

34X-W0047-00-00

$37.04

9

BOOT 2

5R2-25937-00-00

$30.21

10

BOOT 2

34X-25937-00-00

$27.55

11

BLEED SCREW KIT

15B-W0048-00-00

$16.89

12

BRAKE PAD KIT 2

34X-W0046-02-00

$39.24

13

SUPPORT, PAD

34X-25919-00-00

Unavailable

14

BOLT

5KN-25926-01-00

$7.30

15

CAP, INDICATOR

34X-25845-00-00

$14.33

16

BOLT, WASHER/BASED

90105-10356-00

Unavailable

17

PULLER, CHAIN 1

1UY-25388-00-00

Unavailable

18

BOLT(4SR)

90101-08777-00

Unavailable

19

NUT(6L2)

95333-08600-00

Unavailable

20

BOLT, W/WASHER (38W)

90119-10109-00

Unavailable

21

WASHER, PLATE (29U)

90201-104G0-00

Unavailable
