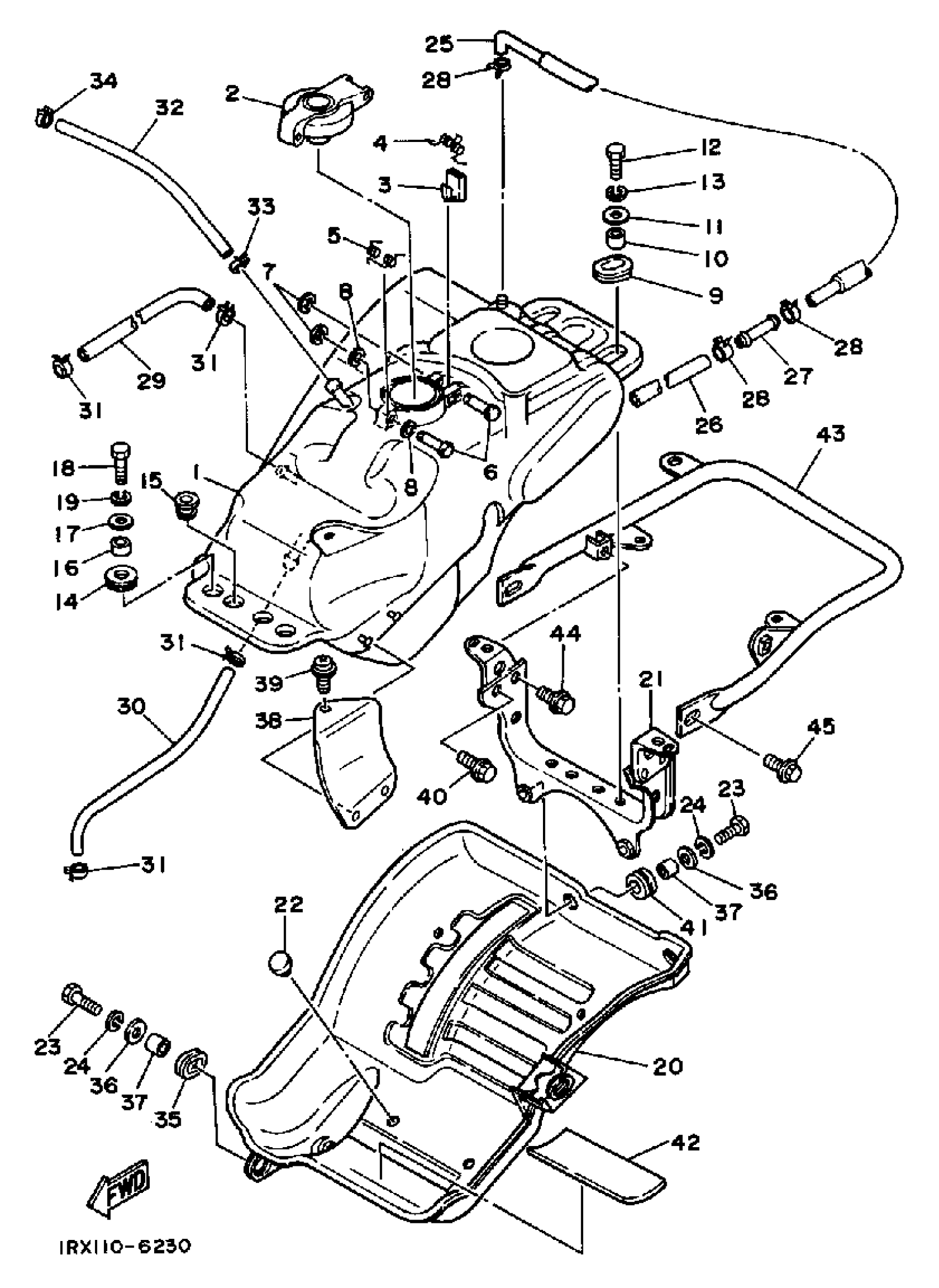

Yamaha YTZ250S 1986 FUEL TANK Diagram
#
1
FUEL TANK
38W-24111-00-00
Unavailable
2
CAP ASSEMBLY
38W-24610-00-00
Unavailable
4
SPRING, TORSION(81E)
90508-10715-00
Unavailable
5
SPRING, TORSIOW (8F3)
90508-08353-00
Unavailable
13
WASHER, SPRING
92995-06100-00
Unavailable
17
WASHER, PLATE
90201-06747-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
PROTECTOR, FUEL TNK
(38W-24141-00-00)
Unavailable
21
BRACKET, FUEL TNK 2
1RX-24192-00-00
Unavailable
22
DAMPER, LOCATING 1
22W-24181-00-00
Unavailable
23
BOLT, HEXAGON
97017-06025-00
Unavailable
24
WASHER, SPRING
92907-06100-00
Unavailable
25
PIPE, OVERFLOW
(38W-24318-00-00)
Unavailable
26
HOSE (L1500)
90445-090F6-00
Unavailable
27
PIPE, JOINT
8H8-24376-00-00
Unavailable
28
CLIP (8A1)
90467-09026-00
Unavailable
29
PIPE, FUEL 1
38W-24311-00-00
Unavailable
30
HOSE (L370)
90445-112E1-00
Unavailable
31
CLIP(42X)
90467-10091-00
Unavailable
32
PIPE 3
38W-24313-00-00
Unavailable
33
CLIP (5K4)
90467-14057-00
Unavailable
34
CLIP(3YX)
90467-13133-00
Unavailable
35
GROMMET (38W)
90480-01420-00
Unavailable
36
WASHER, PLATE
90201-06380-00
Unavailable
37
COLLAR (420)
90387-06241-00
Unavailable
38
TRIM, COVER PANEL
(38W-2414H-00-00)
Unavailable
39
SCREW, WITH WASHER (3T2)
90159-06058-00
Unavailable
40
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
41
GROMMET
90480-16113-00
Unavailable
42
DAMPER
11H-21747-00-00
Unavailable
43
BUMPER, REAR 1 (38W-28421-00)
38W-28421-10-00
Unavailable
44
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
45
BOLT, FLANGE
95817-08012-00
Unavailable
