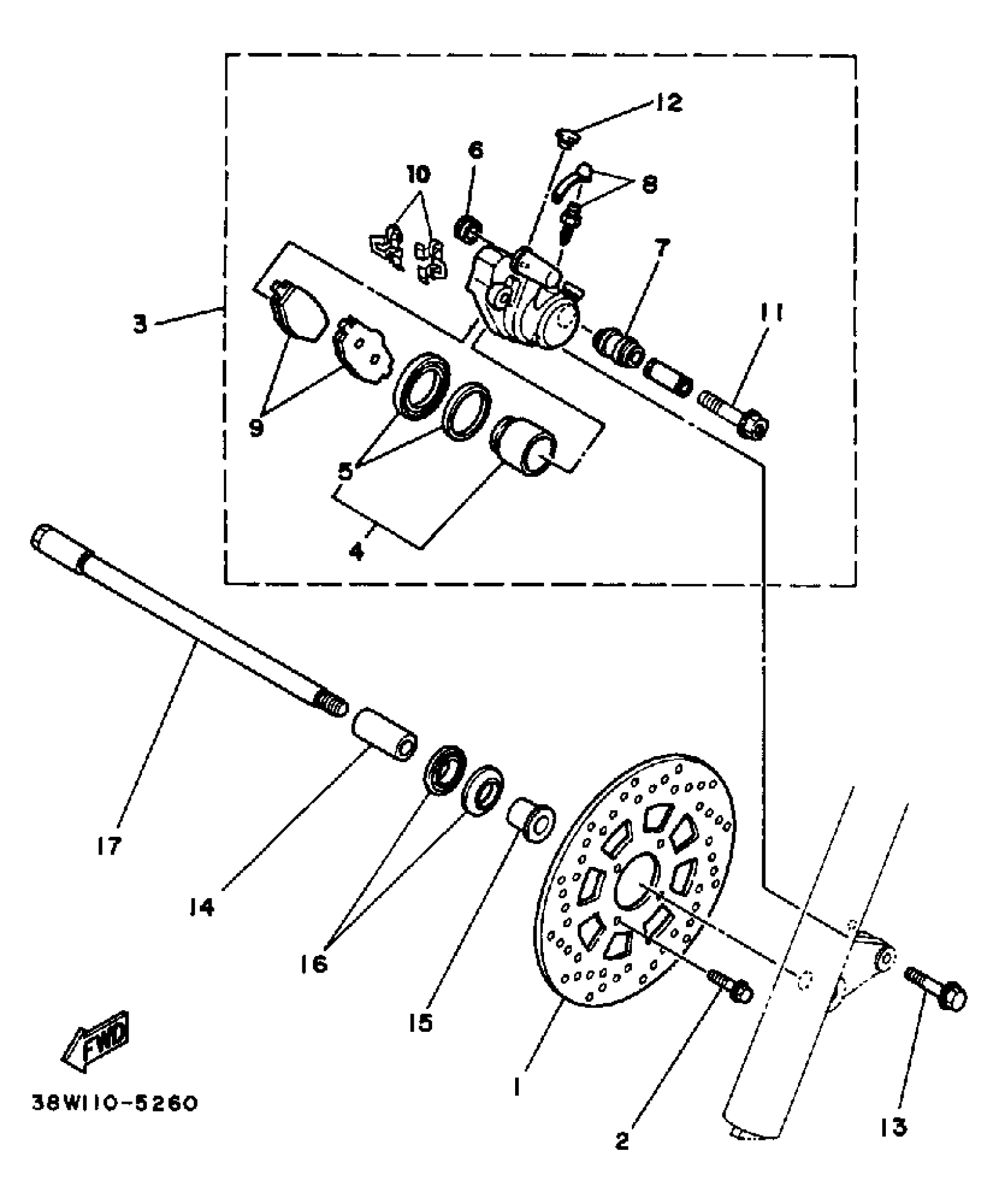

Yamaha YTZ250S 1986 FRONT BRAKE-CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

3FY-2582W-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

3

CALIPER ASSY

34X-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

34X-W0057-00-00

$128.99

5

CALIPER SEAL KIT

34X-W0047-00-00

$45.99

6

BOOT 2

5R2-25937-00-00

$37.99

7

BOOT 2

34X-25937-00-00

$31.99

8

BLEED SCREW KIT

15B-W0048-00-00

$19.99

9

BRAKE PAD KIT

3BN-25805-02-00

$37.99

10

SUPPORT, PAD

34X-25919-00-00

Unavailable

11

BOLT

5KN-25926-01-00

$8.99

12

CAP, INDICATOR

34X-25845-00-00

$16.49

13

BOLT, WASHER BASED(4KM)

90105-10778-00

$4.29

14

COLLAR

90387-151L4-00

Unavailable

15

COLLAR

90387-151L5-00

Unavailable

16

COVER, HUB DUST

38W-25118-00-00

Unavailable

17

AXLE, WHEEL

38W-25181-00-00

Unavailable
