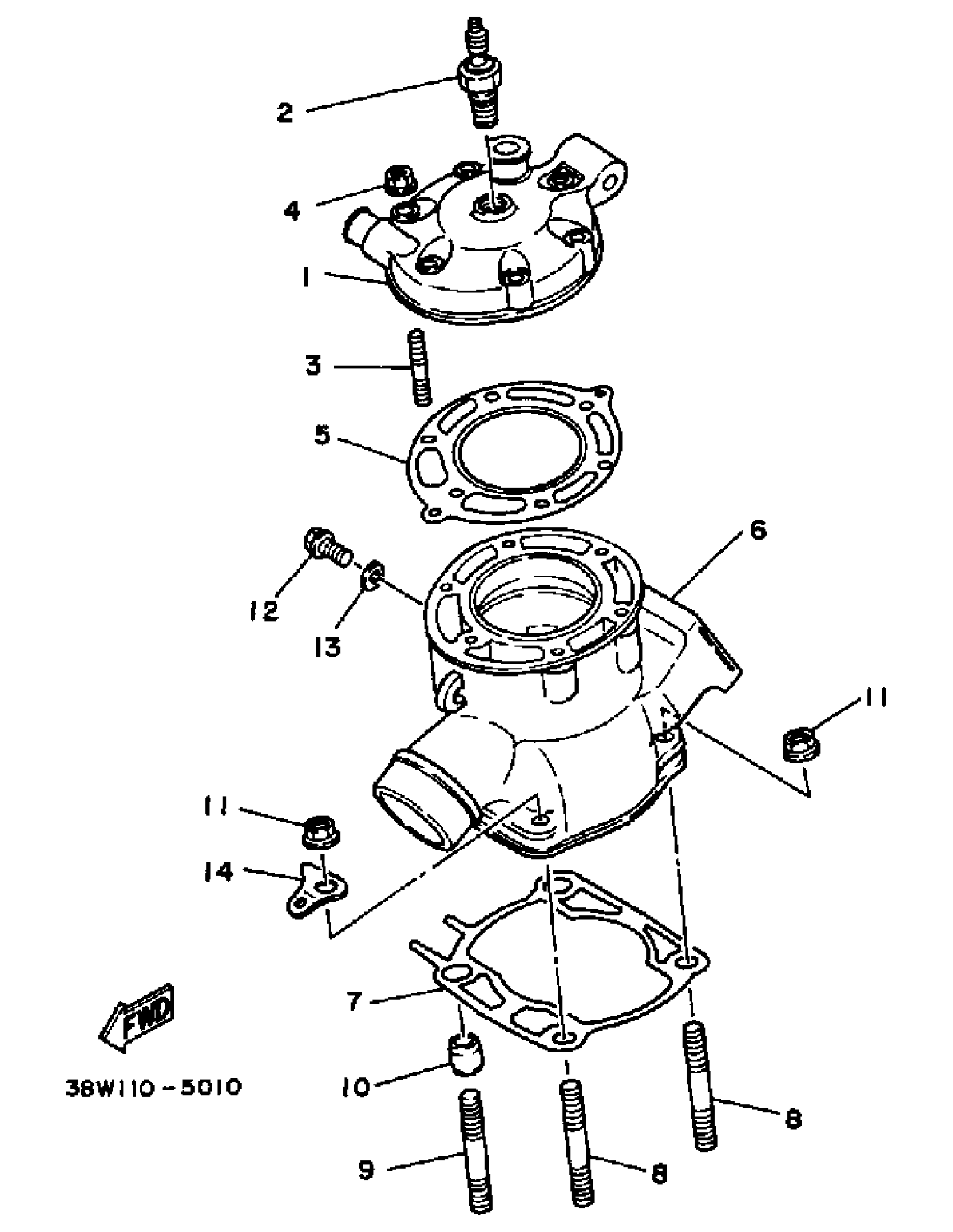

Yamaha YTZ250S 1986 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

38W-11111-00-00

Unavailable

2

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

Unavailable

3

BOLT, STUD (5V6)

90116-08394-00

$11.49

4

NUT(55X)

90179-08491-00

$8.49

5

GASKET, CYLINDER.HEAD

38W-11181-00-00

Unavailable

6

CYLINDER 1 (38W-11311-00)

38W-11311-01-00

Unavailable

7

GASKET, CYLINDER

39X-11351-02-00

Unavailable

8

BOLT, STUD

90116-10313-00

Unavailable

9

BOLT, STUD (3R4)

90116-10314-00

$4.46

10

PIN, DOWEL

99530-14016-00

$3.80

11

NUT, FLANGE(3BM)

95704-10500-00

$4.29

12

BOLT, FLANGE

95817-06012-00

$1.43

13

GASKET (4V2)

90430-06166-00

$3.76

14

HOOK, SPRING

39X-14619-00-00

Unavailable
