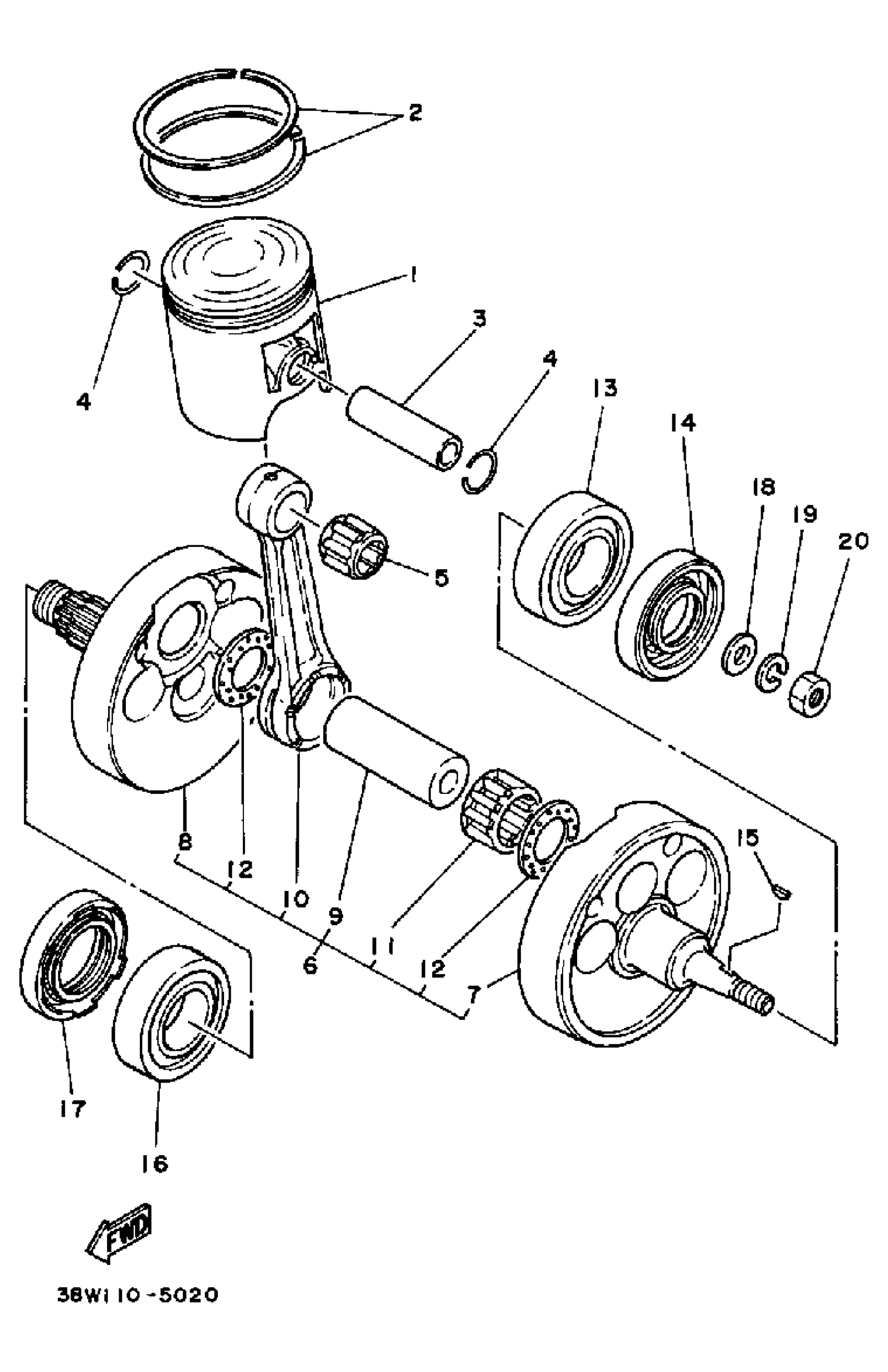

Yamaha YTZ250S 1986 CRANKSHAFT-PISTON Diagram

#

Description
Price

1

PISTON (STD)

1RX-11631-00-94

Unavailable

1

PISTON 1ST O/S

1RX-11635-00-00

Unavailable

1

PISTON 2ND O/S

1RX-11636-00-00

Unavailable

2

. PISTON RINGSET STD

25Y-11601-00-00

Unavailable

2

PISTON RINGSET 1ST (1ST O/S)

25Y-11601-10-00

Unavailable

2

PISTON RINGSET 2ND (2ND O/S)

25Y-11601-20-00

Unavailable

3

PIN, PISTON

214-11633-00-00

Unavailable

4

CIRCLIP (2F1)

93450-19052-00

$7.49

5

BEARING,CON-ROD SMALLEND(2X5)

93310-418E9-00

$48.99

6

CRANKSHAFT ASSEMBLY

1RX-11400-00-00

Unavailable

7

. CRANK 1

1RX-11412-00-00

Unavailable

8

. CRANK 2

24Y-11422-01-00

Unavailable

9

PIN, CRANK

2X4-11681-00-00

$81.99

10

. ROD, CONNECTING

24Y-11651-01-00

Unavailable

11

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

Unavailable

12

WASHER 275116850000

90209-25085-00

Unavailable

13

BEARING (5X5)

93306-20627-00

Unavailable

14

OIL SEAL(38V)

93103-30150-00

Unavailable

15

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

16

BEARING (5X5)

93306-20627-00

Unavailable

17

OIL SEAL (434)

93103-40091-00

Unavailable

18

WASHER, PLATE (583)

90201-12593-00

Unavailable

19

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

20

NUT(55K)

90170-12347-00

Unavailable
