1986 Yamaha YTZ250S Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1986 Yamaha YTZ250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

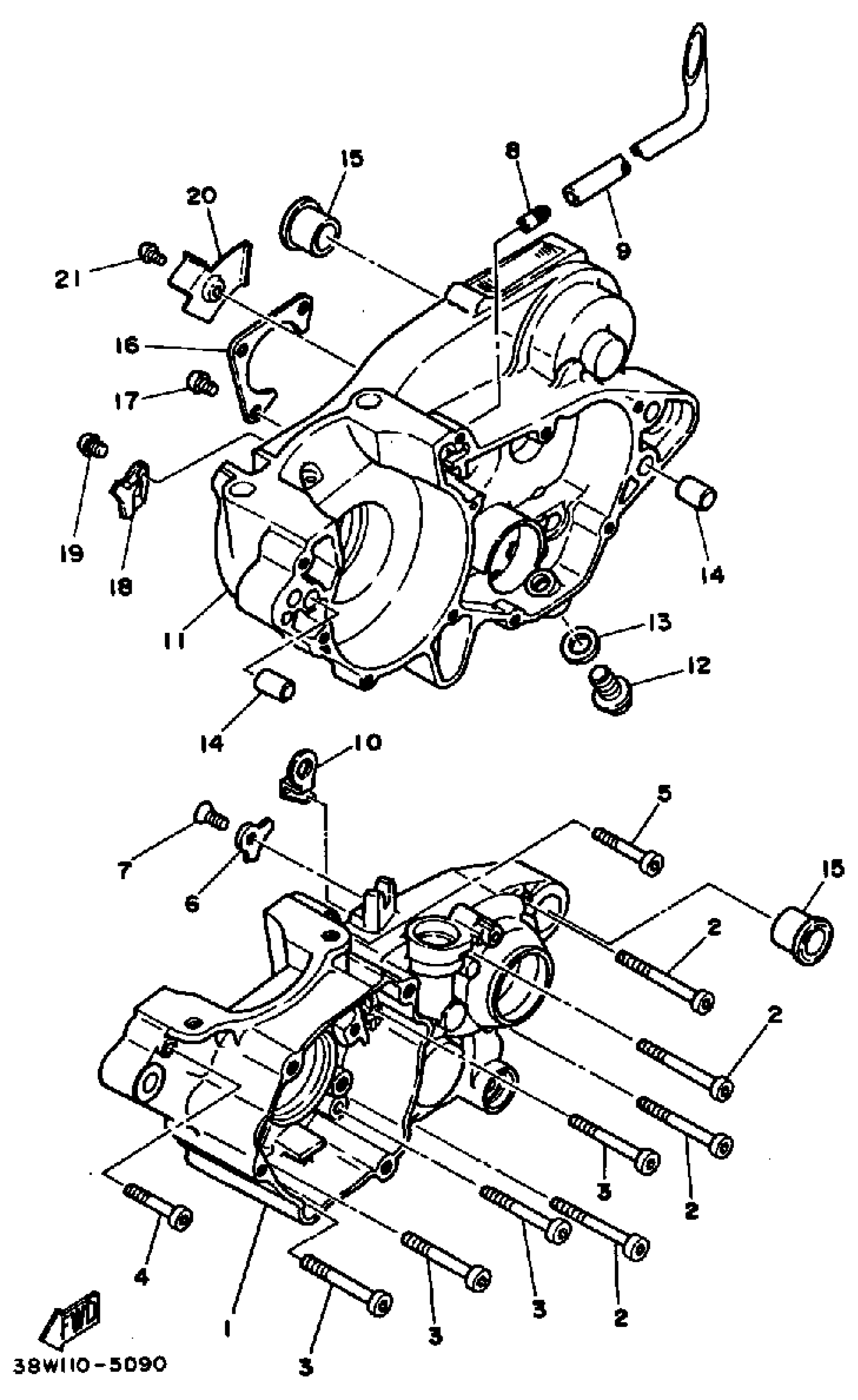

1986 Yamaha YTZ250S Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

5X5-15111-03-00

1
Out of stock

2

BOLT,SOCKET

91317-06060-00

1
Out of stock

3

BOLT,SOCKET

91317-06055-00

1

$3.57

In stock

4

BOLT,SOCKET

91317-06045-00

1
Out of stock

5

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

6

PLATE, BEARING COVER

3AK-15383-01-00

1

$7.91

In stock

7

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

8

. CONNECTOR, SUCTION PIPE

137-13115-01-00

1
Out of stock

9

HOSE (L1500)

90445-084J0-00

1

$16.40

In stock

10

HOLDER

3R4-26393-00-00

1

$90.65

In stock

11

CRANKCASE 2

5X5-15121-01-00

1
Out of stock

12

1

$2.82

In stock

13

GASKET (3JD1)

90430-12207-00

1

$6.77

In stock

14

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

15

COLLAR

90387-160H4-00

1
Out of stock

16

PLATE, BEARING COVER

23X-15381-00-00

1
Out of stock

17

SCREW, PAN

98517-06012-00

—

$3.14

In stock

18

HOLDER

3R4-15118-00-00

1
Out of stock

19

SCREW, PAN

98507-08010-00

—
Out of stock

20

PLATE

5X5-15113-00-00

1
Out of stock

21

SCREW, PAN

98517-06012-00

—

$3.14

In stock
