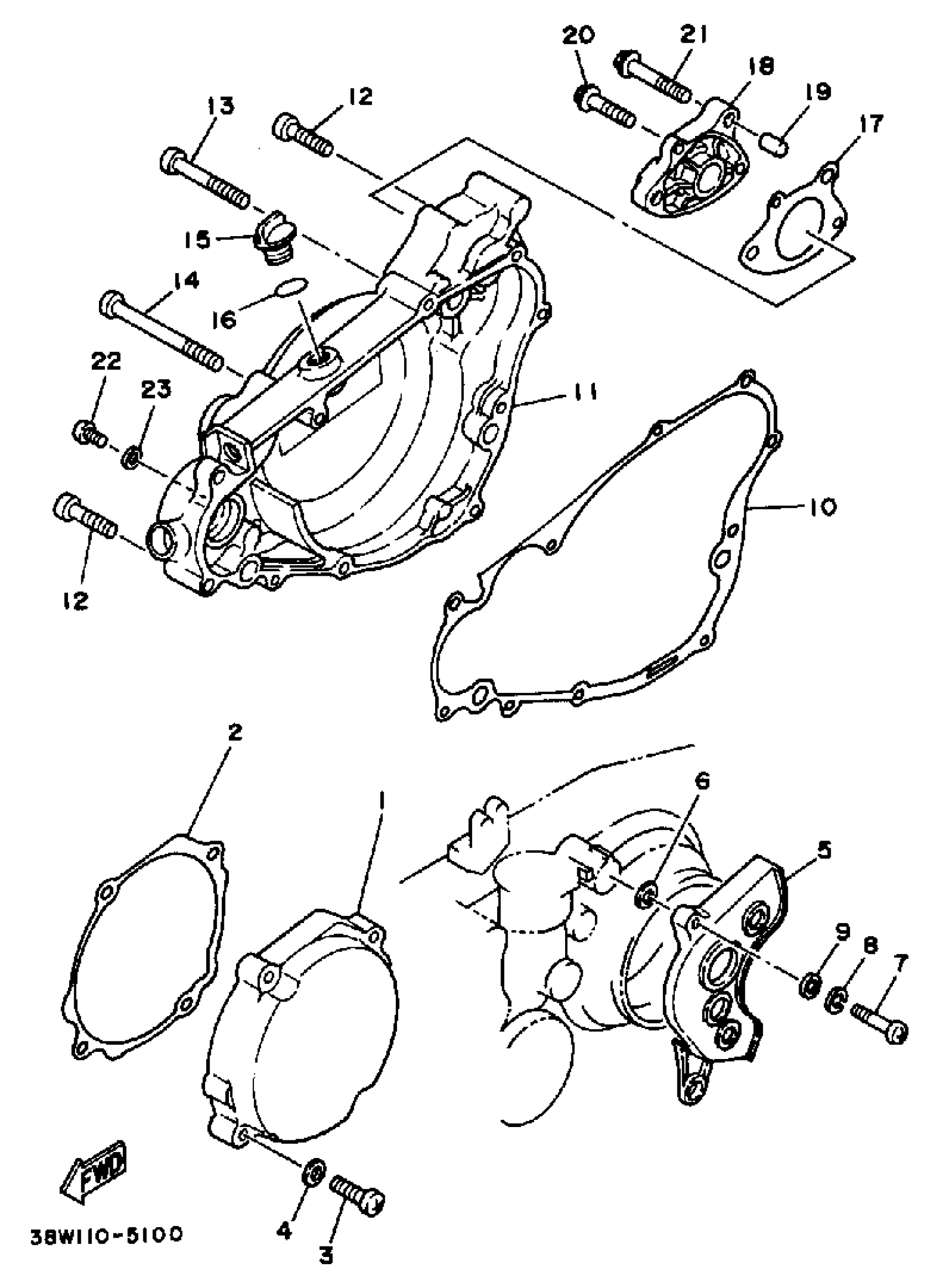

Yamaha YTZ250S 1986 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE L

38W-15411-00-00

Unavailable

2

GASKET, GAS COVER

38W-15451-10-00

Unavailable

3

SCREW, PAN

98507-06035-00

$8.49

4

WASHER(6TA)

92907-06600-00

$2.72

5

COVER, CRANKCASE 2

23X-15421-00-00

$45.99

6

WASHER, PLATE

90201-062J7-00

Unavailable

7

SCREW, PAN

98517-06030-00

Unavailable

8

WASHER, SPRING

92907-06100-00

$4.25

9

WASHER(6TA)

92907-06600-00

$2.72

10

GASKET, CRANK CASE 3

5X5-15462-01-00

$35.99

11

COVER, CRANKCASE 3

38W-15431-00-00

Unavailable

12

BOLT,SOCKET

91317-06025-00

$5.60

13

BOLT,SOCKET

91317-06045-00

$4.99

14

BOLT, SOCKET

91317-06065-00

$3.76

15

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

16

O-RING (26H)

93210-14579-00

Unavailable

17

GASKET8 GAS COR3

38W-15462-10-00

Unavailable

18

COVER

38W-15492-00-00

Unavailable

19

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

20

BOLT, FLANGE

95817-06025-00

Unavailable

21

BOLT, FLANGE

95817-06035-00

Unavailable

22

SCREW, PAN

98517-06008-00

Unavailable

23

GASKET 838153840000

90430-06016-00

Unavailable
