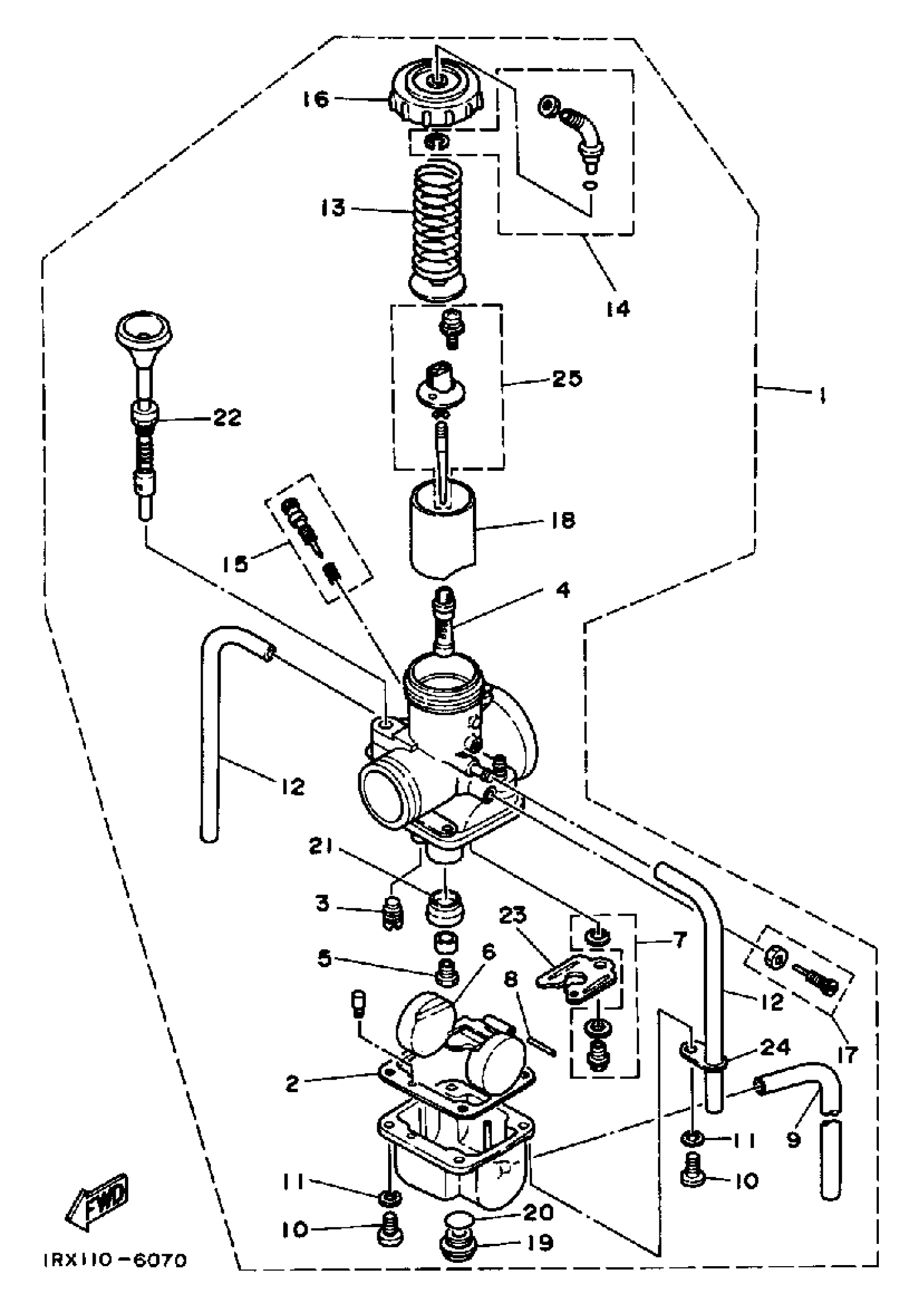

Yamaha YTZ250S 1986 CARBURETOR Diagram
#
Description
Price
1
UNAVAILABLE IN PRICE BOOK
1RX-14101-00-
Unavailable
4
. NOZZLE, MAIN P-4
239-14141-44-00
Unavailable
5
UNAVAILABLE IN PRICE BOOK
(137-14143-60-)
Unavailable
5
JET, MAIN #320
137-14143-64-00
Unavailable
5
JET, MAIN #330
137-14143-66-A1
Unavailable
6
. FLOAT
24X-14185-00-00
Unavailable
7
. NEEDLE VALVE SEAT
38W-14107-15-00
Unavailable
10
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
12
HOSE
89A-14987-00-00
Unavailable
13
. SPRING, THROTTLE VALVE
431-14131-00-00
Unavailable
14
. CBLE AJST SCRW SETSCREW SET
24X-14106-00-00
Unavailable
15
AIR SCREW SET
23X-14104-00-00
Unavailable
16
. TOP, MIXING CHAMBER
3R3-14158-00-00
Unavailable
17
THROTTLE SCREW SET
40T-14103-00-00
Unavailable
18
. VALVE, THROTTLE 1
3R3-14112-30-00
Unavailable
19
. PLUG, SCREW
2K6-14115-00-00
Unavailable
20
O-RING
2K6-14147-00-00
Unavailable
21
. WASHER, MAIN JET
3R3-14153-00-00
Unavailable
22
. STARTER SET
38W-14171-00-00
Unavailable
23
. PLATE
483-14146-00-00
Unavailable
24
. PLATE
313-14146-00-00
Unavailable
25
. NEEDLE SET
1RX-1490J-00-00
Unavailable
