1986 Yamaha YTZ250S AIR Filter Diagram

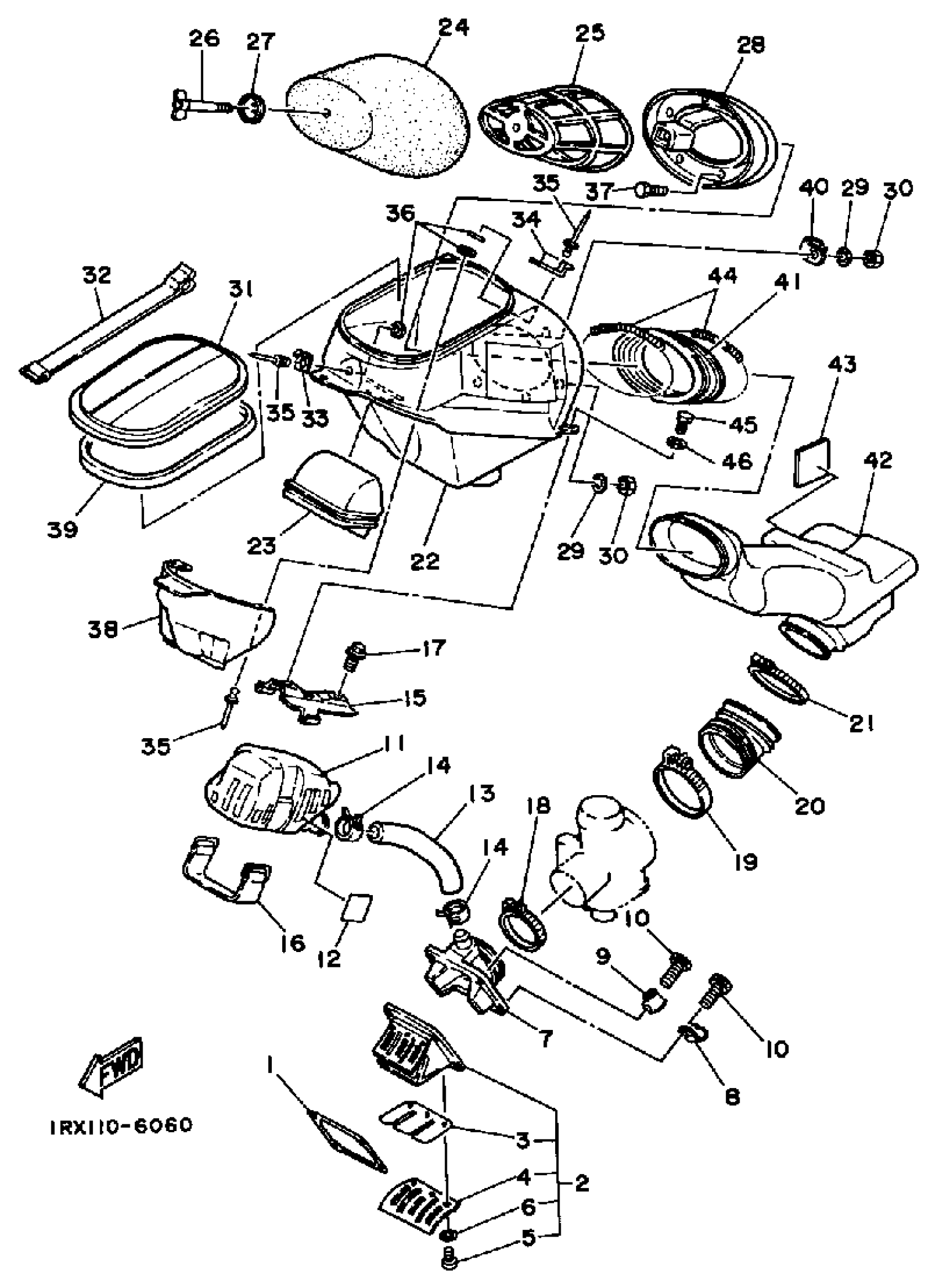

Find the part on the AIR Filter diagram for your 1986 Yamaha YTZ250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
REED VALVE ASSEMBLY
1RX-13610-01-00
3
. REED, VALVE
1RX-13613-00-00
4
. STOPPER, REED VALVE
1RX-13616-00-00
7
JOINT, CARBURETOR
38W-13565-00-00
11
CHAMBER, AIR
38W-13581-00-00
12
EMBLEM
4V3-1441K-00-00
13
PIPE
38W-14465-00-00
15
STAY, CHAMBER
38W-2415F-00-00
18
CLAMP HOSE 278144550000
90460-49058-00
20
JOINT, AIR CLNR 1
1RX-14453-00-00
21
CLAMP, HOSE (29L)
90460-68230-00
22
CASE, AIR CLEANER 1
38W-14411-00-00
23
DUCT
38W-14437-00-00
24
ELEMENT, AIR CLNR
38W-14451-00-00
25
GUIDE, ELEMENT
38W-14458-00-00
26
BOLT, WING
90122-06013-00
27
WASHER (4H7)
90209-06096-00
28
HOLDER, GUIDE
38W-14459-00-00
31
CAP, CLEANER CASE 1
38W-14412-01-00
32
BAND
5X3-14455-00-00
33
PLATE, CLEANER CASE FITTING
34K-14484-00-00
34
HOOK
26A-14436-00-00
37
BOLT, HEXAGON
97313-05014-00
38
COVER, CLNR CASE 1
(38W-1441A-00-00)
39
MOLD, LEG SHIELD
38W-28339-00-00
41
JOINT, AIR CLNR 2
38W-14463-00-00
42
JOINT
1RX-14454-00-00
43
DAMPER
(1RX-14409-00-00)
44
SPRING, TENSION (38)
90506-06342-00
