Description

Price

1

GEAR, IMPELLER SHAFT

39X-12459-00-00

Unavailable

2

IMPELLER SHAFT ASSY

39X-12450-00-00

$65.99

3

OIL SEAL

93103-10011-00

$46.99

4

BUSH (214-17843-00)

90381-08002-00

$11.49

5

WASHER, PLATE (5F7)

90201-08512-00

$8.49

6

WASHER, PLATE(3GM)

90201-106M5-00

$10.49

7

CIRCLIP

99080-07600-00

Unavailable

8

PIN,DOWEL (137)

93603-22028-00

$3.76

9

COVER, HOUSING

24Y-12422-00-00

Unavailable

10

GASKET, COVER HOUSING

5X5-12428-01-00

Unavailable

11

PIN,DOWEL (603)

93604-10011-00

$8.49

12

GASKET (4V2)

90430-06166-00

$3.76

13

BOLT, FLANGE

95817-06025-00

Unavailable

14

BOLT,SOCKET

91317-06025-00

$5.60

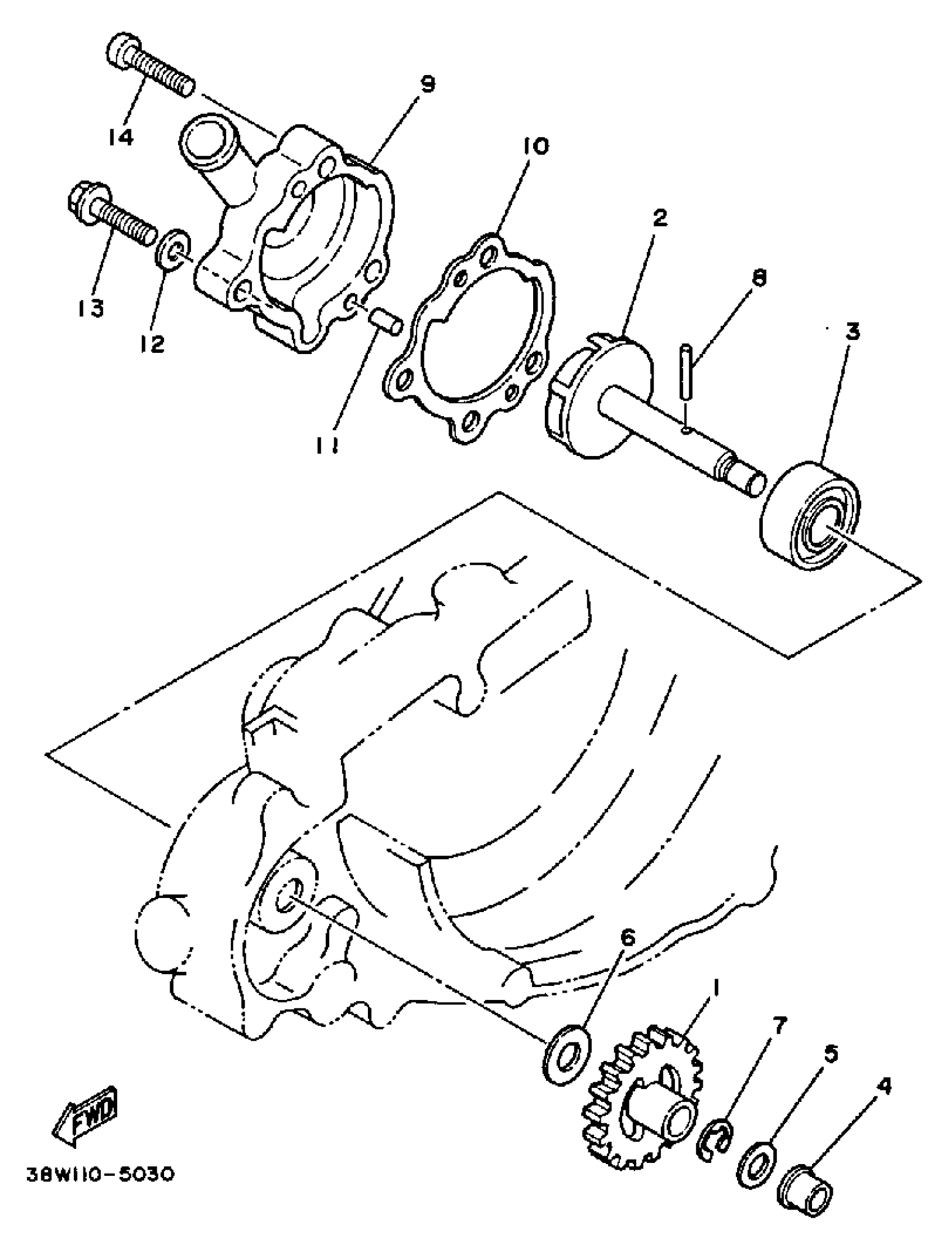

Yamaha YTZ250N 1985 WATER PUMP Diagram

GEAR, IMPELLER SHAFT

IMPELLER SHAFT ASSY

OIL SEAL

BUSH (214-17843-00)

WASHER, PLATE (5F7)

WASHER, PLATE(3GM)

CIRCLIP

PIN,DOWEL (137)

COVER, HOUSING

GASKET, COVER HOUSING

PIN,DOWEL (603)

GASKET (4V2)

BOLT, FLANGE

BOLT,SOCKET
