Description

Price

1

. TAILLIGHT UNIT ASSY

38W-84710-00-00

Unavailable

2

. LENS, TAILLIGHT

38W-84721-00-00

Unavailable

3

. BULB, METER 12V 38W

3F9-84744-00-XX

Unavailable

4

. TAILLIGHT UNIT ASSY

38W-84710-00-00

Unavailable

5

SCREW, PAN HEAD

(98502-04020-00)

Unavailable

6

WASHER, PLAIN (646)

92990-04600-00

$5.99

7

BRACKET, TAILLIGHT

38W-84702-01-00

Unavailable

8

DAMPER, TAIL 1

38W-84736-00-00

$6.99

9

COLLAR (1M1)

90387-06553-00

$9.49

10

WASHER, PLATE

90201-06380-00

$0.60

11

BOLT, HEXAGON

97017-06025-00

$4.24

12

WASHER, SPRING

92907-06100-00

$4.25

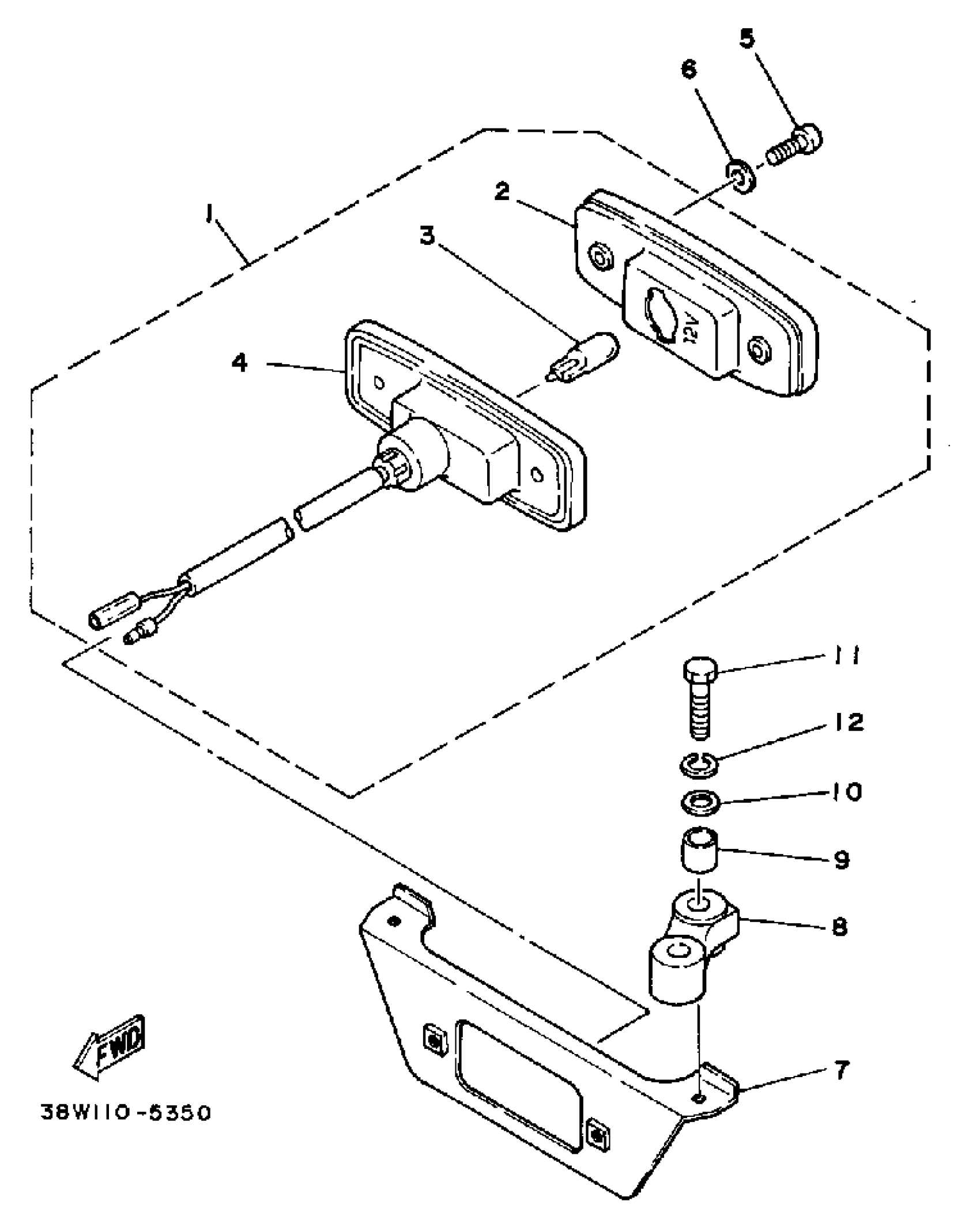

Yamaha YTZ250N 1985 TAILLIGHT Diagram

. TAILLIGHT UNIT ASSY

. LENS, TAILLIGHT

. BULB, METER 12V 38W

. TAILLIGHT UNIT ASSY

SCREW, PAN HEAD

WASHER, PLAIN (646)

BRACKET, TAILLIGHT

DAMPER, TAIL 1

COLLAR (1M1)

WASHER, PLATE

BOLT, HEXAGON

WASHER, SPRING
