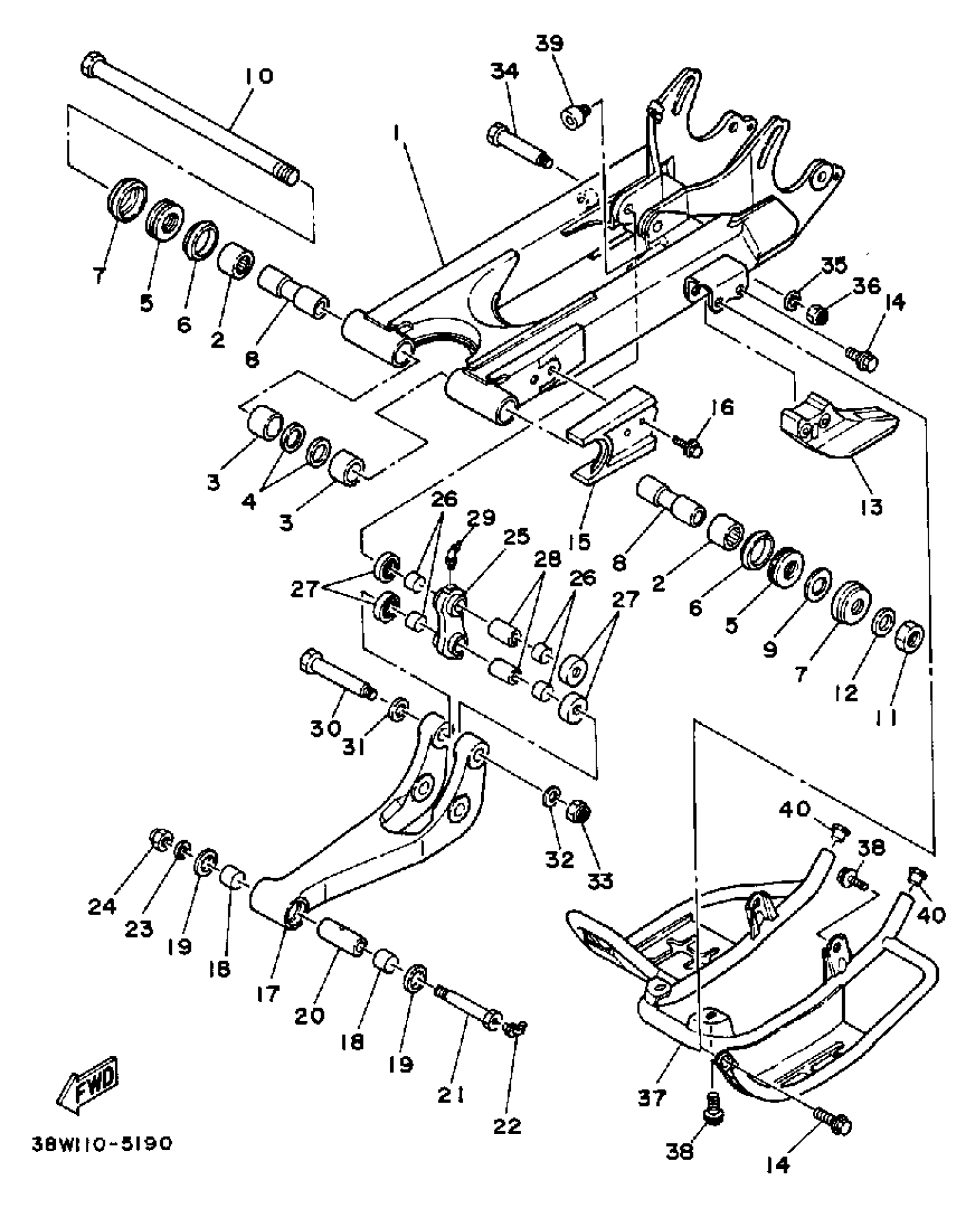

Yamaha YTZ250N 1985 SWING ARM-SUSPENSION Diagram
#
1
REAR ARM
38W-22110-00-35
Unavailable
3
BUSH, SPEC''L NYLON
90386-22097-00
Unavailable
4
OIL SEAL, SDO-TYPE
93109-22018-00
Unavailable
8
BUSH, SOLID
90381-16056-00
Unavailable
10
SHAFT, PIVOT
2GU-22141-00-00
Unavailable
15
PORTECTOR, CHAIN
38W-22147-00-00
Unavailable
16
BOLT, FLANGE
95817-06012-00
Unavailable
17
ARM, RELAY
(38W-2217A-00-00)
Unavailable
18
BUSH, BIMETAL FORMED (5X6)
90384-18157-00
Unavailable
19
OIL SEAL (2J5)
93109-18020-00
Unavailable
20
COLLAR(38W)
90387-121L6-00
Unavailable
21
BOLT (30X)
90109-10752-00
Unavailable
22
NIPPLE, GREASE (36X)
93700-06009-00
Unavailable
23
WASHER (7A9)
90201-100F7-00
Unavailable
24
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
25
ROD, CONNECTING 1
38W-2217F-00-00
Unavailable
26
BUSH, FORMED
90383-19026-00
Unavailable
27
COVER, THRUST 2
5X6-22129-00-00
Unavailable
28
COLLAR
90387-121L7-00
Unavailable
29
NIPPLE, GREASE (36X)
93700-06009-00
Unavailable
30
BOLT(38W)
90109-102A6-00
Unavailable
31
WASHER, PLATE
90201-12027-00
Unavailable
32
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
33
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
34
BOLT
90109-102A7-00
Unavailable
35
WASHER (7A9)
90201-100F7-00
Unavailable
36
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
37
COVER
38W-2219X-00-00
Unavailable
38
BOLT, FLANGE
95817-08012-00
Unavailable
39
STOPPER, MAIN STAND
4N0-27114-00-00
Unavailable
40
GROMMET, SEAT HANDLE
1J3-24742-00-00
Unavailable
