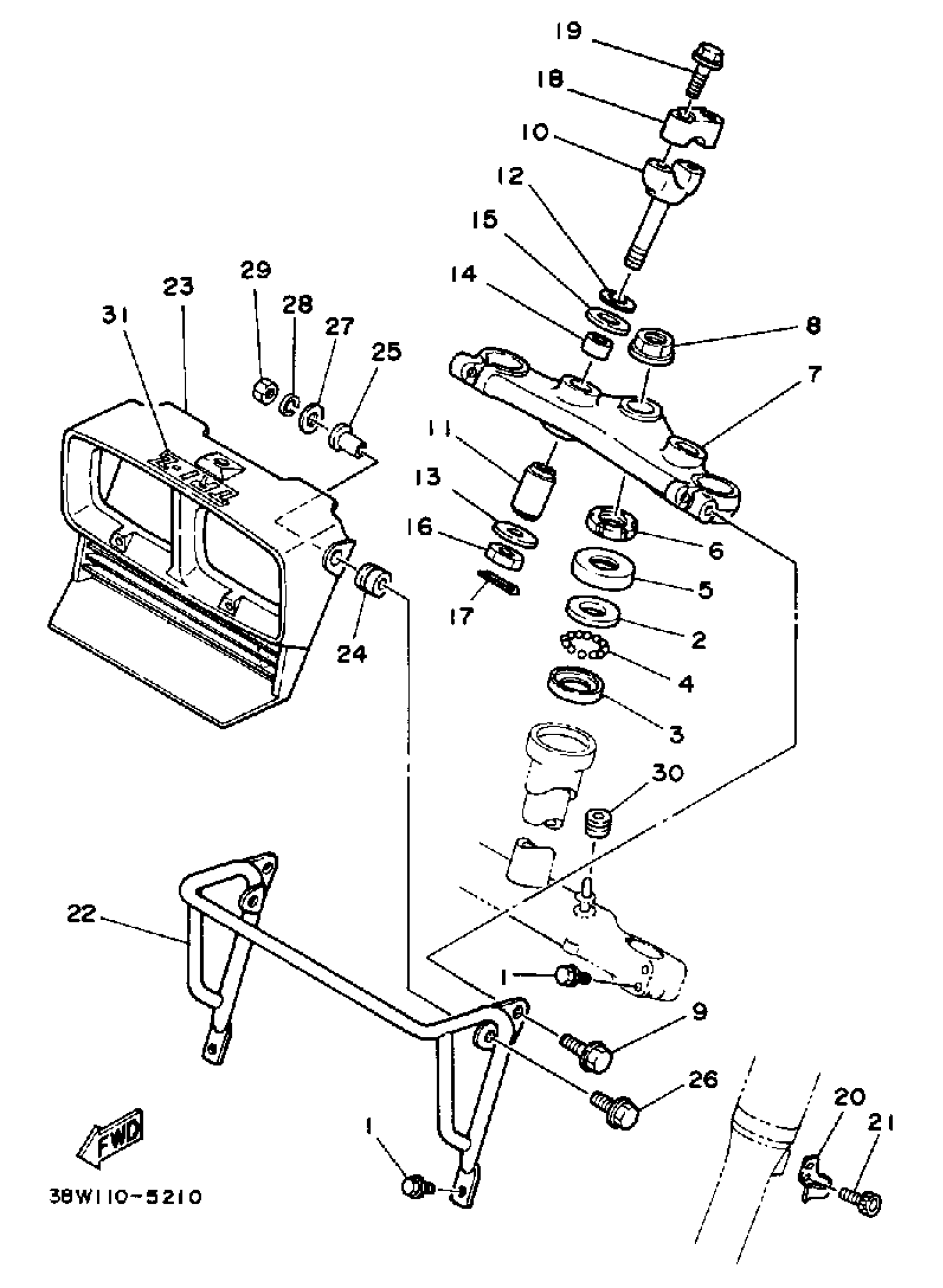

Yamaha YTZ250N 1985 STEERING Diagram
#
Description
Price
3
RACE,BALL 2
4FP-F3412-10-00
Unavailable
7
CROWN, HANDLE
(38W-23435-00-00)
Unavailable
8
NUT
90179-22330-00
Unavailable
10
HOLDER, HANDLE LOWER
4AA-23442-01-98
Unavailable
12
WASHER, PLATE
90201-123E8-00
Unavailable
16
NUT, U
90185-10037-00
Unavailable
17
PIN, COTTER
91490-20025-00
Unavailable
18
HOLDER, HANDLE UPPER
1E6-23441-00-00
Unavailable
19
BOLT, FLANGE
95817-08035-00
Unavailable
20
HOLDER, BRAKE HOSE2
(38W-25876-00-00)
Unavailable
21
BOLT,SOCKET
91317-06012-00
Unavailable
22
STAY, HEADLIGHT
38W-23174-00-00
Unavailable
23
PANEL, FRONT
1RX-23391-10-00
Unavailable
23
PANEL, FRONT
38W-23391-01-00
Unavailable
24
GROMMET (38W)
90480-18417-00
Unavailable
25
COLLAR
90387-06166-00
Unavailable
26
BOLT, FLANGE
95817-06030-00
Unavailable
27
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
NUT, HEXAGON
95380-06600-00
Unavailable
30
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
31
EMBLEM
38W-23395-00-00
Unavailable
31
EMBLEM
38W-23395-30-00
Unavailable
