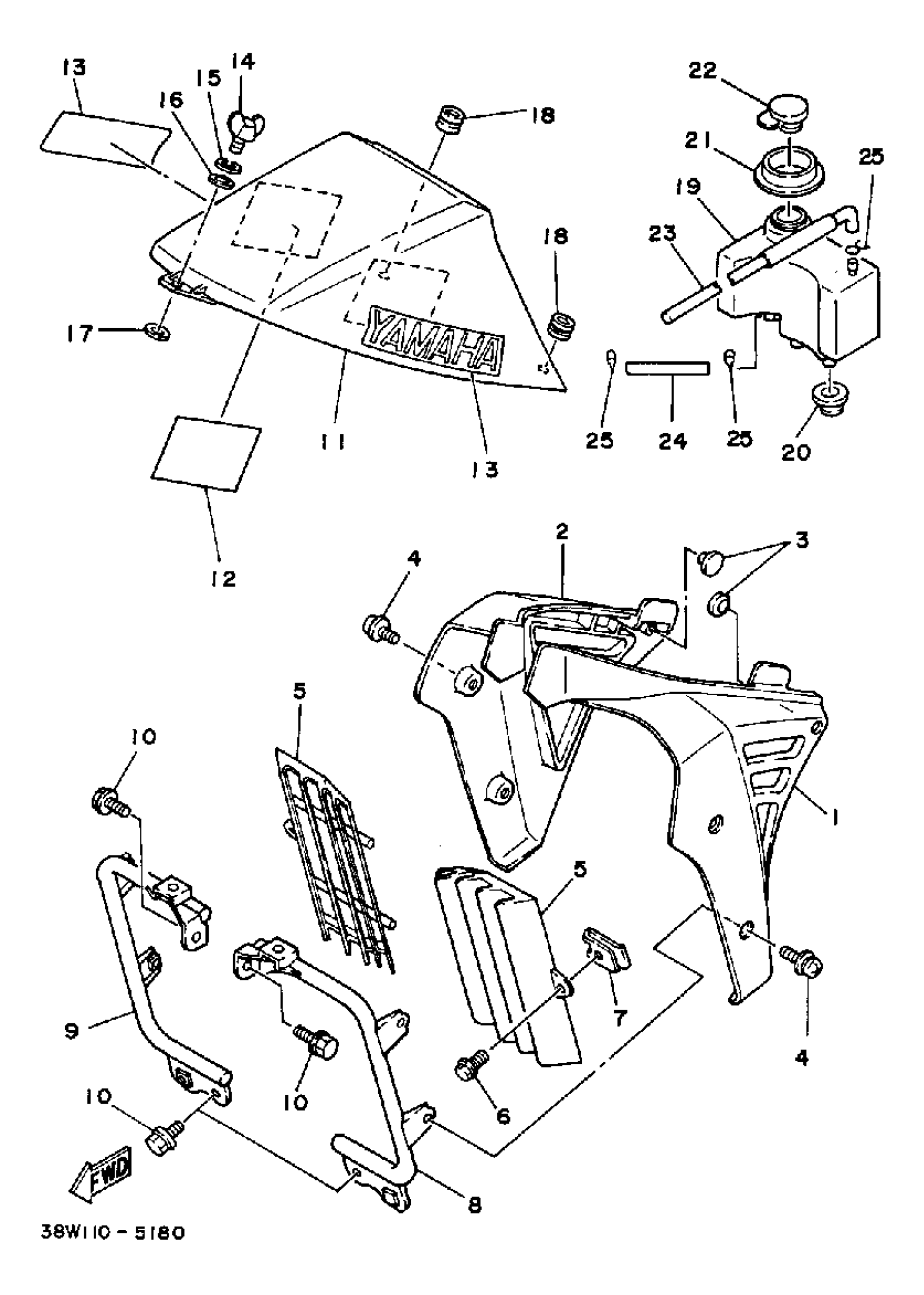

Yamaha YTZ250N 1985 SIDE COVER Diagram
#
Description
Price
1
COVER, SIDE 1
38W-21711-00-00
Unavailable
1
COVER, SIDE 1
38W-21711-10-00
Unavailable
2
COVER, SIDE 2
38W-21721-00-00
Unavailable
2
COVER, SIDE 2
38W-21721-10-00
Unavailable
4
SCREW, WITH WASHER (22W)
90159-05073-00
Unavailable
5
PANEL 1
38W-2172A-00-00
Unavailable
8
STAY, SIDE COVER 1
38W-2172E-00-00
Unavailable
9
STAY, SIDE COVER 2
38W-2174E-00-00
Unavailable
11
COVER, SIDE 3
38W-21731-00-00
Unavailable
13
EMBLEM 1
38W-21781-00-00
Unavailable
14
BOLT, WING (38W)
90122-06021-00
Unavailable
15
WASHER, SPRING
92995-06100-00
Unavailable
16
WASHER, PLATE
90201-06380-00
Unavailable
17
NUT, RATCH CLAMP (462)
90179-06013-00
Unavailable
18
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
19
TANK, RECOVERY
38W-21871-00-00
Unavailable
20
GROMMET (509)
90480-18171-00
Unavailable
21
GROMMET(38W)
90480-48399-00
Unavailable
22
CAP
10V-21875-00-00
Unavailable
23
BREATHER
(38W-21744-00-00)
Unavailable
24
HOSE (L865)
90445-09021-00
Unavailable
25
CLIP 101235600
90467-08003-00
Unavailable
