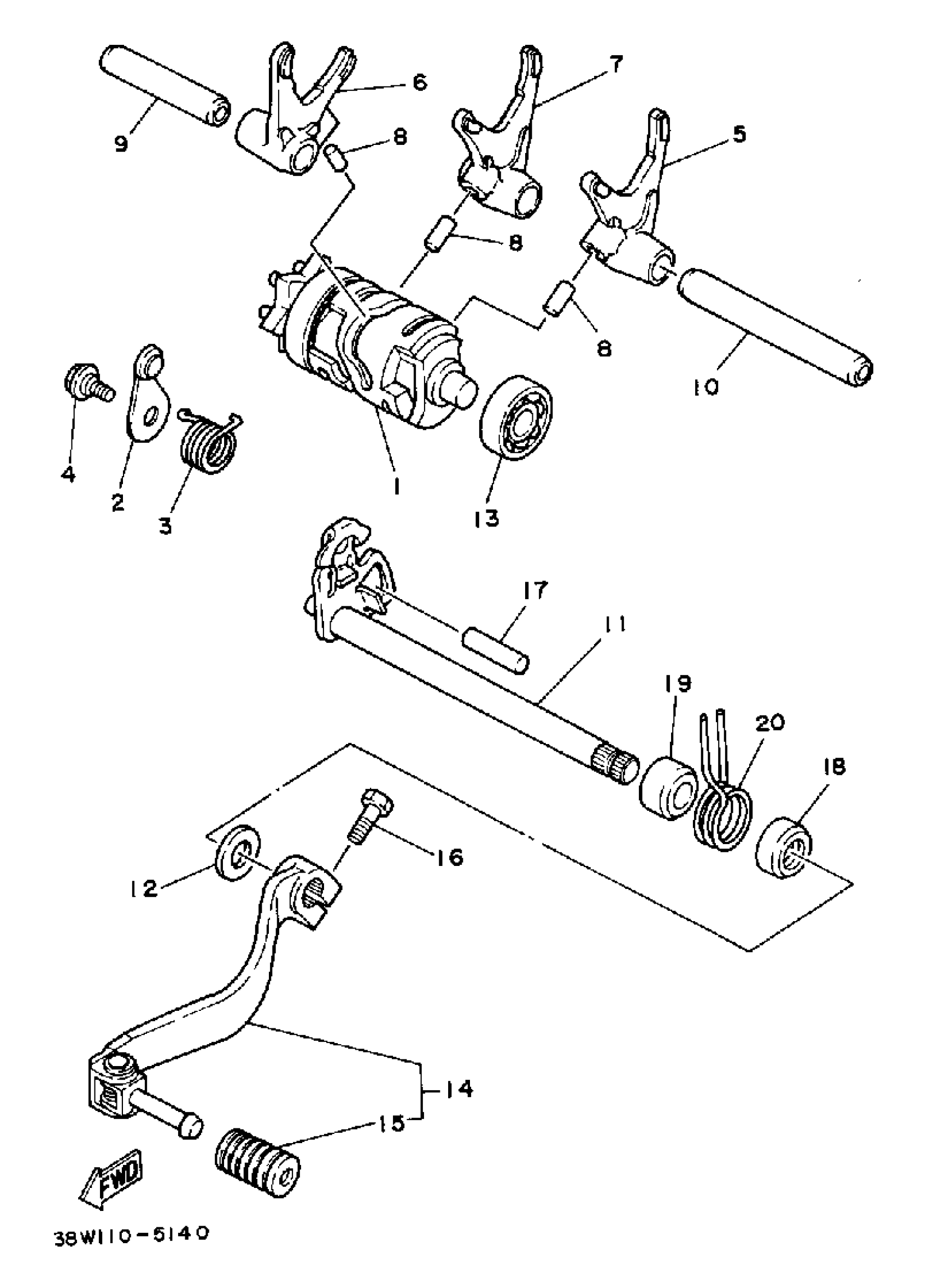

Yamaha YTZ250N 1985 SHIFT CAM-FORK Diagram
#
Description
Price
1
SHIFT CAM ASSEMBLY
24Y-18540-00-00
Unavailable
2
STOPPER LEVER ASSEMBLY
3R4-18140-00-00
Unavailable
3
SPRING, TORSION
90508-26421-00
Unavailable
5
FORK, SHIFT 1
5X5-18511-00-00
Unavailable
6
FORK, SHIFT 2
4V3-18512-00-00
Unavailable
7
FORK, SHIFT 3
5X5-18513-00-00
Unavailable
8
PIN, DOWEL (3R4)
93606-14154-00
Unavailable
9
BAR, SHIFT FORK GUIDE 1
4BA-18531-00-00
Unavailable
10
BAR, SHIFT FORK GUIDE 2
5X5-18535-01-00
Unavailable
12
WASHER, PLATE
90201-12657-00
Unavailable
14
SHIFT PEDAL ASSEMBLY
38W-18110-00-00
Unavailable
16
BOLT, HEXAGON
97017-06020-00
Unavailable
17
PIN, DOWEL
93608-25150-00
Unavailable
18
SEAL, OIL (30X)
93102-12321-00
Unavailable
19
SPACER
90560-12171-00
Unavailable
20
SPRING, TORSION
90508-29361-00
Unavailable
