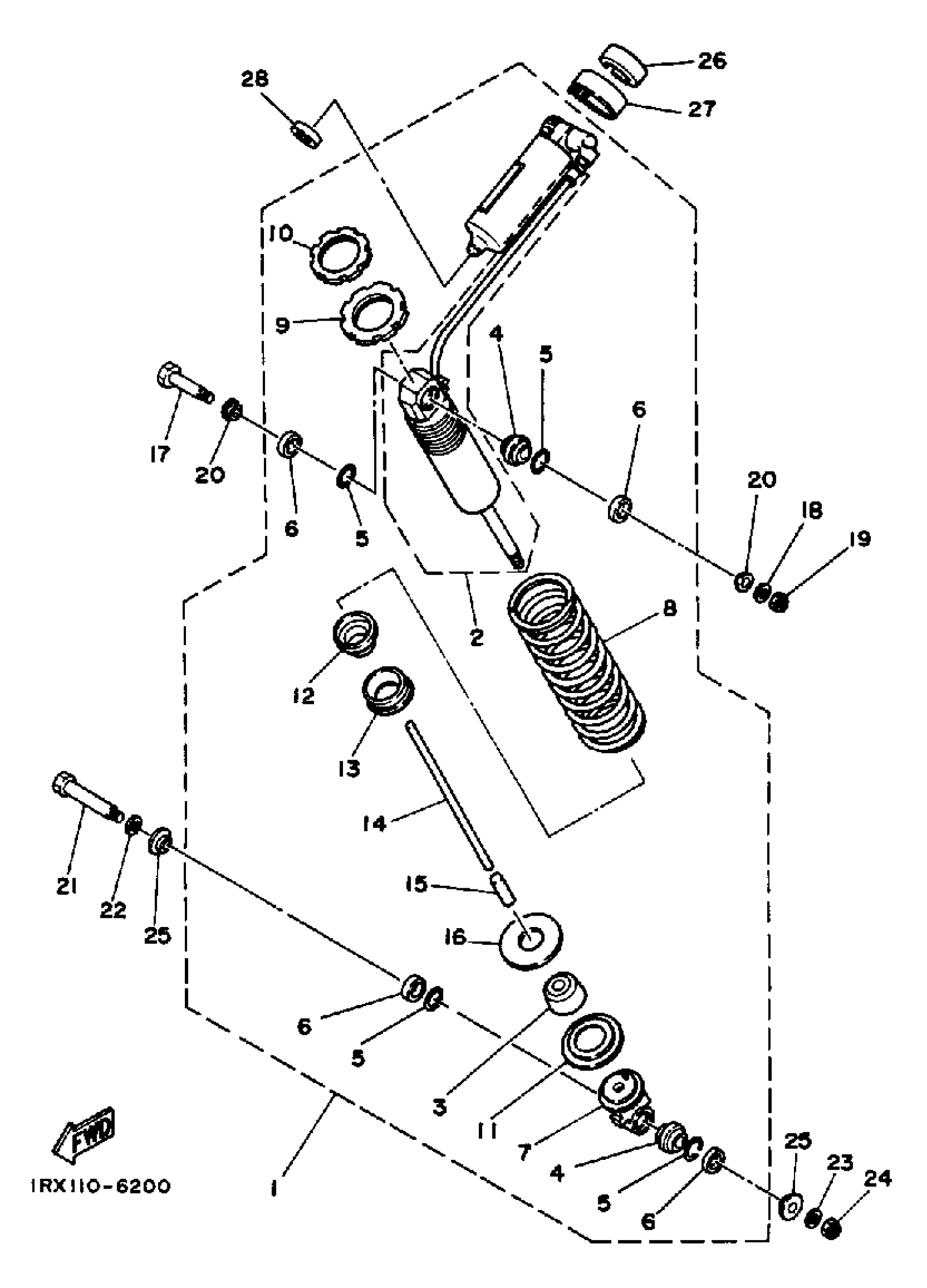

Yamaha YTZ250N 1985 REAR SHOCKS Diagram
#
Description
Price
1
SHK/ABS ASSEMBLY REARASSEMBLY, REAR
1RX-22210-00-6W
Unavailable
1
SHK/ABS ASSEMBLY REARASSEMBLY, REAR
1RX-22210-00-6W
Unavailable
2
. DAMPER SUB ASSEMBLY
1RX-22401-00-00
Unavailable
3
BUMP, STOP
(23X-22493-00-00)
Unavailable
7
. BRACKET, UPPER ASSEMBLY
38W-22209-09-00
Unavailable
8
SPRING, SHOCK
(38W-22212-00-26)
Unavailable
8
SPRING-YELLOW
38W-22212-10-P2
Unavailable
8
. SPRING, SHOCK (HARD) (38W-22212-20)
38W-22212-20-6W
Unavailable
12
SEAL,DUST
23X-22475-01-00
Unavailable
13
. CAP, CASE
38W-22472-01-00
Unavailable
14
. ROD, PUSH
38W-22489-00-00
Unavailable
15
. PIN, DOWEL
93605-20204-00
Unavailable
16
. SEAT 1
38W-22424-00-00
Unavailable
17
BOLT
90109-10704-00
Unavailable
18
WASHER (7A9)
90201-100F7-00
Unavailable
19
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
20
COLLAR (23X)
90387-127G8-00
Unavailable
21
BOLT(38W)
90109-102A6-00
Unavailable
22
WASHER, PLATE
90201-12027-00
Unavailable
23
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
24
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
25
COLLAR (23X)
90387-126H8-00
Unavailable
26
DAMPER, SUB TANK
24X-22261-00-00
Unavailable
27
HOLDER, SUB TANK
24X-22262-00-00
Unavailable
28
GROMMET
90480-25381-00
Unavailable
