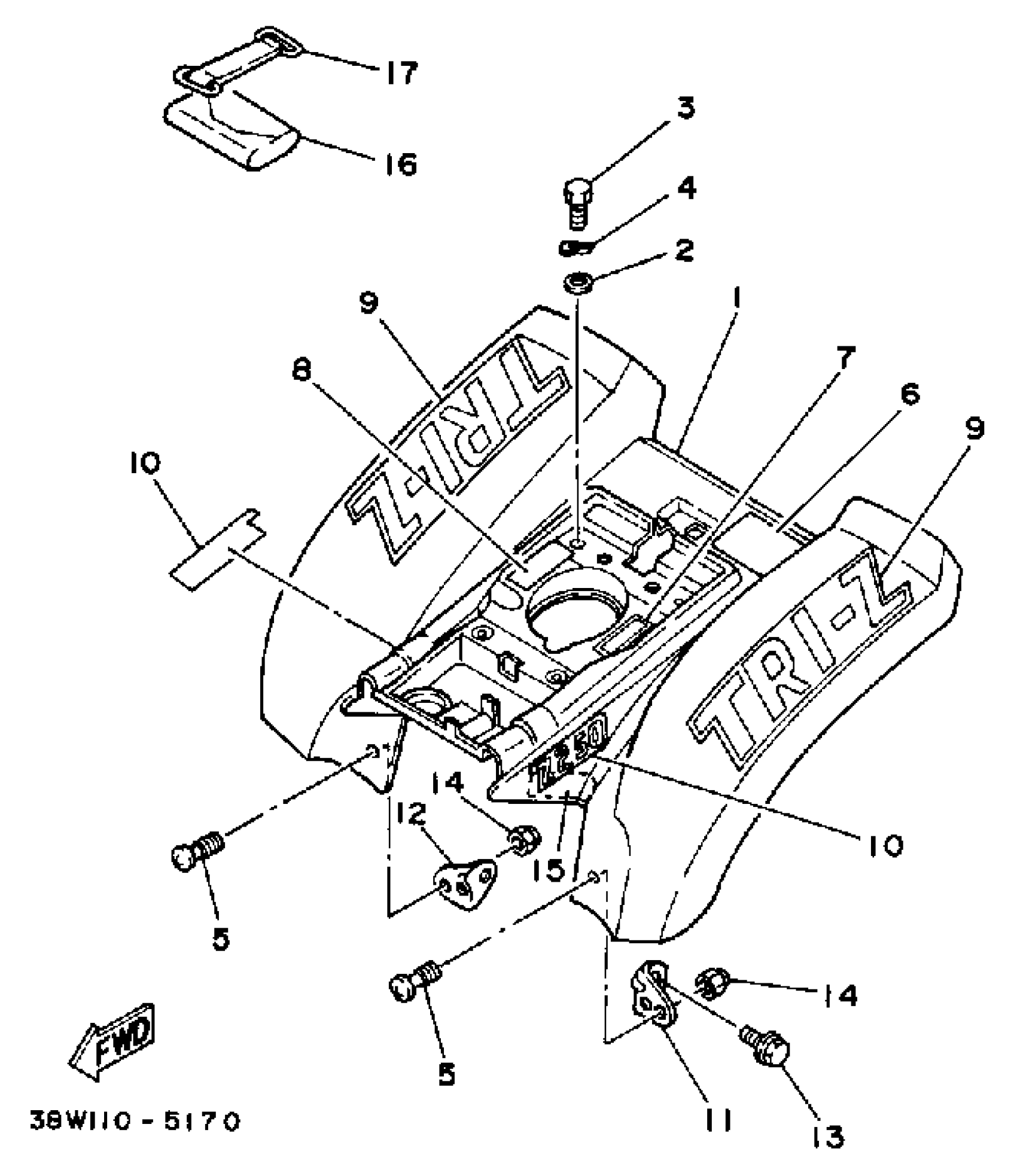

Yamaha YTZ250N 1985 REAR FENDER Diagram

#

Description

Price

1

FENDER, REAR

1RX-21611-10-00

Unavailable

1

FENDER, REAR

38W-21611-01-00

Unavailable

2

WASHER, PLATE

90201-06086-00

$7.49

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

WASHER(6TA)

92907-06700-00

$1.86

5

SCREW(3JM)

90149-06306-00

$8.49

6

LABEL, SAFETY

(38W-21659-00-00)

Unavailable

7

LABEL, CAUTION

5X9-2415A-00-00

Unavailable

8

LABEL, CAUTION

(38W-21696-00-00)

Unavailable

9

EMBLEM 1

38W-2163G-00-00

Unavailable

9

EMBLEM 1

38W-2163G-30-00

Unavailable

10

EMBLEM 2

38W-2163H-00-00

Unavailable

11

STAY, FENDER 1

38W-21613-00-00

Unavailable

11

EMBLEM 2

38W-2163H-30-00

Unavailable

12

STAY, FENDER 2

38W-21614-00-00

Unavailable

13

BOLT, FLANGE

95817-06012-00

Unavailable

14

NUT, SELF-LOCKING

95617-06100-00

Unavailable

15

PROTECTOR

(38W-21652-00-00)

Unavailable

16

TOOL KIT

1W2-W2810-00-00

Unavailable

17

BAND, TOOL

21V-21376-00-00

Unavailable
