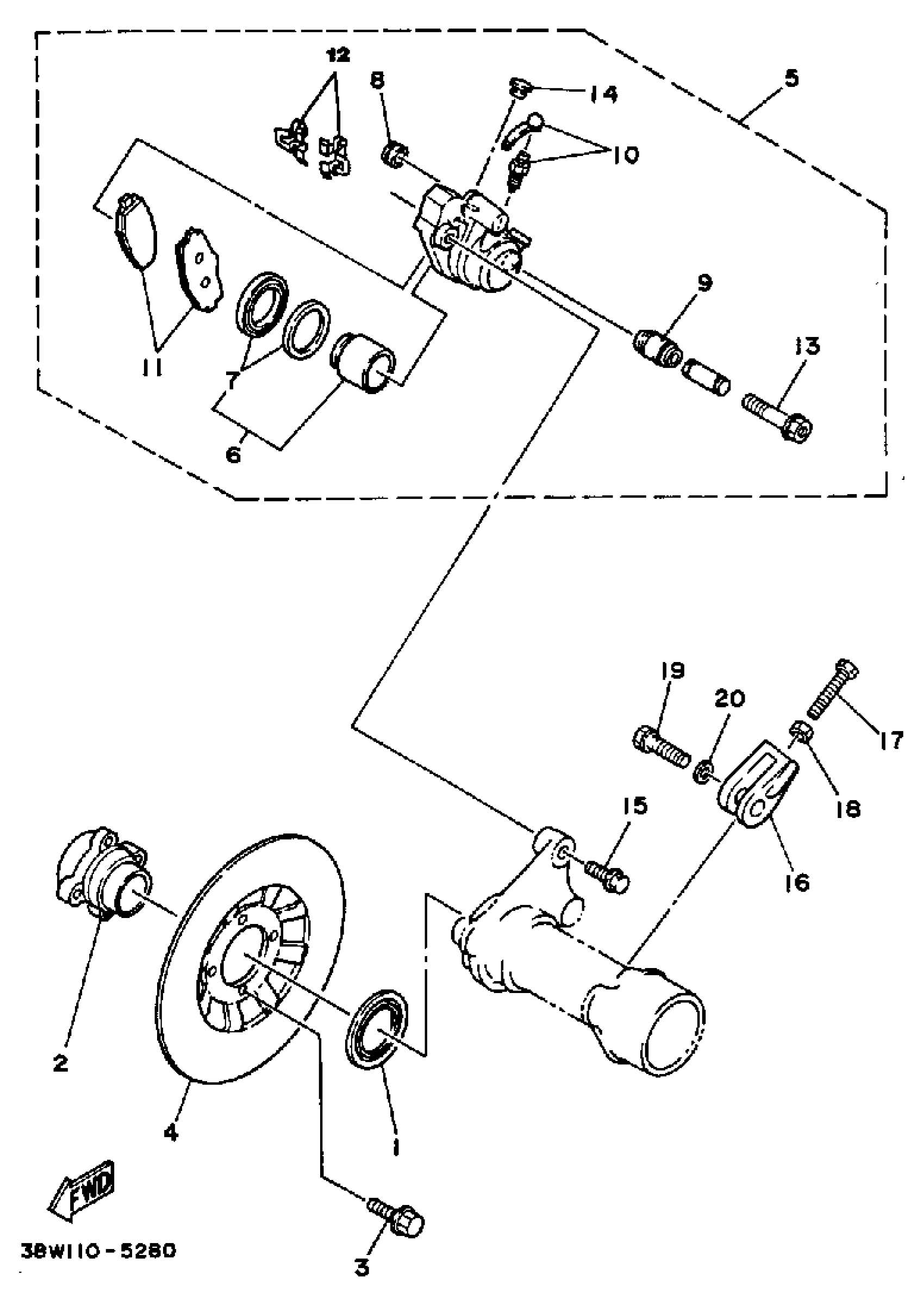

Yamaha YTZ250N 1985 REAR BRAKE CALIPER Diagram
#
Description
Price
1
COVER, HUB DUST
38W-25367-00-00
Unavailable
2
BRACKET, DISC
38W-25712-00-00
Unavailable
3
BOLT, WASHER BASED
90105-08233-00
Unavailable
4
DISC,BRAKE
1UY-25831-50-00
Unavailable
5
CALIPER ASSY
34X-2580T-00-00
Unavailable
12
SUPPORT, PAD
34X-25919-00-00
Unavailable
15
BOLT, WASHER/BASED
90105-10356-00
Unavailable
16
PULLER, CHAIN 1
1UY-25388-00-00
Unavailable
17
BOLT(4SR)
90101-08777-00
Unavailable
18
NUT(6L2)
95333-08600-00
Unavailable
19
BOLT, W/WASHER (38W)
90119-10109-00
Unavailable
20
WASHER, PLATE (29U)
90201-104G0-00
Unavailable
