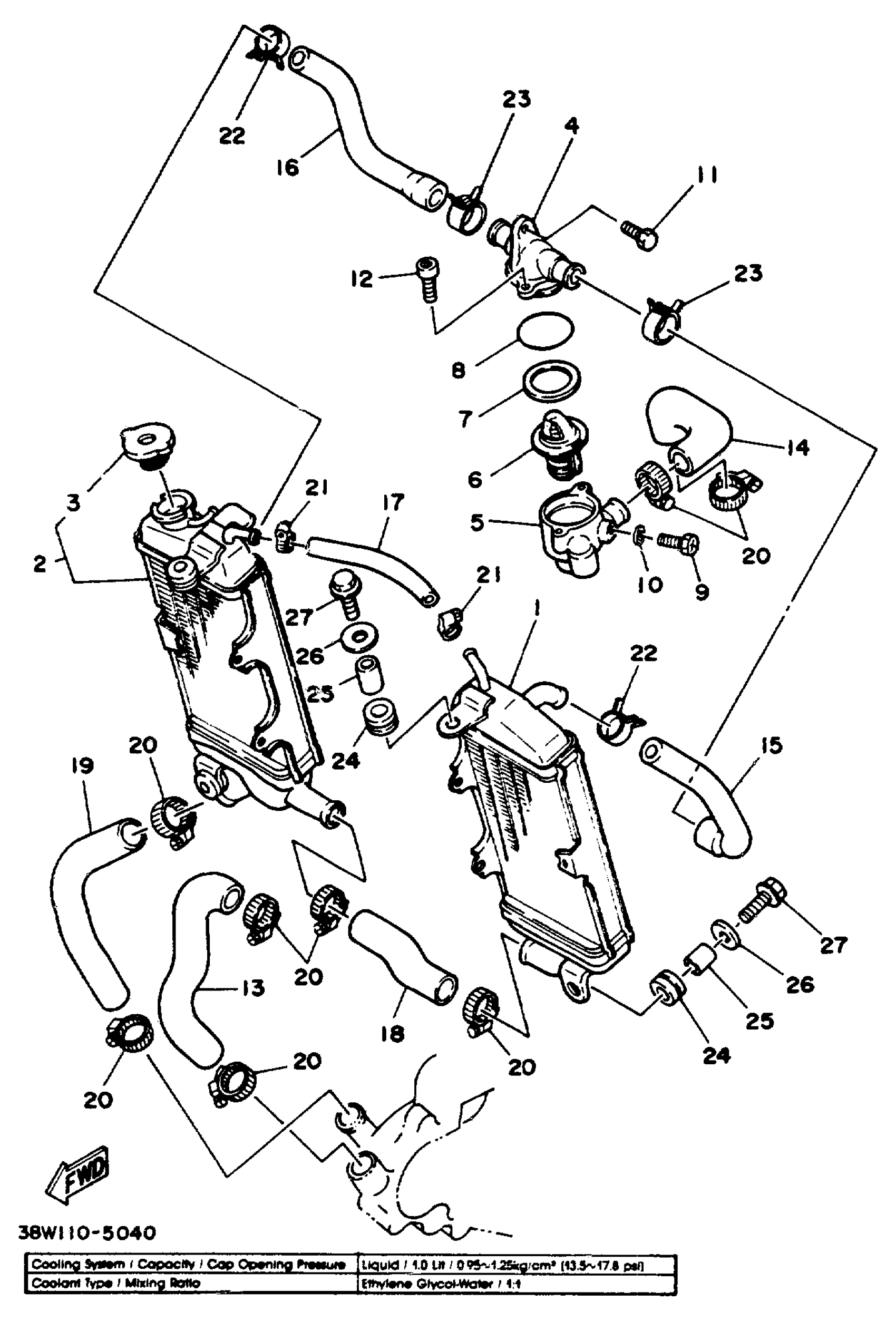

Yamaha YTZ250N 1985 RADIATOR-HOSE Diagram

#

Description
Price

1

RADIATOR ASSEMBLY

(38W-12460-00-00)

Unavailable

2

RADIATOR ASSEMBLY 2

38W-1240A-00-00

Unavailable

3

CAP, RADIATOR

4FL-12462-00-00

$62.99

4

THERMOSTAT CVR ASSEMBLYASSY

38W-1240G-00-00

Unavailable

5

HOUSING, THERMOSTAT

38W-12417-00-00

Unavailable

6

THERMOSTAT ASSEMBLY

38W-12410-00-00

Unavailable

7

SEAL, THERMOSTAT

33M-12412-00-00

Unavailable

8

O-RING(36Y)

93210-40659-00

Unavailable

9

SCREW

90153-06029-00

$10.49

10

GASKET 256113960000

90430-06014-00

Unavailable

11

SCREW (5G3)

90153-06034-00

$7.49

12

BOLT,SOCKET

91317-06016-00

$1.25

13

PIPE 1

38W-12481-00-00

Unavailable

14

PIPE 2

38W-12482-00-00

Unavailable

15

PIPE 3

38W-12483-00-00

Unavailable

16

PIPE 4

38W-12484-00-00

Unavailable

17

PIPE 5

38W-12485-00-00

Unavailable

18

PIPE 6

38W-12476-00-00

Unavailable

19

PIPE 7

38W-12477-00-00

Unavailable

20

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

21

CLAMP, HOSE

90460-12268-00

Unavailable

22

CLIP (4V3)

90467-20050-00

Unavailable

23

CLIP(34X)

90467-22097-00

Unavailable

24

GROMMET (29L)

90480-15363-00

Unavailable

25

COLLAR (1T2)

90387-07598-00

Unavailable

26

WASHER, PLATE

90201-06086-00

Unavailable

27

. BOLT, FLANGE

95027-06020-00

Unavailable
