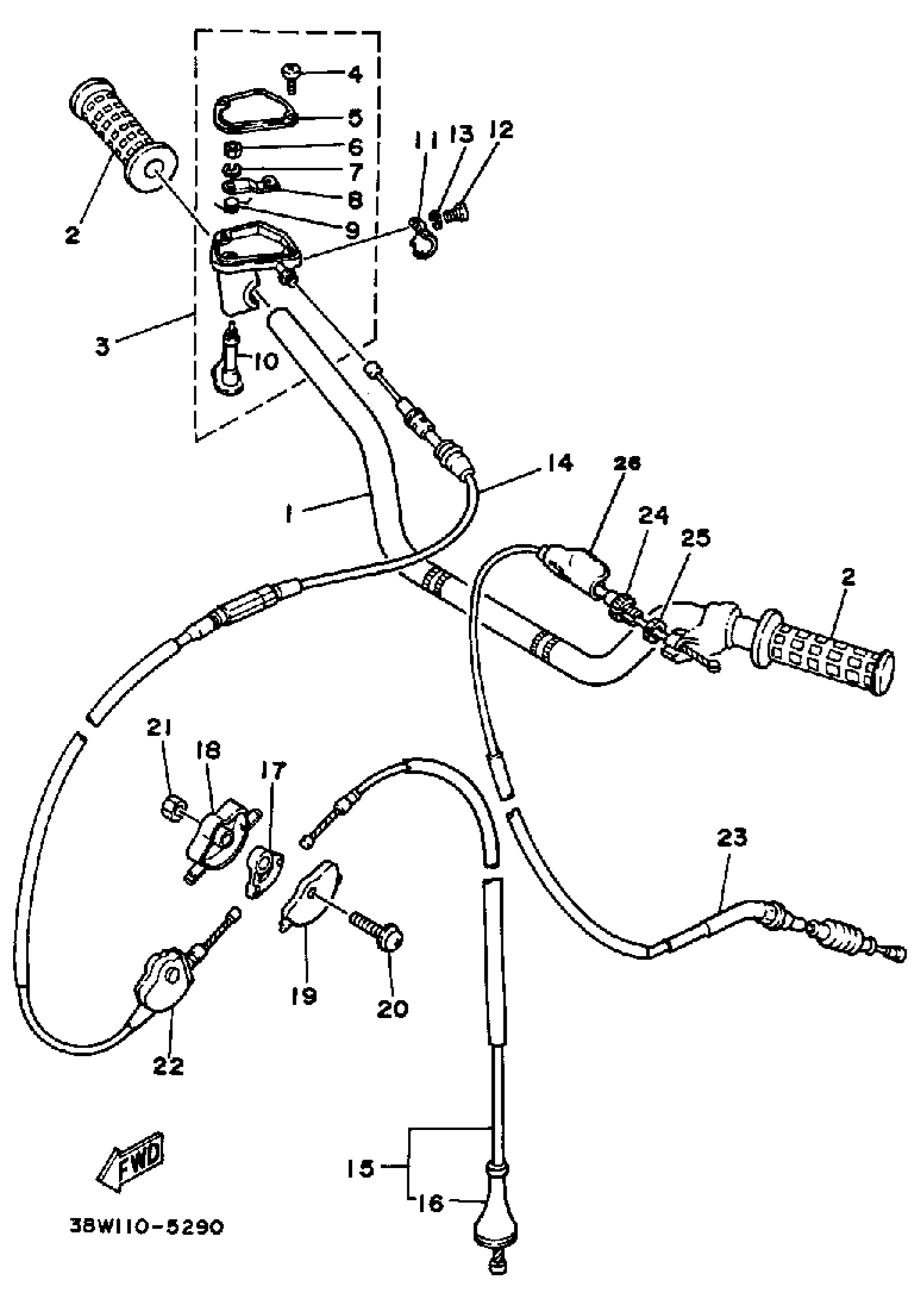

Yamaha YTZ250N 1985 HANDLEBAR-CABLE Diagram

#

Description
Price

1

HANDLEBAR

38W-26111-00-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

THROTTLE, LEVER ASSEMBLY (38W-26250-00)

29U-26250-00-00

Unavailable

4

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

5

. CAP, GEAR

21V-2628F-00-00

Unavailable

6

NUT, HEXAGON (663)

95380-05600-00

$8.49

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

. ARM, THROTTLE

21V-2625H-00-00

Unavailable

9

. SPRING, TORSION

90508-10597-00

Unavailable

10

. LEVER, THROTTLE (38W-2625G-00)

29U-2625G-00-00

Unavailable

11

H0LDER, LEVER L0WER 1

38V-82913-00-00

$23.99

12

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

13

WASHER(3SX)

92907-05100-00

$8.49

14

CABLE, THROTTLE 1

38W-26311-00-00

Unavailable

15

CABLE, THROTTLE 2

38W-26312-00-00

Unavailable

16

. CAP, RUBBER

500-26329-01-00

Unavailable

17

PIECE, CONNECTING

38W-26263-00-00

Unavailable

18

CONNECTOR, CABLE

38W-26261-00-00

Unavailable

19

CAP, CBLE CONNECTOR

38W-26262-00-00

Unavailable

20

SCREW, WITH WASHER

90159-05101-00

Unavailable

21

NUT, U

95617-05100-00

Unavailable

22

BOOT, CYLINDER

38W-26266-00-00

Unavailable

23

CABLE,CLUTCH

38W-26335-00-00

Unavailable

24

BOLT (23X)

90123-08090-00

Unavailable

25

NUT

90179-08401-00

Unavailable

26

COVER, LEVER

498-26372-00-00

Unavailable
