Description

Price

1

H0LDER, LEVER 1

38V-82911-00-00

$38.99

2

LEVER 1

23X-83912-02-00

$27.99

3

H0LDER, LEVER L0WER 1

38V-82913-00-00

$23.99

4

BOLT(3GB)

90109-061F3-00

$7.49

5

WASHER, PLATE 1562722600

90201-08083-00

$9.49

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

8

WASHER(3SX)

92907-05100-00

$8.49

9

LEVER 2

38W-83922-01-00

$62.99

10

BOLT (4L0)

90109-06577-00

$5.60

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

SCREW (2L0)

90149-06131-00

$8.49

13

NUT HEXAGON 306839270000

90170-06010-00

$8.49

14

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

15

SWITCH HANDLE 2

38W-83975-09-00

Unavailable

16

SCREW, PAN HEAD

98517-05030-00

Unavailable

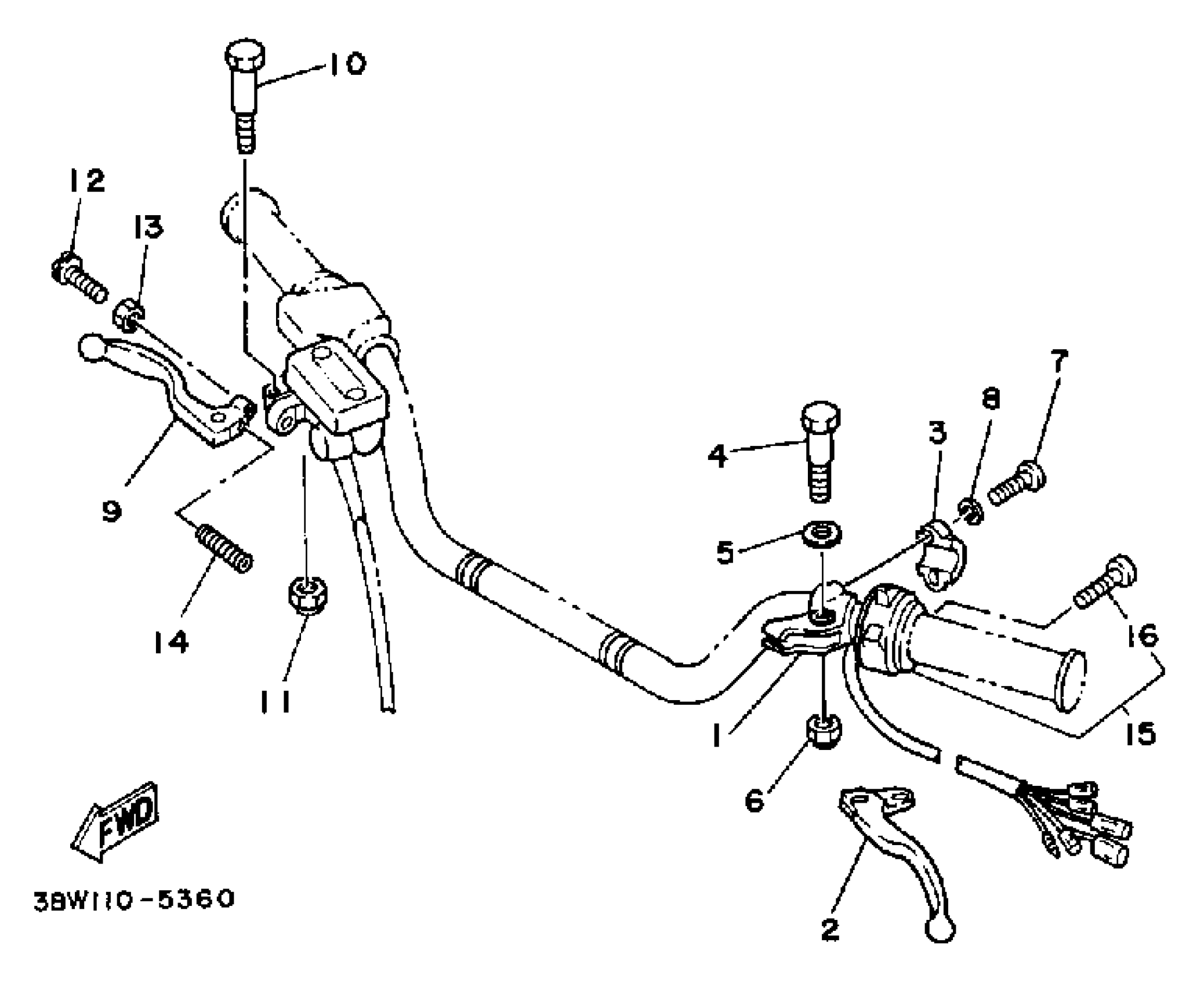

Yamaha YTZ250N 1985 HANDLE SWITCH-LEVER Diagram

H0LDER, LEVER 1

LEVER 1

H0LDER, LEVER L0WER 1

BOLT(3GB)

WASHER, PLATE 1562722600

NUT, SELF-LOCKING

SCREW, PAN HEAD(4MY)

WASHER(3SX)

LEVER 2

BOLT (4L0)

NUT, SELF-LOCKING

SCREW (2L0)

NUT HEXAGON 306839270000

SPRING COMPRESSION306839240000

SWITCH HANDLE 2

SCREW, PAN HEAD
