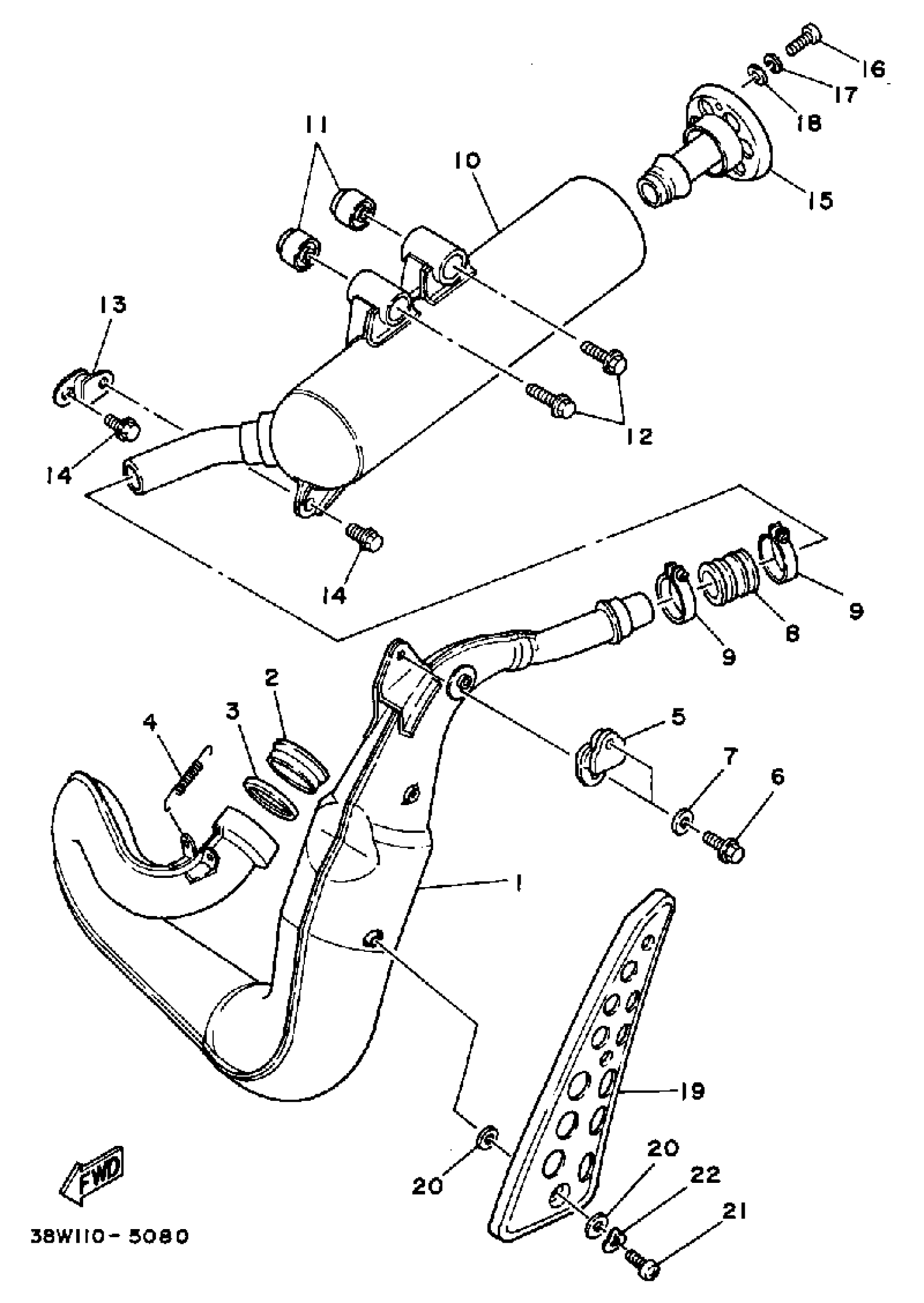

Yamaha YTZ250N 1985 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

38W-14610-00-00

Unavailable

2

GASKET, EXST PIPE

38W-14613-00-00

Unavailable

3

GASKET, EXHAUST

3R4-14613-00-00

$31.99

4

SPRING, TENSION (1W4)

90507-20030-00

$14.99

5

STAY, MUFFLER 1

24Y-14771-00-00

Unavailable

6

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

7

WASHER (853)

90201-08326-00

$8.49

8

GASKET, MUFFLER JOINT

1M1-14714-00-00

Unavailable

9

CLAMP, HOSE (38W)

90460-44272-00

Unavailable

10

SILENCER, EXHAUST

38W-14753-00-00

Unavailable

11

DAMPER, FOOTREST

29L-27414-02-00

$31.99

12

BOLT, FLANGE

95817-08040-00

$7.49

13

STAY, MUFFLER 1

565-14771-01-00

$18.49

14

BOLT, FLANGE

95817-06016-00

$2.75

15

PIPE, OUTLET

38W-14752-00-00

Unavailable

16

SCREW, PAN

98517-06012-00

Unavailable

17

WASHER, SPRING

92907-06100-00

Unavailable

18

WASHER(6TA)

92907-06600-00

Unavailable

19

PROTC, EXHAUST PIPE

(38W-14628-00-00)

Unavailable

20

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

21

SCREW, BINDING

98907-06010-00

Unavailable

22

WASHER, WAVE(3RW)

90206-06090-00

Unavailable
