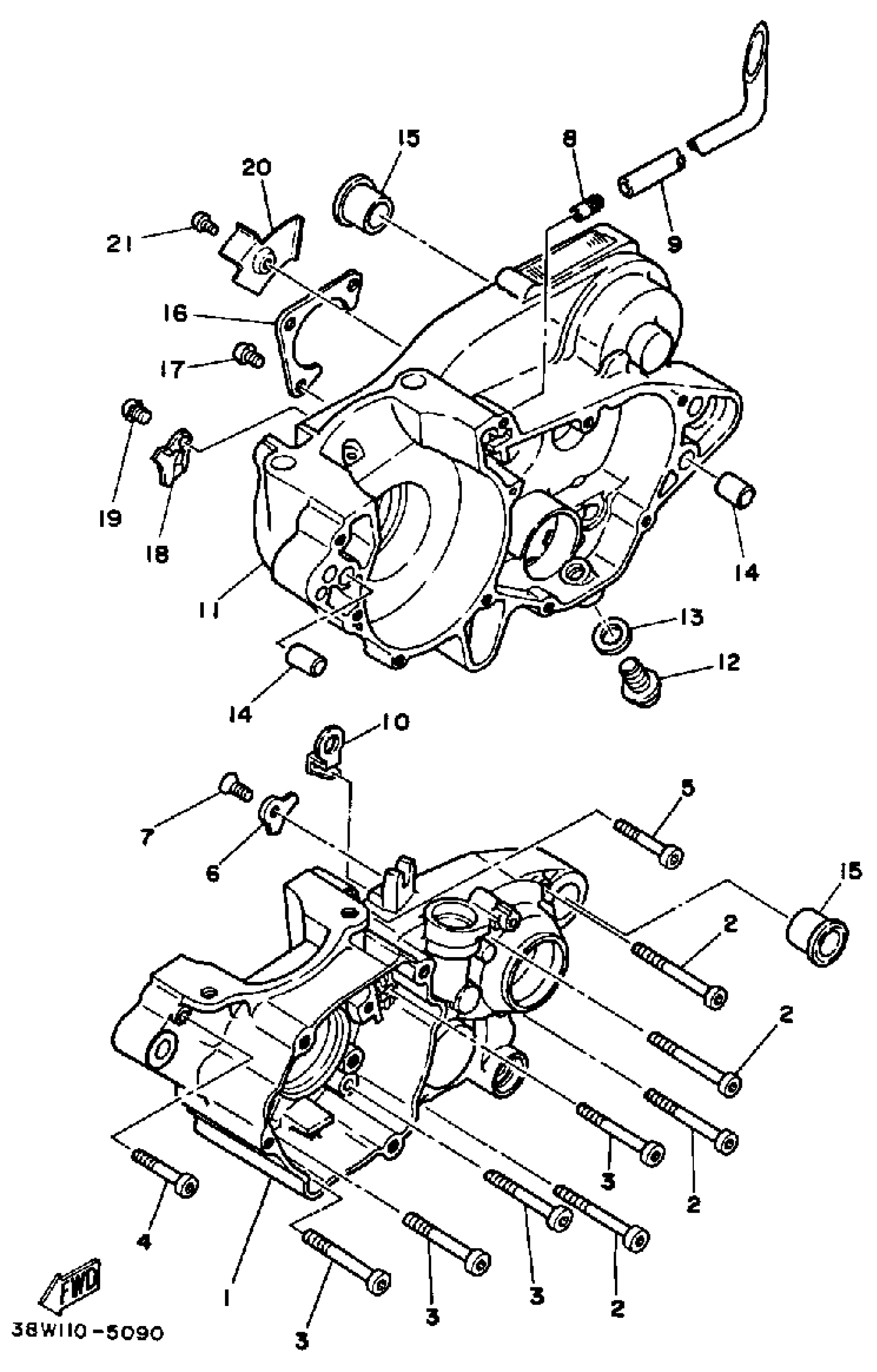

Yamaha YTZ250N 1985 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE 1
5X5-15111-03-00
Unavailable
7
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
Unavailable
8
. CONNECTOR, SUCTION PIPE
137-13115-01-00
Unavailable
11
CRANKCASE 2
5X5-15121-01-00
Unavailable
15
COLLAR
90387-160H4-00
Unavailable
16
PLATE, BEARING COVER
23X-15381-00-00
Unavailable
17
SCREW, PAN
98517-06012-00
Unavailable
18
HOLDER
3R4-15118-00-00
Unavailable
19
SCREW, PAN
98507-08010-00
Unavailable
20
PLATE
5X5-15113-00-00
Unavailable
21
SCREW, PAN
98517-06012-00
Unavailable
