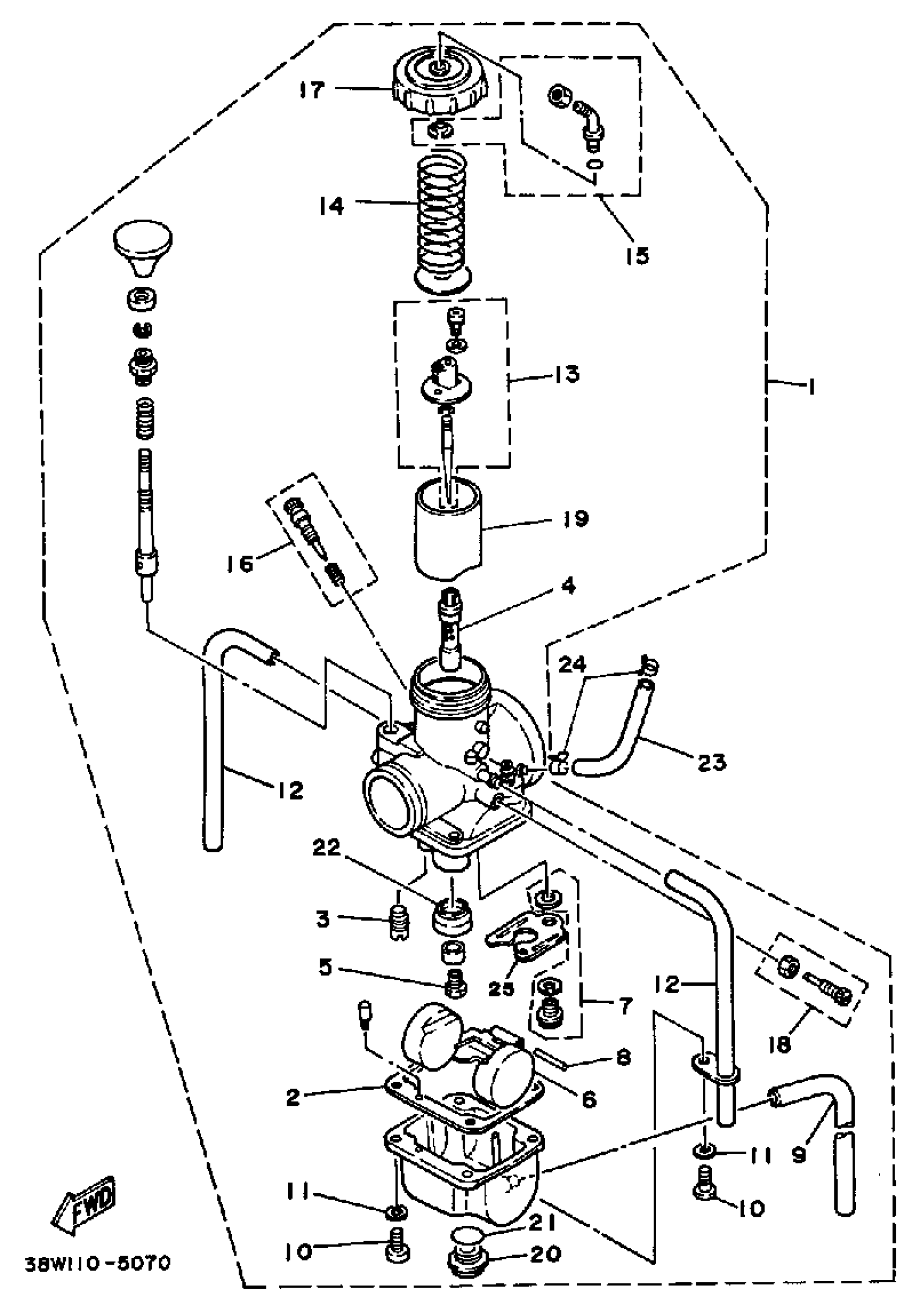

Yamaha YTZ250N 1985 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY

38W-14101-01-00

Unavailable

2

GASKET, FLOAT CHAMBER

483-14184-00-00

$22.99

3

. JET, PILOT (#45)

193-14142-45-A1

Unavailable

4

. NOZZLE, MAIN

38W-14141-42-00

Unavailable

5

JET, MAIN #470

137-14143-94-00

$6.99

6

. FLOAT

24X-14185-00-00

Unavailable

7

. NEEDLE VALVE SEAT

38W-14107-15-00

Unavailable

8

PIN, FLOAT

537-14186-00-00

$7.99

9

HOSE (L340)

90445-08684-00

$4.29

10

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

HOSE

89A-14987-00-00

$16.49

13

. NEEDLE SET

38W-1490J-00-00

Unavailable

14

. SPRING, THROTTLE VALVE

431-14131-00-00

Unavailable

15

. CBLE AJST SCRW SETSCREW SET

24X-14106-00-00

Unavailable

16

AIR SCREW SET

23X-14104-00-00

Unavailable

17

. TOP, MIXING CHAMBER

3R3-14158-00-00

Unavailable

18

THROTTLE SCREW SET

40T-14103-00-00

Unavailable

19

. VALVE THROTTLE 1

3R3-14112-20-00

Unavailable

20

. PLUG, SCREW

2K6-14115-00-00

Unavailable

21

O-RING

2K6-14147-00-00

Unavailable

22

. WASHER, MAIN JET

3R3-14153-00-00

Unavailable

23

PIPE

38W-14197-00-00

Unavailable

24

CLIP (8A1)

90467-09026-00

Unavailable

25

. PLATE

483-14146-00-00

Unavailable
