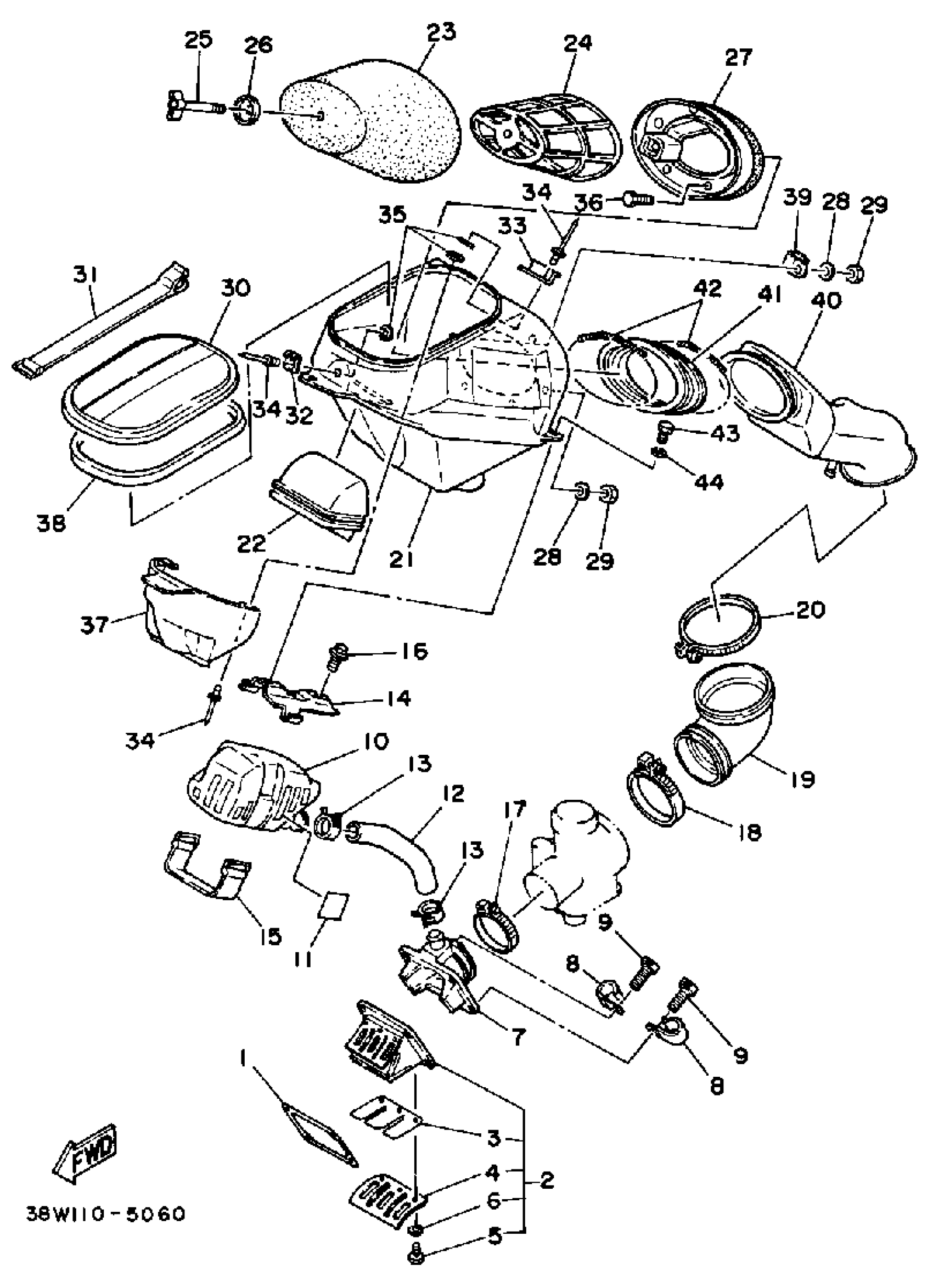

Yamaha YTZ250N 1985 AIR FILTER Diagram
#
2
REED VALVE ASSEMBLY
3R5-13610-00-00
Unavailable
4
. STOPPER, REED VALVE
2X5-13616-00-00
Unavailable
7
JOINT, CARBURETOR
38W-13565-00-00
Unavailable
8
CLAMP
90465-08028-00
Unavailable
9
BOLT,SOCKET
91317-06020-00
Unavailable
10
CHAMBER, AIR
38W-13581-00-00
Unavailable
11
EMBLEM
4V3-1441K-00-00
Unavailable
12
PIPE
38W-14465-00-00
Unavailable
14
STAY, CHAMBER
38W-2415F-00-00
Unavailable
16
BOLT, FLANGE
95812-06010-00
Unavailable
17
CLAMP HOSE 278144550000
90460-49058-00
Unavailable
18
HOSE CLAMP ASSY
90450-64004-00
Unavailable
19
JOINT, AIR CLNR 1
38W-14453-00-00
Unavailable
20
CLAMP, HOSE
90460-80229-00
Unavailable
21
CASE, AIR CLEANER 1
38W-14411-00-00
Unavailable
22
DUCT
38W-14437-00-00
Unavailable
23
ELEMENT, AIR CLNR
38W-14451-00-00
Unavailable
24
GUIDE, ELEMENT
38W-14458-00-00
Unavailable
25
BOLT, WING
90122-06013-00
Unavailable
26
WASHER (4H7)
90209-06096-00
Unavailable
27
HOLDER, GUIDE
38W-14459-00-00
Unavailable
28
. WASHER, PLAIN
92990-05200-00
Unavailable
29
NUT, U
95617-05100-00
Unavailable
30
CAP, CLEANER CASE 1
38W-14412-01-00
Unavailable
31
BAND
5X3-14455-00-00
Unavailable
32
PLATE, CLEANER CASE FITTING
34K-14484-00-00
Unavailable
33
HOOK
26A-14436-00-00
Unavailable
34
RIVET, BLIND
90267-40029-00
Unavailable
35
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
36
BOLT, HEXAGON
97313-05014-00
Unavailable
37
COVER, CLNR CASE 1
(38W-1441A-00-00)
Unavailable
38
MOLD, LEG SHIELD
38W-28339-00-00
Unavailable
39
CLAMP
90465-08028-00
Unavailable
40
JOINT
38W-14454-00-00
Unavailable
41
JOINT, AIR CLNR 2
38W-14463-00-00
Unavailable
42
SPRING, TENSION (38)
90506-06342-00
Unavailable
43
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
44
WASHER, PLATE
90201-06380-00
Unavailable
