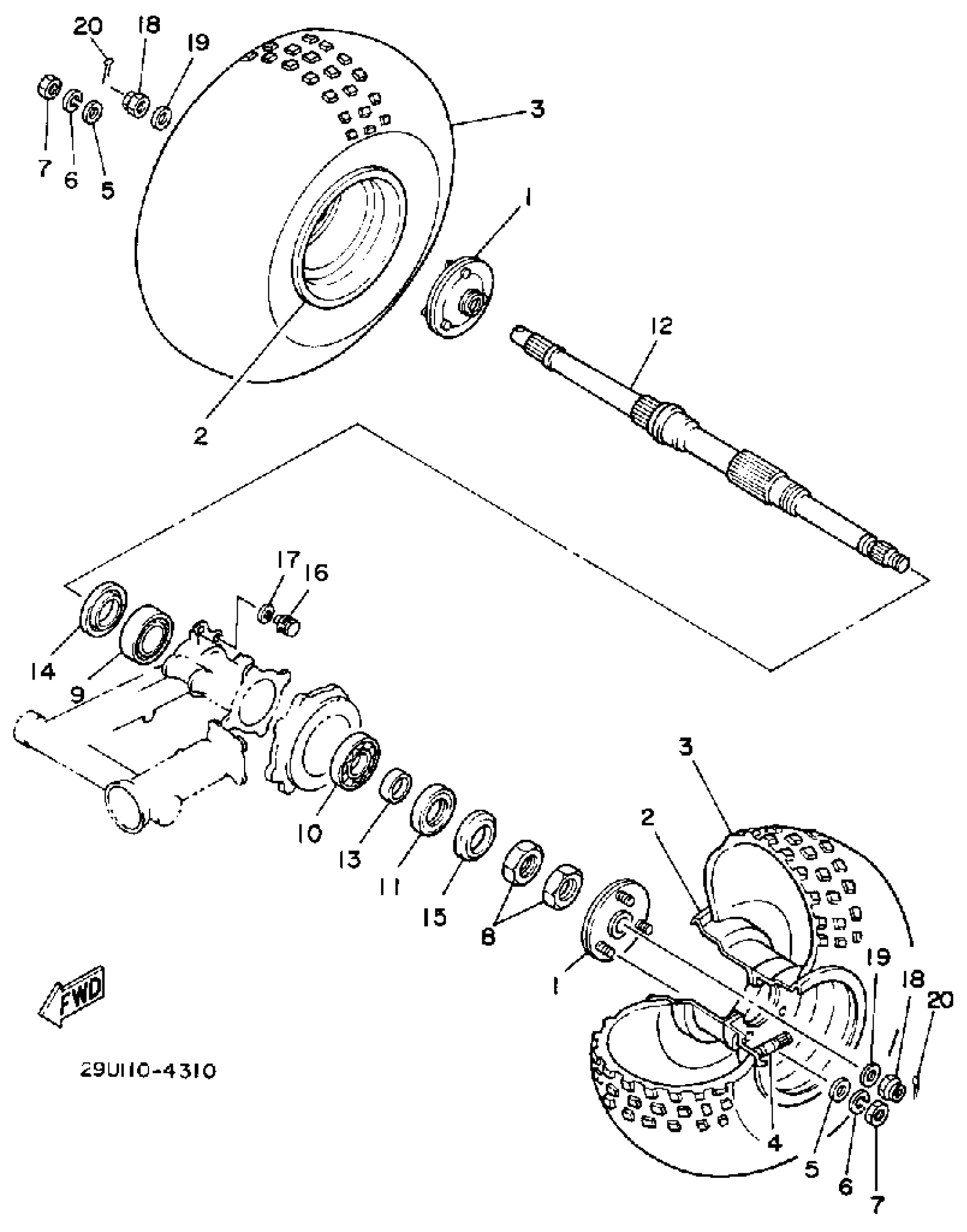

Yamaha YTM225DXN 1985 REAR WHEEL Diagram

#

Description
Price

1

COLLAR, WHEEL (3X3-25383-00)

5V7-25383-00-00

Unavailable

2

WHEEL, REAR

29U-25390-00-35

Unavailable

3

22X11-8 KT755 DUN.

94111-083H6-00

Unavailable

4

VALVE, RIM(2GH)

93900-00030-00

$16.99

5

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

6

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

7

NUT(3BM)

95314-10600-00

$2.39

8

NUT, SPECL SHAPE

90179-40419-00

Unavailable

9

BEARING (24W)

93399-99913-00

Unavailable

10

BEARING

93306-00803-00

Unavailable

11

OIL SEAL (21V)

93102-46274-00

Unavailable

12

AXLE, WHEEL

29U-25381-00-00

Unavailable

13

COLLAR, AXLE

24W-25386-00-00

Unavailable

14

COVER, HUB DUST

24W-25367-00-00

Unavailable

15

COVER, HUB DUST

21V-25367-00-00

Unavailable

16

BOLT, WITH WASHER

90119-10098-00

Unavailable

17

WASHER, PLATE (29U)

90201-104G0-00

Unavailable

18

NUT, CASTLE (29U)

90171-14037-00

Unavailable

19

WASHER, PLATE

90201-140A6-00

Unavailable

20

PIN, COTTER

91490-30030-00

Unavailable
