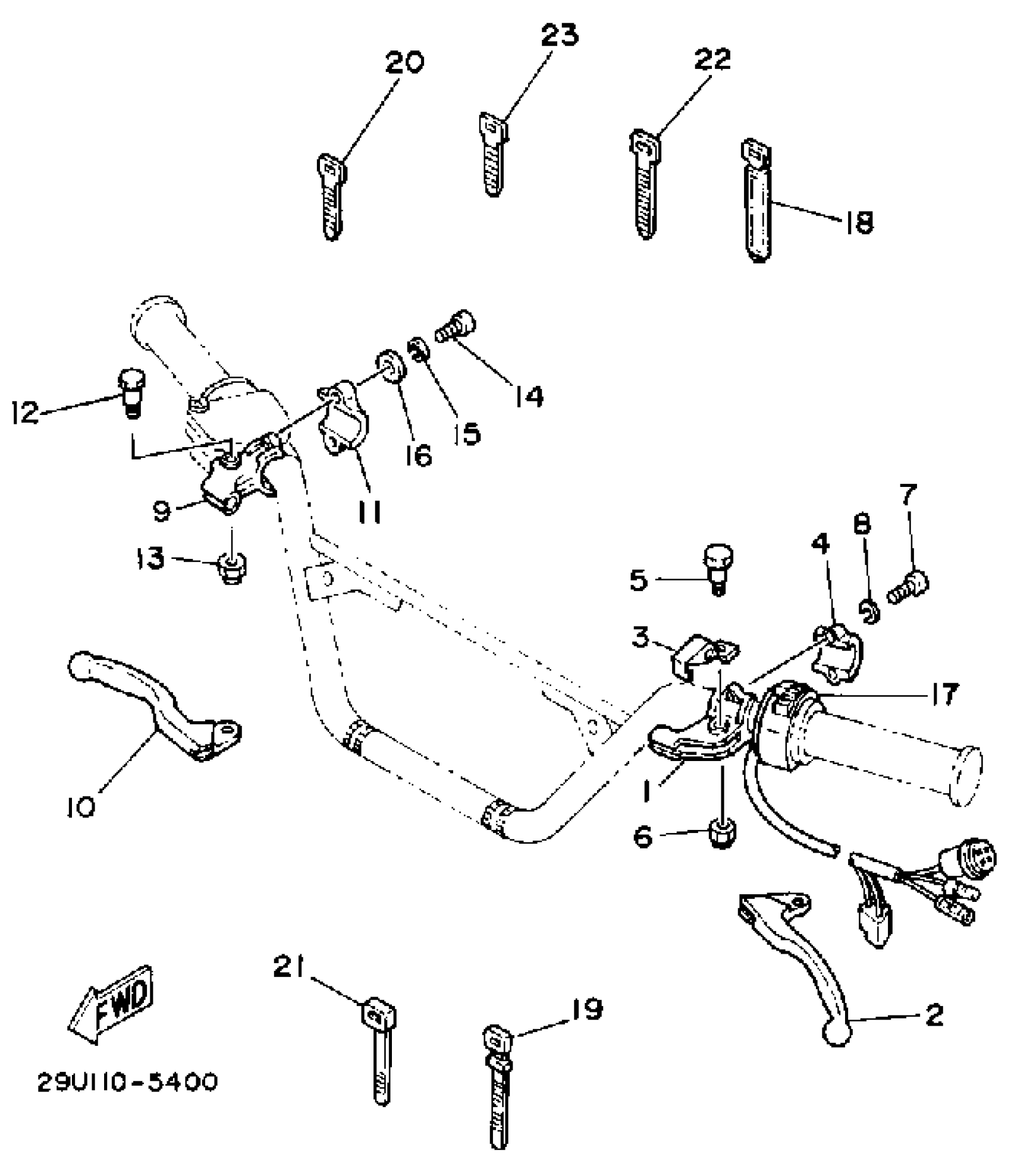

Yamaha YTM225DXN 1985 HANDLE SWITCH-LEVER Diagram

#

Description
Price

1

H0LDER, LEVER 1

38V-82911-00-00

$32.49

2

LEVER 1

23X-83912-02-00

$20.03

3

LEVER, LOCK

3X3-83965-00-00

$25.97

4

H0LDER, LEVER L0WER 1

38V-82913-00-00

$17.82

5

BOLT(1FG)

90109-06798-00

$5.84

6

NUT, SELF-LOCKING

95617-06100-00

$2.17

7

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.31

8

WASHER(3SX)

92907-05100-00

$5.76

9

H0LDER, LEVER 2

38V-82921-00-00

$35.10

10

LEVER R

23X-83922-01-00

$20.29

11

H0LDER, LEVER L0WER 1

38V-82913-00-00

$17.82

12

BOLT(3GB)

90109-061F3-00

$4.51

13

NUT, SELF-LOCKING

95617-06100-00

$2.17

14

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.31

15

WASHER(3SX)

92907-05100-00

$5.76

16

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

17

SWITCH, HANDLE 3

29U-83973-08-00

Unavailable

18

BAND

341-26397-01-00

Unavailable

19

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

20

BAND, SWITCH CORD

437-83936-01-00

Unavailable

21

BAND

1UA-82591-00-00

Unavailable

22

BAND, SWITCH CORD

437-83936-11-00

Unavailable

23

UNAVAILABLE IN PRICE BOOK

437-83393-61-00

Unavailable
