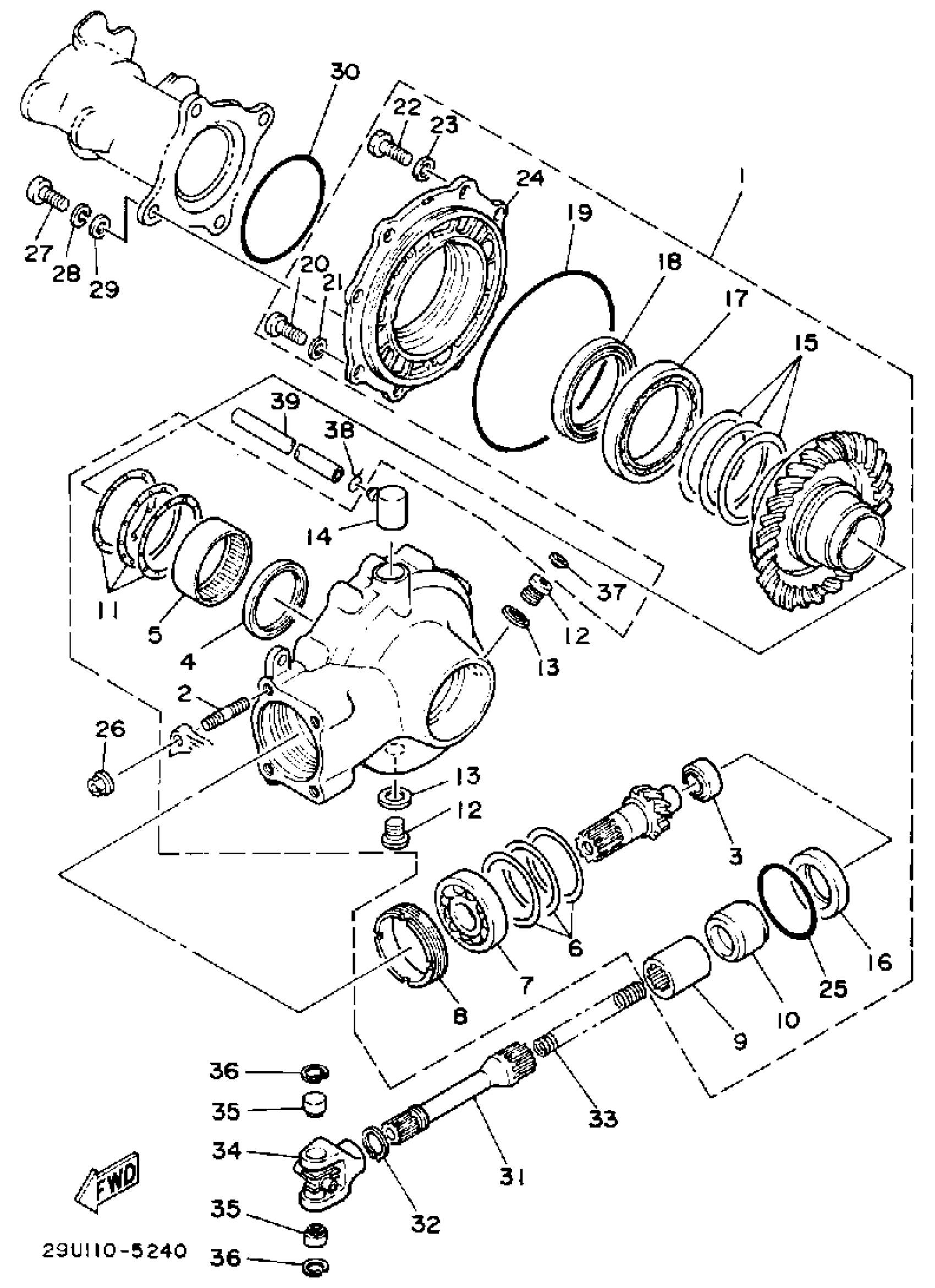

Yamaha YTM225DXN 1985 DRIVE SHAFT Diagram
#
1
R.AXLE GEAR CS.ASSEMBLYCASE ASSEMBLY
29U-46101-01-00
Unavailable
3
. BEARING ASSY
24W-46102-00-00
Unavailable
10
COLLAR (24W)
90387-255H9-00
Unavailable
11
WASHER, THRUST
24W-46118-00-12
Unavailable
11
WASHER, THRUST
24W-46118-00-16
Unavailable
11
WASHER, THRUST
24W-46118-00-18
Unavailable
11
WASHER, THRUST
24W-46118-00-20
Unavailable
12
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
13
GASKET
214-11198-01-00
Unavailable
14
BREATHER
2H7-17591-01-00
Unavailable
15
. SHIM, RING GEAR (025T)
24W-46117-00-25
Unavailable
15
. SHIM, RING GEAR (030T)
24W-46117-00-30
Unavailable
15
. SHIM, RING GEAR (040T)
24W-46117-00-40
Unavailable
15
. SHIM, RING GEAR (050T)
24W-46117-00-50
Unavailable
16
OIL SEAL (4H7)
93101-38098-00
Unavailable
17
BEARING, CYLINDRICAL (22U)
93316-01301-00
Unavailable
18
OIL SEAL (22U)
93102-65277-00
Unavailable
19
O-RING (1J7)
93211-44348-00
Unavailable
20
BOLT (682)
97013-08025-00
Unavailable
21
.. WASHER, PLATE
92990-08600-00
Unavailable
22
BOLT(6TD)
97017-10025-00
Unavailable
23
WASHER, PLATE
92990-10600-00
Unavailable
24
HOUSING, BEARING
(29U-46152-00-00)
Unavailable
25
O-RING (11H)
93210-59531-00
Unavailable
26
NUT, FLANGE
95704-08500-00
Unavailable
27
BOLT(6TD)
97017-10025-00
Unavailable
28
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
29
WASHER, PLATE
92990-10600-00
Unavailable
30
O-RING (173)
93210-85075-00
Unavailable
31
SHAFT, DRIVE
29U-46172-01-00
Unavailable
32
CIRCLIP(1AR)
99009-20400-00
Unavailable
33
SPRING, COMPRESSION
90501-16780-00
Unavailable
34
CROSS JOINT (29U-46180-01)
29U-46180-02-00
Unavailable
35
BEARING
93399-99920-00
Unavailable
36
CIRCLIP(24H)
99009-17500-00
Unavailable
37
CAP, BOLT (371,447)
341-23469-00-00
Unavailable
38
CLIP (1J7)
90467-07029-00
Unavailable
39
HOSE (L1700)
90445-070G6-00
Unavailable
