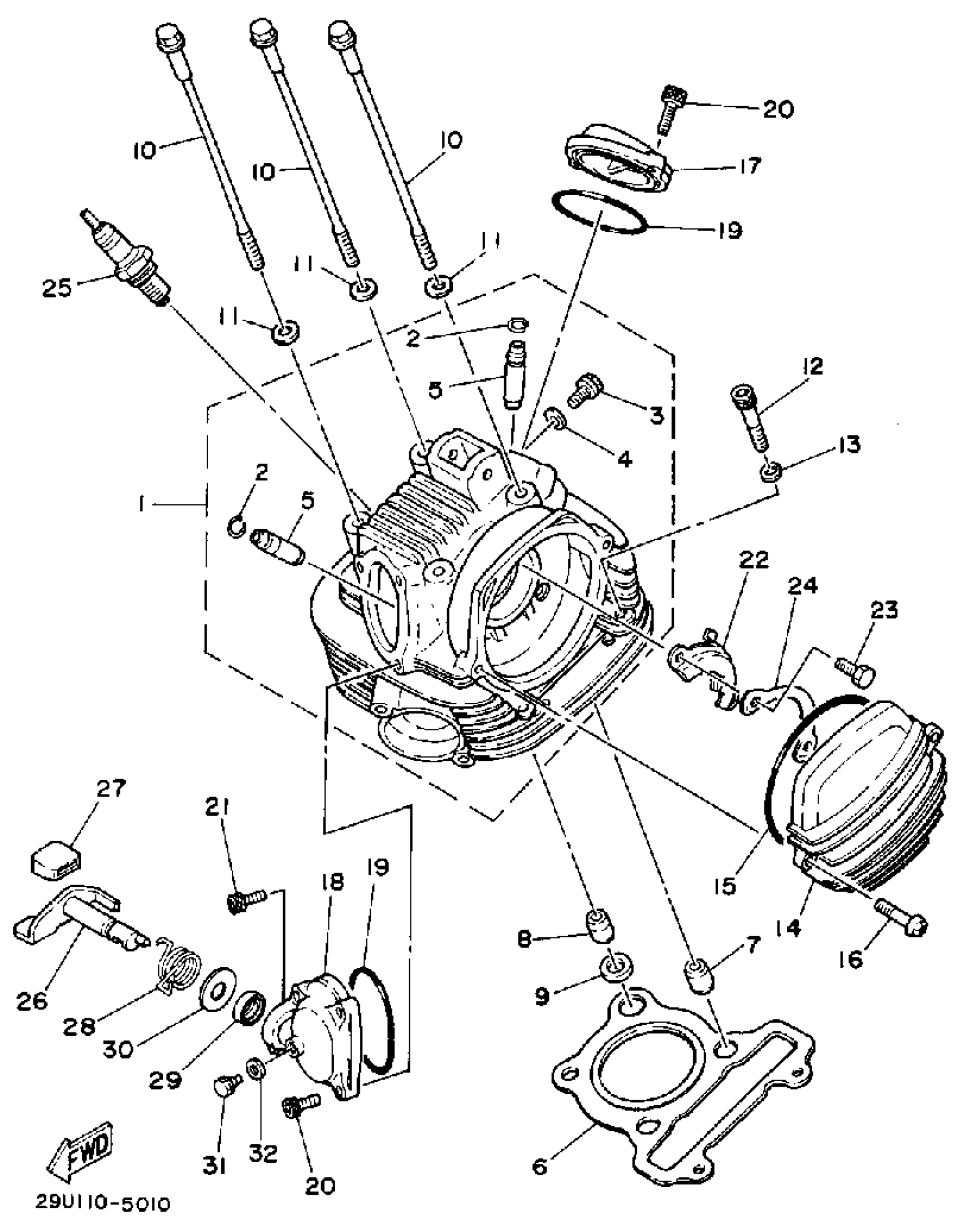

Yamaha YTM225DXN 1985 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

15A-11110-04-00

$681.99

2

CIRCLIP (4G0)

93440-10085-00

$8.49

3

SCREW

90153-06029-00

$10.49

4

GASKET 256113960000

90430-06014-00

Unavailable

5

GUIDE, INTAKE VALVE

5H0-11133-11-00

$63.99

6

GASKET, CYLINDER HEAD 1

59V-11181-00-00

$38.99

7

PIN, DOWEL

99530-14016-00

$3.80

8

PIN, DOWEL

99530-12016-00

$4.89

9

GASKET (29U)

90430-12186-00

$14.99

10

BOLT, FLANGE

90105-08160-00

$7.49

11

WASHER, PLATE

90201-080L7-00

$4.82

12

BOLT, SOCKET

91317-08045-00

Unavailable

13

WASHER, PLATE(3LN)

90201-086M0-00

$8.49

14

COVER, CYLINDER HEAD SIDE 1

15A-11185-00-00

$70.99

15

O-RING (5H0)

93211-05471-00

$14.99

16

SCREW, PAN

98517-06020-00

Unavailable

17

COVER, CYLINDER HEAD SIDE 2

15A-11186-00-00

Unavailable

18

COVER, CYLINDER HEAD SIDE 3

21V-11187-01-00

Unavailable

19

O-RING

93210-57634-00

Unavailable

20

BOLT,SOCKET

91317-06018-00

Unavailable

21

BOLT,SOCKET

91317-06018-00

Unavailable

22

PLATE

5H0-1111F-00-00

Unavailable

23

BOLT (661)

97013-06012-00

Unavailable

24

WASHER, LOCK (5H0)

90215-06184-00

Unavailable

25

D7EA NGK SPLUG 10PK

D7E-A0000-00-00

Unavailable

26

CAM

24W-12288-00-00

Unavailable

27

COVER, LEVER

24W-12275-00-00

Unavailable

28

SPRING, TORSION

90508-12610-00

Unavailable

29

SEAL, OIL (30X)

93102-12321-00

Unavailable

30

WASHER

90201-12588-00

Unavailable

31

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

32

GASKET 256113960000

90430-06014-00

Unavailable
