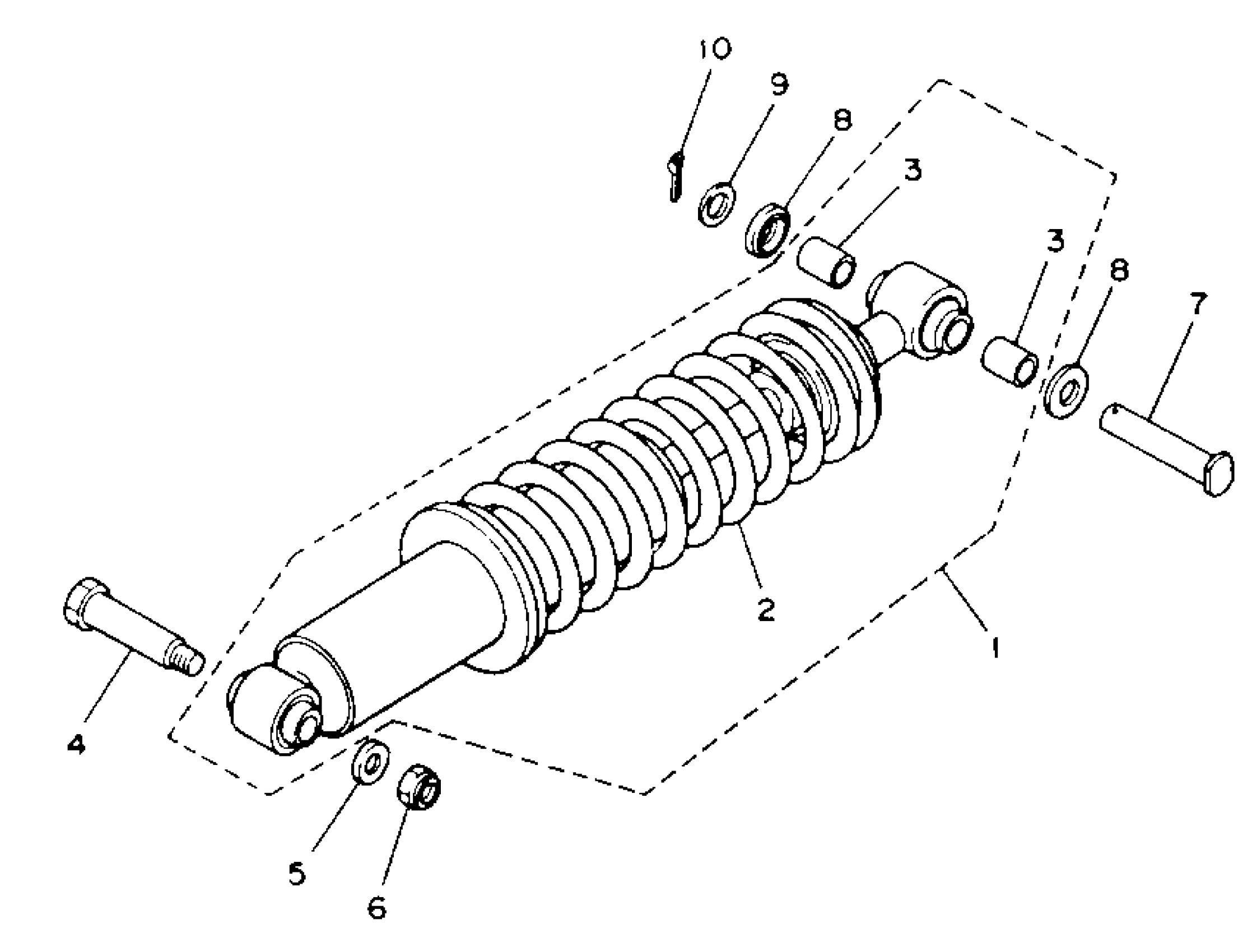

Yamaha YTM225DXK 1983 REAR SHOCKS Diagram

#

Description
Price

1

SHK/ABS ASSEMBLY, REARASSEMBLY, REAR

29U-22210-01-33

Unavailable

2

. SPRING 1

29-U2221-20-13

Unavailable

2

. SPRING 1

29-U2221-21-03

Unavailable

3

BUSH, SOLID (1M1)

90380-12051-00

$12.23

4

BOLT

90109-10736-00

Unavailable

5

WASHER, PLATE (26H)

90201-102G9-00

$5.96

6

NUT, U

95617-10100-00

$5.76

7

PIN, CLEVIS (10V)

90240-12092-00

$7.32

8

COVER, THRUST

1W1-22128-00-00

$16.83

9

WASHER, PLATE(663)

92990-12600-00

$6.22

10

PIN, COTTER

91490-30030-00

$6.88
