Partiron

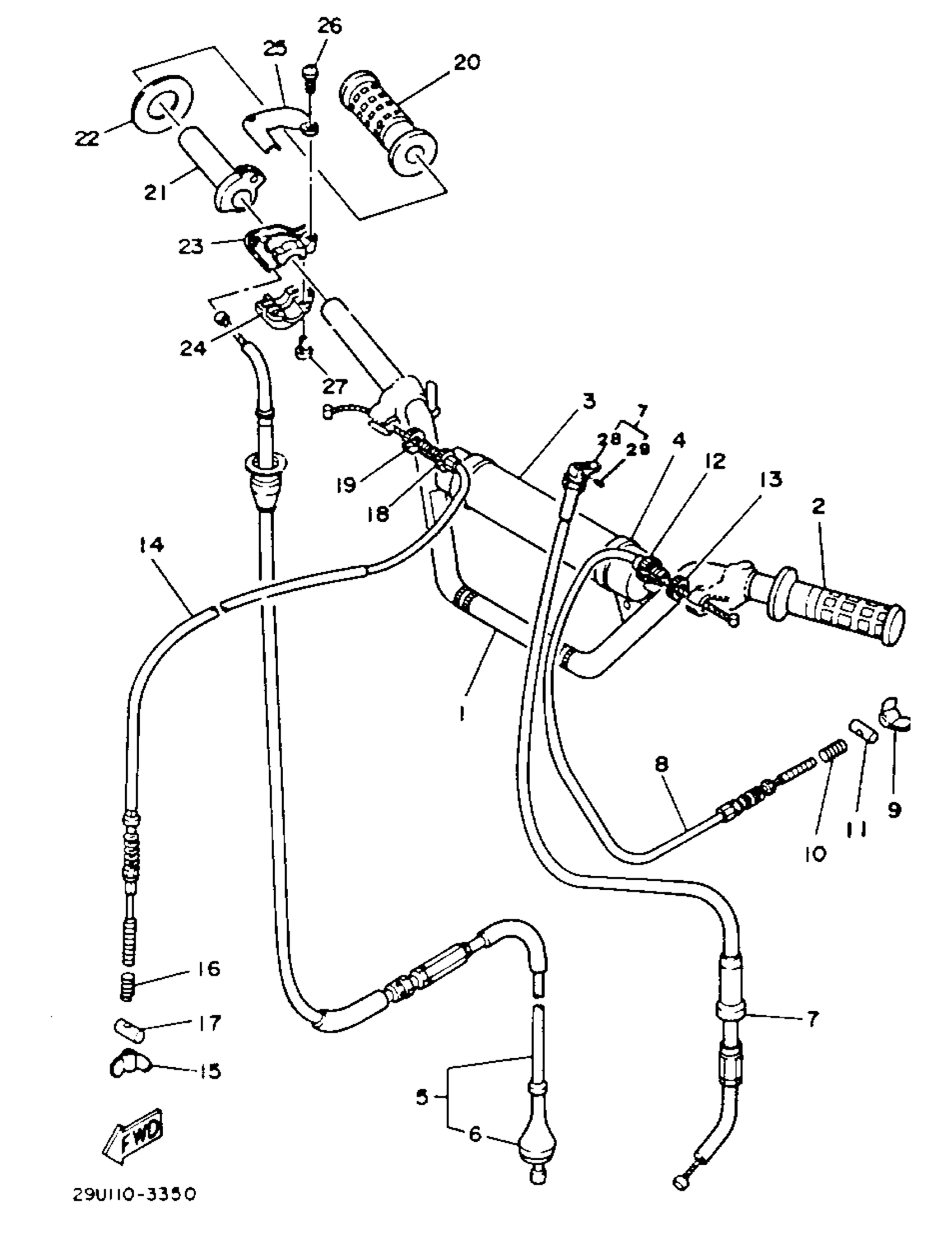

Yamaha YTM225DXK 1983 HANDLEBAR - CABLE (YTM225DXK) Diagram

#

Description
Price

1

HANDLEBAR

29U-26111-01-00

Unavailable

2

GRIP (L.H)

1LX-26241-01-00

$27.16

3

PROTECTOR, HDLBR

21V-26124-00-00

Unavailable

4

BAND, SWITCH CORD

437-83936-11-00

$3.34

5

CABLE, THROTTLE 1

29U-26311-00-00

Unavailable

6

. CAP, RUBBER

21V-26329-00-00

Unavailable

7

CABLE, STARTER 1

29U-26331-00-00

Unavailable

8

CABLE, BRAKE

29U-26341-00-00

Unavailable

9

NUT, AJUSTING

20E-26343-00-00

$20.80

10

SPRING, COMPRESSION (29U)

90501-10782-00

$5.75

11

PIN 1562723700

90249-12008-00

$5.75

12

BOLT

90123-08002-00

$8.57

13

NUT

90179-08030-00

$3.63

14

CABLE, BRAKE 4

29U-26373-00-00

Unavailable

15

NUT (25K)

90179-06411-00

$4.89

16

SPRING, COMPRESSION (29U)

90501-10782-00

$5.75

17

PIN 1562723700

90249-12008-00

$5.75

18

BOLT

90123-08002-00

$8.57

19

NUT

90179-08030-00

$3.63

20

GRIP (R.H)

1LX-26242-01-00

Unavailable

21

TUBE, THROTTLE GUIDE

22W-26243-00-00

Unavailable

22

RING, LEAF

1W1-26249-00-00

Unavailable

23

CAP, GRIP UPPER

5X2-26281-00-00

Unavailable

24

CAP, GRIP UNDER

322-26282-00-00

Unavailable

25

CAP, WIRE

5X2-2628H-01-00

Unavailable

26

SCREW, FLAT

98707-04012-00

Unavailable

27

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

28

LEVER

21V-26374-00-00

Unavailable

29

PIN, SPRING (663)

91690-30010-00

$5.53
