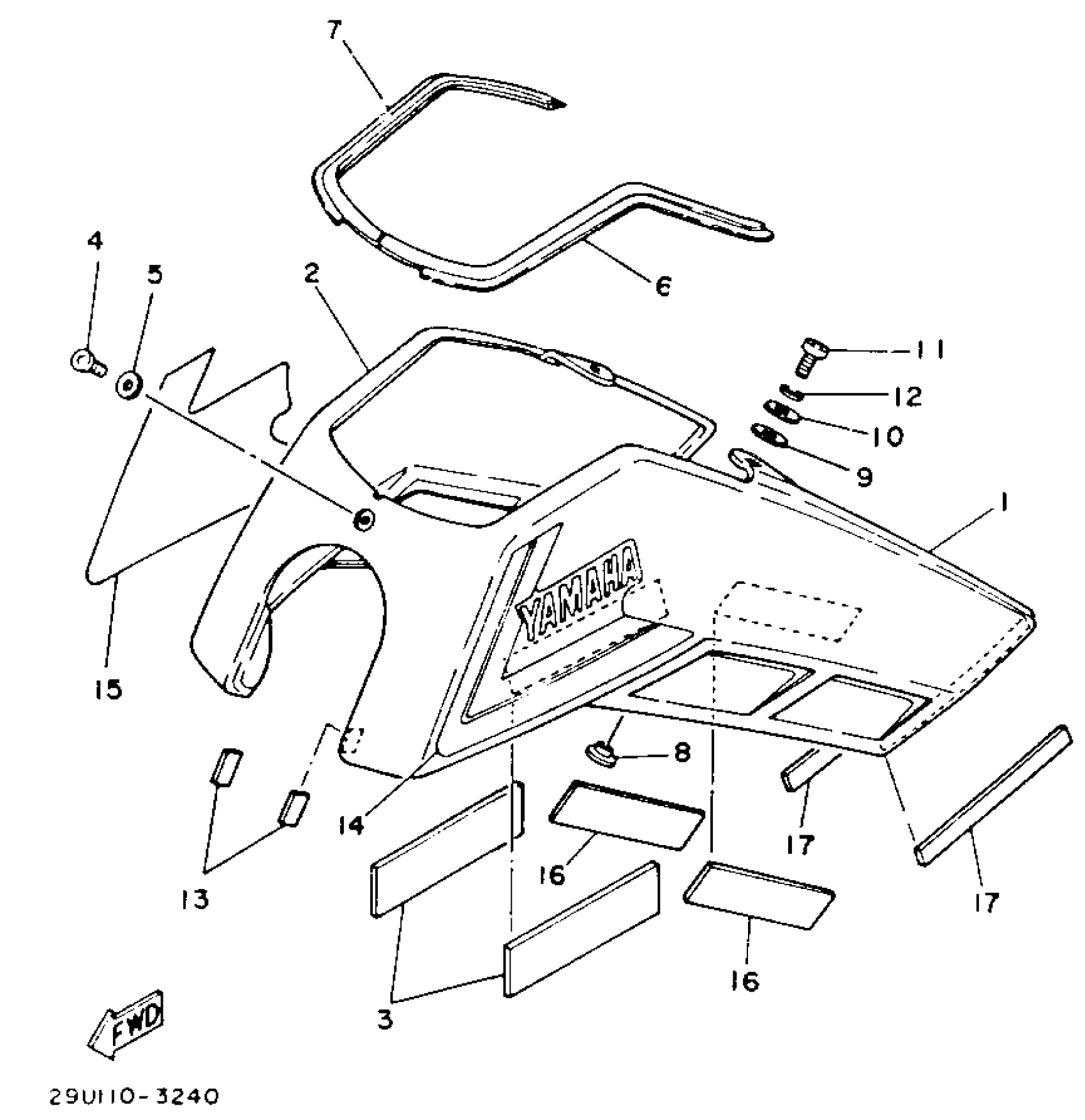

Yamaha YTM225DXK 1983 REAR FENDER (YTM225DXK) Diagram

#

Description
Price

1

SIDE COVER 1

29U-W2176-00-00

Unavailable

2

SIDE COVER 2

29U-W2177-00-00

Unavailable

3

DAMPER

3X-32174-60-00

Unavailable

4

SCREW, BIND(J45)

98980-06012-00

$5.75

5

WASHER PLATE 256216150000

90201-06062-00

$6.62

6

MOLD, SIDE COVER 1

29U-2171L-00-00

Unavailable

7

MOLD, SIDE COVER 2

29U-2171M-00-00

Unavailable

8

COLLAR (3Y2)

90387-07789-00

$5.66

9

WASHER, PLATE

90201-104G5-00

Unavailable

10

WASHER, PLATE

90201-06086-00

$5.47

11

SCREW PAN HEAD

98580-06020-00

$4.89

12

WASHER, SPRING

92995-06100-00

$2.95

13

DAMPER, side cover

29-U2171-70-00

Unavailable

14

EMBLEM 1

29U-21781-00-00

Unavailable

15

EMBLEM 2

29U-21782-00-00

Unavailable

16

DAMPER

29-U2174-60-00

Unavailable

17

DAMPER 2

3FA-21639-00-00

Unavailable
